YCM NDC2016B

Q: How much does the YCM NDC2016B cost?

The price estimate for the YCM NDC2016B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-ndc2016b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

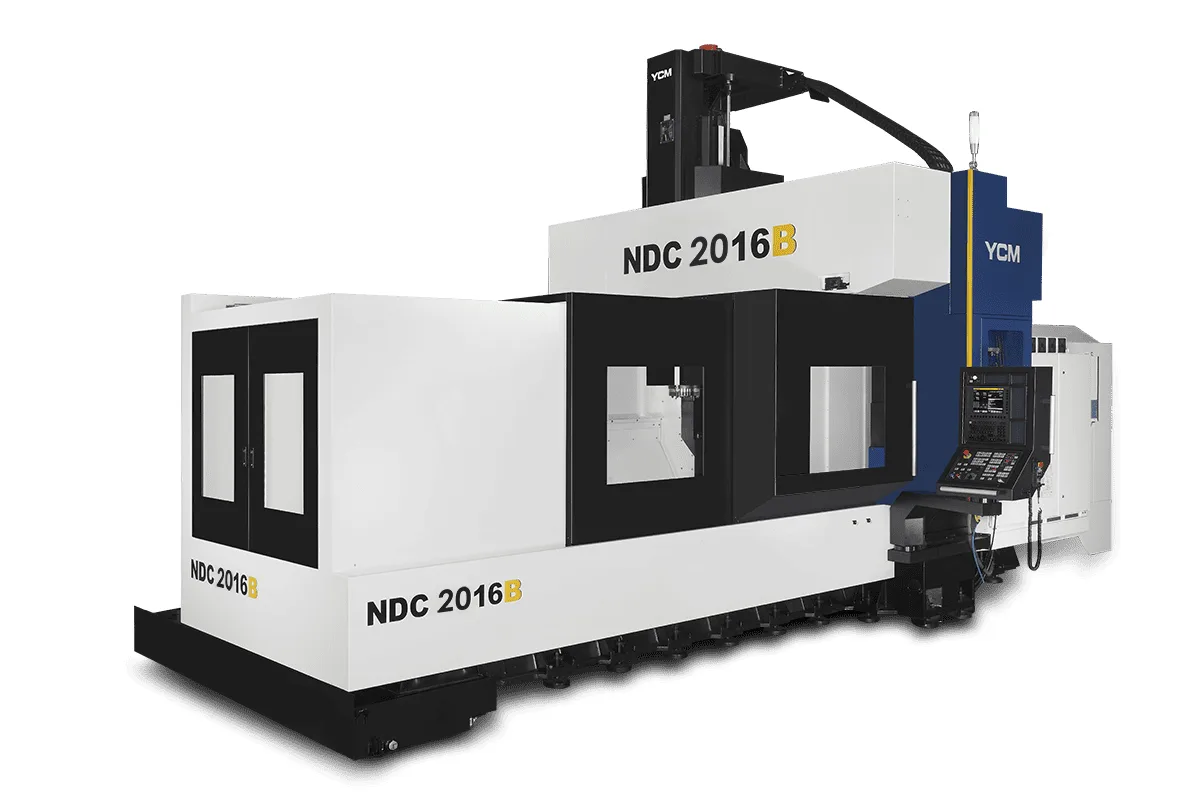

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

GB: 6,000 (IDD: 10,000) rpm

Spindle Taper

BBT50

Tool Capacity

32 tools; opt. 40 / 60 / 120 tools

Table Size

2,000 x 1,500 mm (78.74 x 59.06 in)

Spindle Power

35 kW (46.9 hp); opt. 45 kW (60.3 hp)

x axis travel

2,200 mm (86.61 in)

How much does the YCM NDC2016B cost?

Price estimate

Uncertain

We do not have a price for the YCM NDC2016B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM NDC2016B is the smallest machine in the NDC double-column series: 2,200 mm (86.61 in) of X travel, 1,600 mm (62.99 in) of Y and 1,800 mm (70.87 in) between the columns, with a BBT50 spindle. The table is 2,000 x 1,500 mm (78.74 x 59.06 in) and carries 8,000 kg (17,637 lb).

YCM mixes guideway types by axis. X and Y run on roller type linear guideways for low friction and speed; Z, the axis that takes the cutting thrust, is a boxway for damping. The base is ribbed in an A pattern with multiple support points and holds the table over its whole stroke, and each column is a single casting.

The speed row reads GB: 6,000 (IDD: 10,000), that is, a 6,000 rpm gearbox spindle as standard and a 10,000 rpm direct-drive spindle as the alternative. Power is 35 kW (46.9 hp), or 45 kW (60.3 hp) as an option. The choice is the familiar one between low-speed torque for steel and speed for finishing and aluminium.

Z travel is 762 mm (30 in), or 1,016 mm (40 in) as an option, and the column can be raised by 250 mm; the spindle nose to table row lists the resulting ranges for each combination. Rapids are 20 m/min in X and Y and 15 m/min in Z. The magazine holds 32 tools, with 40, 60 or 120 optional, each up to 20 kg (44.1 lb). Dual chip augers with a conveyor clear the table sides. The machine weighs 22,000 kg (48,501 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	GB: 6,000 (IDD: 10,000) rpm
Spindle Motor Power	35 kW (46.9 hp); opt. 45 kW (60.3 hp)
Spindle Taper	BBT50
X Axis Travel	2,200 mm (86.61 in)
Y Axis Travel	1,600 mm (62.99 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Nose to Table	200~962 [30"Standard] (450~1,212) [30"Raised 250] (200~1,216) [40"Raised 250] mm
Distance Between Columns	1,800 mm (70.87 in)
Table Size	2,000 x 1,500 mm (78.74 x 59.06 in)
T-Slots	8 x 22 x 180 mm (8 x 0.87 x 7.09 in)
Max Table Load	8,000 kg (17,637 lb)
Rapid Traverse Xyz	20/20/15 m/min (787/787/591 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	32 tools; opt. 40 / 60 / 120 tools
Max Tool Weight	20 kg (44.1 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	22,000 kg (48,501 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

8,000 kg (17,637 lb) table load on a 2,000 x 1,500 mm (78.74 x 59.06 in) table
Roller type linear guideways on X and Y with a damping boxway on Z
Choice of 6,000 rpm gearbox spindle or 10,000 rpm IDD spindle
Optional 1,016 mm (40 in) Z travel and raised column
Magazine options up to 120 tools

Limitations

Standard Z travel is 762 mm (30 in)
Z rapid is 15 m/min, slower than X and Y
Cutting feed is limited to 10,000 mm/min (394 ipm)
A 22,000 kg (48,501 lb) machine needs a foundation

Best For

Mold bases, die sets and plates up to 2,000 x 1,500 mm Heavy parts up to 8,000 kg (17,637 lb) Shops moving up from a large C-frame machine to their first bridge mill

Frequently Asked Questions

01 What are the travels of the NDC2016B?

X travel is 2,200 mm (86.61 in) and Y travel is 1,600 mm (62.99 in). Z travel is 762 mm (30 in) as standard and 1,016 mm (40 in) as an option. The distance between columns is 1,800 mm (70.87 in).

02 What do GB and IDD mean in the spindle speed row?

The row reads GB: 6,000 (IDD: 10,000) rpm. GB is the gearbox spindle at 6,000 rpm and IDD is YCM's direct-drive spindle at 10,000 rpm. Spindle power is 35 kW (46.9 hp), with 45 kW (60.3 hp) optional, on a BBT50 taper.

03 How is the machine built?

It has an A-ribbed base with multiple supporting points, a table fully supported by the base, one piece columns and a wide span saddle. X and Y use roller type linear guideways, and Z is a high damping boxway.

04 What is the next size up?

The NDC3016B, with 3,200 mm (125.98 in) of X travel, a 3,000 x 1,500 mm (118.11 x 59.06 in) table rated for 10,000 kg (22,046 lb) and a weight of 26,000 kg (57,320 lb). Y travel and column spacing are the same.
