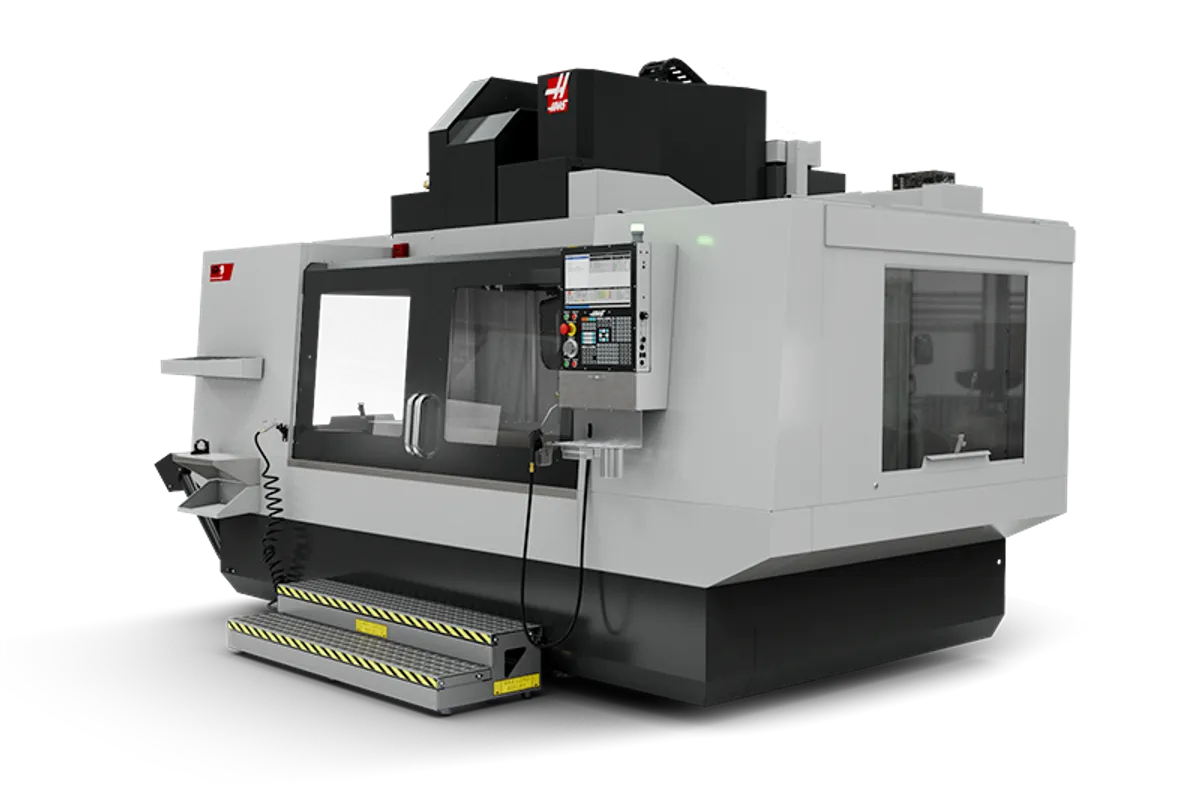

Haas VR-9

$449,000 - $530,000 Updated 2026-03-19

Key Specifications

X Travel

1,626 mm (64 in)

Y Travel

1,016 mm (40 in)

Z Travel

762 mm (30 in)

Max Spindle

20,000 RPM

Spindle Taper

HSK-A63

Tool Capacity

50+1 SMTC

Overview

The Haas VR-9 is a mid-range 5-axis gantry-style machining center with a tilting spindle head, positioned between the compact VR-5 and the larger VR-8 in both travel envelope and price. With 1,626 x 1,016 x 762 mm (64 x 40 x 30 in) of linear travel plus a +/-120-degree B axis (tilt) and +/-245-degree C axis (rotation), the VR-9 provides the same X and Y envelope as the VR-8 but with a deeper 30-inch Z-axis travel for reaching into deeper parts.

The spindle matches the entire VR series: an integral spindle/motor design running at 20,000 RPM with 21.6 kW (29 hp) and 27 Nm (20 ft-lbf) of torque at 7,500 RPM on an HSK-A63 taper. The liquid-cooled motorized spindle delivers precise high-speed contouring for aluminum aerospace components, composite parts, and complex mold surfaces. The B axis provides 639 Nm (470 ft-lbf) continuous torque and the C axis delivers 386 Nm (285 ft-lbf) continuous — the same head as all VR machines.

The table measures 1,626 x 914 mm (64 x 36 in) with 7 T-slots and handles up to 2,268 kg (5,000 lb). The 50+1 SMTC is standard, providing extensive tooling capacity for complex multi-tool 5-axis programs. Rapid traverse of 15.2 m/min (600 ipm) on all axes is consistent across the VR series.

At approximately $449,000 base price, the VR-9 occupies the middle ground between the $299K VR-5 and the $419K VR-8 (and $499K VR-11). The VR-9 provides the same X/Y working area as the VR-8 with a 30-inch Z instead of 42-inch, at a slightly higher price but with a 5,000 lb table load versus the VR-8's 4,000 lb. For shops that need the 64 x 40 inch envelope with deeper Z reach but can work within 30 inches of Z travel, the VR-9 is the appropriate choice.

Full Specifications

Parameter	Value
X-Axis Travel	1,626 mm (64 in)
Y-Axis Travel	1,016 mm (40 in)
Z-Axis Travel	762 mm (30 in)
Axes	5-axis (X, Y, Z + B tilt + C rotation)
B Axis Travel	+/-120 degrees
B Axis Speed	112 deg/sec
B Axis Torque	639 Nm (470 ft-lbf) continuous
B Axis Brake Torque	616 Nm (454 ft-lbf)
C Axis Travel	+/-245 degrees
C Axis Speed	208 deg/sec
C Axis Torque	386 Nm (285 ft-lbf) continuous
C Axis Brake Torque	600 Nm (442 ft-lbf)
Max Spindle Speed	20,000 RPM
Spindle Taper	HSK-A63
Spindle Motor Power	29.0 hp
Spindle Torque Max	27 Nm (20 ft-lbf) @ 7,500 RPM
Spindle Drive	Integral Spindle/Motor
Spindle Cooling	Liquid Cooled
Tool Capacity	50+1 SMTC
Tool To Tool	2.80 s
Chip To Chip	3.60 s
Max Tool Diameter	2.5 in
Max Tool Weight	12.0 lb
Table Size	1,626 x 914 mm (64 x 36 in)
Table Load Max	2,268 kg (5,000 lb)
T Slots	7 slots, 125 mm (4.92 in) center distance
Max Cutting Feedrate	12.7 m/min (500 ipm)
Rapid Traverse X	15.2 m/min (600 ipm)
Rapid Traverse Y	15.2 m/min (600 ipm)
Rapid Traverse Z	15.2 m/min (600 ipm)
Machine Weight	13,154 kg (29,000 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Travels	S.A.E
X Axis	84.00 in
Y Axis	40.00 in
Z Axis	42.00 in
Spindle	S.A.E
Max Rating	29.0 hp
Max Speed	208 °/sec
Max Torque	20.0 ft-lbf @ 7500 rpm
Drive System	Integral Spindle/Motor
Taper	HSK-A63
Bearing Lubrication	Grease Packed
Cooling	Liquid Cooled
B Axis Tilt	S.A.E
Travel	245 ° to 245- °
Torque	285 ft-lbf
Brake Torque	442 ft-lbf
C Axis Rotation	S.A.E
Table	S.A.E
Length	84.0 in
Width	36.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.92 in
Number Of Std T Slots	7
Max Weight On Table	4000 lb
Feedrates	S.A.E
Max Cutting	500 ipm
Rapids On X	600 ipm
Rapids On Y	600 ipm
Rapids On Z	600 ipm
Axis Motors	S.A.E
Max Thrust X	3400 lbf
Max Thrust Y	3400 lbf
Max Thrust Z	5600 lbf
Tool Changer	S.A.E
Type	SMTC
Capacity	50+1
Max Tool Diameter Large	5.0 in
Max Tool Length	12.00 in
General	S.A.E
Air Requirements	S.A.E
Air Required	4 scfm @ 100 psi
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	214.0 in x 120.0 in x 142.0 in
Export Crate	214.0 in x 123.0 in x 144.0 in
Machine Weight	28300 lb
Domestic Pallet W Ec Option	214 in x 120 in x 143 in
Export Crate W Ec Option	214 in x 123 in x 147 in
Weight W Ec Option	28700 lb
Symptom	Possible Cause
Coolant Has Filled Up Inside The Clamping Unit	TSC was run. The tool holder had a coolant tube installed. The tool was not a TSC tool.
Tsc Was Run A Coolant Tube Was Not Installed In The Tool Holder	Clean and lubricate the entire clamping unit.
Tsc Was Run A Correct Tool Holder And Tool Were Used The Lip Seal Is Damaged	Replace the lip seal. Clean and lubricate the entire clamping unit.
The Coolant Tube Is Loose In The Tool Holder Or The O Ring In The Coolant Tube Had Failed	Tighten the coolant tube, replace the o-ring as needed. Clean and lubricate the entire clamping unit.
The Clamping Cone Locking Screw Is Difficult To Tighten Or Loosen While Setting Pushout	The locking screw is installed backwards.
The Hex In The Locking Screw Is Damaged	Remove the clamping cone. Remove the locking screw and replace it. Install the clamping cone and set pushout.
Clamp Force Is Low	Clamp force gauge is not set up properly or is malfunctioning.
Pushout Is Incorrect	Adjust clamping cone positon to obtain the correct pushout distance.
Lubrication Is Failing	Lubricate the clamping unit gripper fingers and clamping cone.
Clamping Unit Components Are Worn	If pushout and lubrication are correct, inspect the clamping cone and gripper fingers for wear. Replace as needed.
Drawbar Springs Have Failed	This is very unlikely. Do not assume this is the cause unless all other solutions have failed.
Tool Holders Are Hard To Remove From The Taper	Pushout is set too low. (When pushout is set too low clamp force may measure very high).
Z Axis Position Accuracy Is Inconsistent After Using A Probing System	The tool probe was not seated correctly.
Item	HAAS P/N

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

Same 64 x 40 inch X/Y envelope as VR-8 with deeper 30-inch Z travel for reaching into part cavities
Full 5-axis simultaneous capability with the same tilting spindle head as all VR series machines
20,000 RPM HSK-A63 spindle provides excellent high-speed finishing for aluminum and composites
5,000 lb table load capacity handles heavy workpieces and robust fixturing setups
50+1 SMTC standard provides extensive tooling for complex programs
Competitive pricing versus European 5-axis gantry machines with similar capabilities

Limitations

27 Nm of spindle torque limits heavy roughing capability — optimized for high-speed finishing
600 ipm rapids across the large envelope result in significant non-cutting positioning time
29,000 lb weight requires substantial foundation preparation and rigging for installation
NGC control for 5-axis is functional but lacks the advanced RTCP features of Siemens or Heidenhain
30-inch Z travel is less than the VR-8's 42-inch for tall part geometries

Best For

Aerospace manufacturers machining large aluminum structural components with complex 5-axis surfaces Large mold and die shops producing complex cavity molds and trim dies requiring multi-angle access Pattern and fixture shops working on large one-off pieces with complex 5-axis geometry Composite trimming and machining for aerospace and automotive applications up to 64 inches Shops needing VR-8 X/Y capacity with deeper Z reach for cavity-style workpieces

Frequently Asked Questions

01 What does a Haas VR-9 cost?

Base price is approximately $449,000 with the 50+1 SMTC included. With through-spindle coolant, probing, and options, expect $490,000-$530,000.

02 How does the VR-9 compare to the VR-8?

Both share the same X (64 in) and Y (40 in) travel, spindle, and rotary axes. The VR-9 has 30-inch Z travel versus the VR-8's 42-inch, 5,000 lb table load versus 4,000 lb, and weighs 29,000 lb versus 24,800 lb. The VR-9 is better for cavity-style work where you need X/Y reach; the VR-8 when you need more Z height.

03 Is the VR-9 a true simultaneous 5-axis machine?

Yes. The NGC control supports simultaneous 5-axis interpolation with the B and C rotary axes. The tilting spindle head design provides full access to complex 3D surfaces from virtually any angle within the B and C axis ranges.

04 Can the VR-9 machine steel?

The VR-9 can machine steel, but the 20,000 RPM spindle with 27 Nm of torque is designed for high-speed finishing rather than heavy steel roughing. Keep roughing passes light in steel, or rough on a 3-axis machine and finish on the VR-9. The machine excels in aluminum and composite applications.
