Vision Wide Vertical Machining Centers (VMC)

Vision Wide VF-3000

Q: How much does the Vision Wide VF-3000 cost?

The price estimate for the Vision Wide VF-3000 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-vf-3000#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

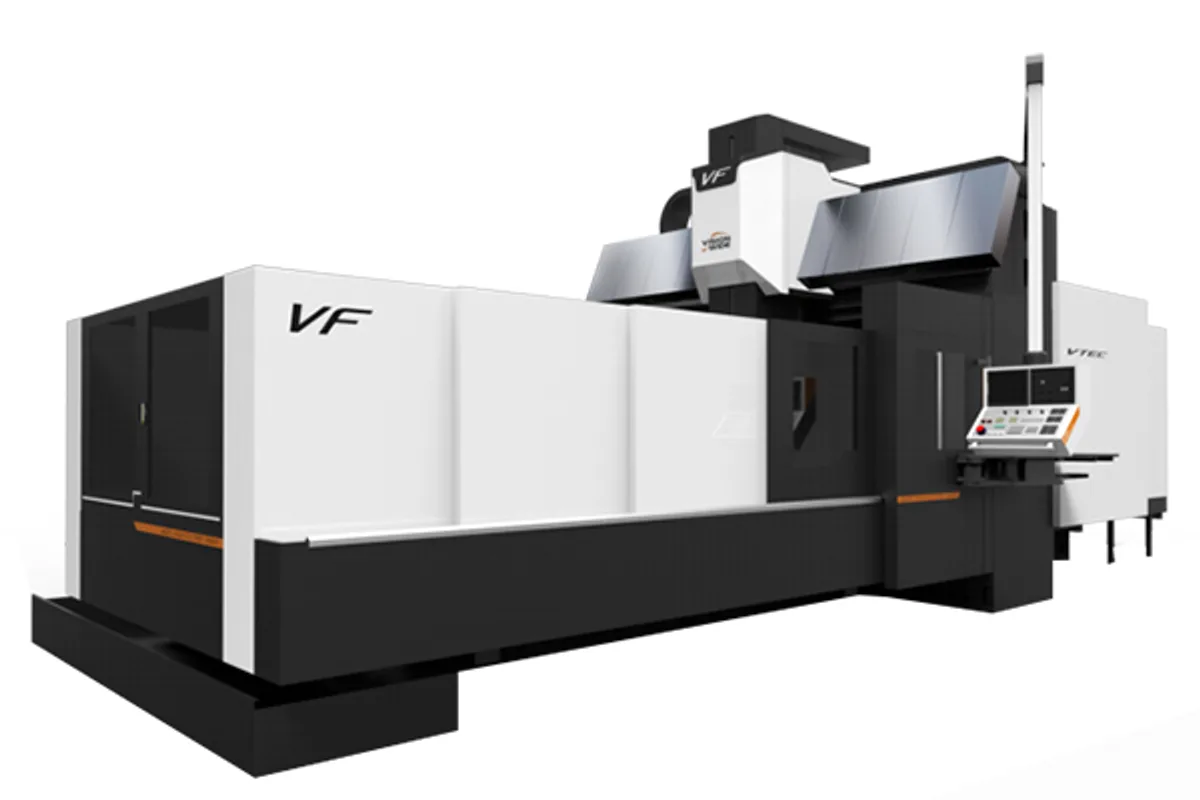

Image: visionwide-tech.com, Vision Wide

Key Specifications

Tool Capacity

40/60 pcs(Opt.)

Table Size

3,200x2,050 mm (126.0x80.7 in)

x axis travel

3,200 mm (126.0 in)

y axis travel

2,300 mm (90.6 in)

z axis travel

920/1,020 mm (36.2/40.2 in)(Opt.)

max table load

11,000 kg (24,250 lb)

How much does the Vision Wide VF-3000 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide VF-3000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A sloping beam is the signature of the Vision Wide VF-3000. Vision Wide says the unique design of the sloping beam brings the center of the Z axis close to the beam, which shortens the lever on which cutting forces act and lets a box way machine take a heavier cut for the same deflection.

The VF is the larger of the maker's two all-box-way double-column lines. This model has 3,200 mm (126.0 in) of X travel, 2,300 mm (90.6 in) of Y and a 3,200x2,050 mm (126.0x80.7 in) table that carries 11,000 kg (24,250 lb). Z travel is 920 mm, with 1,020 mm as an option.

Like its smaller relatives it is slow and strong by design. Rapid traverse is 12 m/min on X, Y and Z and cutting feed is 1-7,000 mm/min. The spindle is a 4,000 rpm two-step gear type as standard, 6,000 rpm as an option, on 18.5/22 kW (24.8/29.5 hp), with 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp) motors available.

It sits just above the VB-3020 in size; the VB-3020 has 3,100 mm (122.0 in) of X, 2,000 mm (78.7 in) of Y and a 3,100×1,700 mm (122.0×66.9 in) table for the same 11,000 kg.

Full Specifications

Parameter	Value
X Axis Travel	3,200 mm (126.0 in)
Y Axis Travel	2,300 mm (90.6 in)
Z Axis Travel	920/1,020 mm (36.2/40.2 in)(Opt.)
Table Size	3,200x2,050 mm (126.0x80.7 in)
Max Table Load	11,000 kg (24,250 lb)
Spindle Power Cont 30 Min	18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.) (30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed 2 Step Gear	4,000/6,000 rpm(Opt.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xyz	X/Y/Z:12 m/min
Tool Capacity	40/60 pcs(Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Sloping beam keeps the Z axis center close to the beam
Hardened box ways on all three axes
3,200x2,050 mm (126.0x80.7 in) table for 11,000 kg (24,250 lb)
Spindle motor options up to 30/37 kW (40.2/49.6 hp)

Limitations

Rapid traverse of 12 m/min on every axis
Cutting feed limited to 7,000 mm/min
Standard gear spindle speed of 4,000 rpm

Best For

Heavy roughing of large steel and iron parts Die blocks and machine frames up to 11,000 kg (24,250 lb) Wide plates up to 2,050 mm (80.7 in) across

Frequently Asked Questions

01 What is the sloping beam on the Vision Wide VF-3000?

It is the cross beam design of the VF series. Vision Wide says the unique design of the sloping beam enabled the center of the Z axis close to the beam, and that the spindle sits close to the Y box way to reduce the unbalanced cutting moment.

02 What are the VF-3000 travels and table size?

X travel 3,200 mm (126.0 in), Y travel 2,300 mm (90.6 in), Z travel 920 mm or optionally 1,020 mm. The table is 3,200x2,050 mm (126.0x80.7 in) and carries 11,000 kg (24,250 lb).

03 How does the VF-3000 compare with the VB-3020?

The VB-3020 has a 3,100×1,700 mm (122.0×66.9 in) table and 2,000 mm (78.7 in) of Y. The VF-3000 has a 3,200x2,050 mm (126.0x80.7 in) table and 2,300 mm (90.6 in) of Y. Both carry 11,000 kg (24,250 lb) and both use box ways.

04 How many tools does the VF-3000 hold?

The table lists 40/60 pcs(Opt.). A 40 tools magazine with arm type ATC is standard and a 60 tools magazine with arm type ATC is the option.
