YCM NSV106AS

Q: How much does the YCM NSV106AS cost?

The price estimate for the YCM NSV106AS is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-nsv106as#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

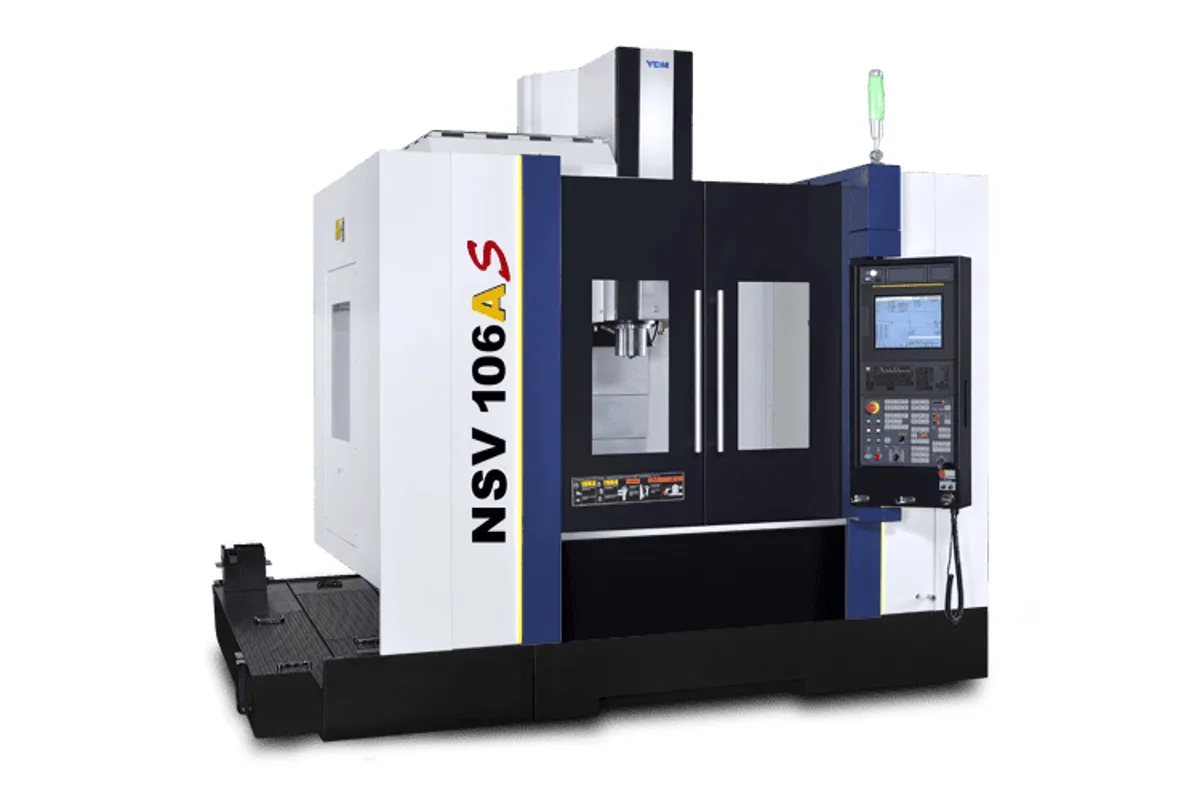

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

15,000 rpm

Spindle Taper

BBT40

Tool Capacity

30 tools; opt. 48 tools

Table Size

1,120 x 650 mm

Spindle Power

37 kW (50 HP)

x axis travel

1,020 mm (40.16 in)

How much does the YCM NSV106AS cost?

Price estimate

Uncertain

We do not have a price for the YCM NSV106AS that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A 37 kW (50 HP) spindle at 15,000 rpm is standard on the YCM NSV106AS, and that alone separates it from every other 40-taper machine of its size in YCM's list. The frame is the NSV106 one, with 1,020 mm (40.16 in) of X and 600 mm (23.62 in) of both Y and Z, but nearly every performance row is turned up.

All three axes rapid at 48 m/min (1,890 ipm); the NSV106A reaches that only on X and Y. The table rating is 1,000 kg (2,205 lb) where the NSV106A lists 700 kg (1,543 lb). The standard magazine is a 30-tool disk with a 48-tool chain magazine as the option, and an ATC door is standard.

Power at that speed makes heat, and YCM equips the machine for it. A spindle cooling unit limits thermal deformation of the headstock, and a micro oil-air lubrication system serves the bearings. Chips are the other by-product of 37 kW in aluminium. Here the standard arrangement is dual chip augers plus a chain type chip conveyor, and the 45 mm roller guideways and large-diameter ball screws are, in YCM's words, laid out to maximize chip disposal.

The S model fits a shop that wants to rough and finish structural aluminium or cut steel at high feed on one machine. The table is 1,120 x 650 mm, spindle nose to table is 100~700 mm (3.94~27.56 in), and machine weight is 7,000 kg (15,432 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	15,000 rpm
Spindle Motor Power	37 kW (50 HP)
Spindle Taper	BBT40
X Axis Travel	1,020 mm (40.16 in)
Y Axis Travel	600 mm (23.62 in)
Z Axis Travel	600 mm (23.62 in)
Distance Spindle Nose to Table	100~700 mm (3.94~27.56 in)
Table Size	1,120 x 650 mm
T-Slots	6 x 18 x 100 mm (6 x 0.71 x 3.94 in)
Max Table Load	1,000 kg (2,205 lb)
Rapid Traverse Xyz	48/48/48 m/min (1,890/1,890/1,890 ipm)
Cutting Feed Rate	1~20,000 mm/min (0.04~787.4 ipm)
Tool Capacity	30 tools; opt. 48 tools
Max Tool Weight	6 kg (13.2 lb)
Max Tool Size	ø76 x 300 mm (ø3 x 11.8 in); without adjacent tools ø125 x 300 mm (ø4.9 x 11.8 in)
Machine Weight	7,000 kg (15,432 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

37 kW (50 HP) BBT40 spindle at 15,000 rpm as standard
48 m/min (1,890 ipm) rapid traverse on X, Y and Z
Table load of 1,000 kg (2,205 lb)
Spindle cooling unit and micro oil-air lubrication
Dual chip augers with a chain type chip conveyor
30-tool disk magazine as standard, 48-tool chain type optional

Limitations

BBT40 tools are limited to 6 kg (13.2 lb), which caps cutter size however much power is available
The table lists no alternative spindle for buyers who want less speed and more low-end torque
Largest magazine is 48 tools
37 kW (50 HP) asks for a matching electrical supply; the page gives no power requirement

Best For

High-rate aluminium roughing and finishing in one setup Aerospace-style structural parts within 1,020 x 600 x 600 mm Steel parts cut at high feed with 40-taper tooling

Frequently Asked Questions

01 What makes the NSV106AS different from the NSV106A?

The NSV106AS has a 37 kW (50 HP), 15,000 rpm spindle, 48/48/48 m/min rapids, a 1,000 kg (2,205 lb) table and a 30-tool standard magazine. The NSV106A has 18.5 kW (25 HP) at 12,000 rpm, 48/48/32 m/min, 700 kg (1,543 lb) and 24 tools.

02 How is the spindle cooled and lubricated?

YCM lists a spindle cooling unit that decreases thermal deformation on the spindle headstock and a micro oil-air lubrication system that minimizes thermal deformation and prolongs spindle life. The spindle uses ceramic bearings.

03 How much can the table carry?

The maximum table load is 1,000 kg (2,205 lb). The table is 1,120 x 650 mm with T-slots listed as 6 x 18 x 100 mm, and the travels are 1,020 mm (40.16 in) in X and 600 mm (23.62 in) in Y and Z.

04 How does the machine deal with chips?

Dual chip augers and a chain type chip conveyor are fitted. YCM also says the 45 mm roller guideways and large-diameter ball screws on the 3 axes are arranged to maximize chip disposal during processing.
