YCM D3016

Q: How much does the YCM D3016 cost?

The price estimate for the YCM D3016 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-d3016#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

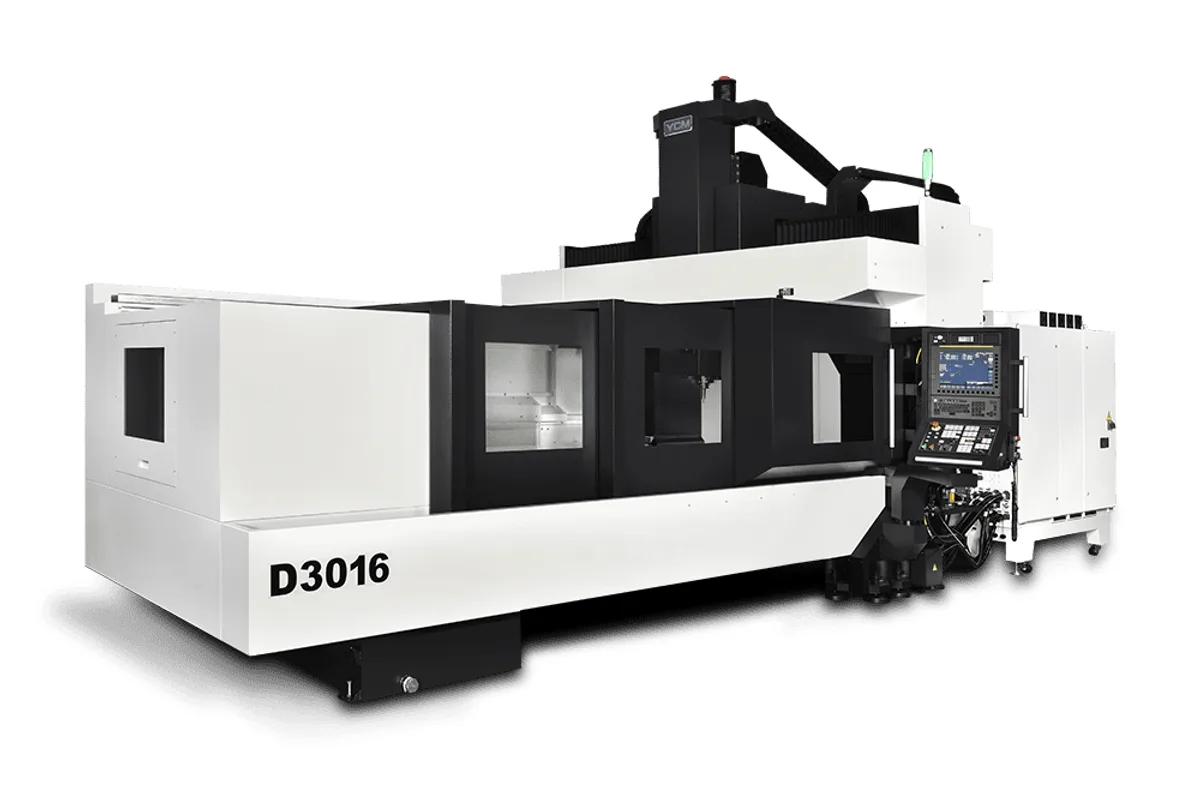

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

6,000 rpm; opt. 6,000 / 10,000 rpm

Spindle Taper

BBT50

Tool Capacity

30 tools; opt. 32 / 40 / 60 tools

Table Size

3,000 x 1,400 mm (118.1 x 55.1 in)

Spindle Power

15 kW (20 hp); opt. 35/45 kW (47/60 hp)

x axis travel

3,200 mm (126 in)

How much does the YCM D3016 cost?

Price estimate

Uncertain

We do not have a price for the YCM D3016 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM D3016 is a double-column machining center with roller linear guideways on all three axes and no counterweight on Z. Travels are 3,200 mm in X and 1,600 mm in Y, the table is 3,000 x 1,400 mm, and there is 1,800 mm between the columns.

Most of YCM's bridge mills keep a boxway on the vertical axis. The D3016 does not, and YCM connects the counterweight-free Z axis with lower vibration and better surface roughness. The spindle centre is set close to the Y-axis guideways and the column, the saddle is wide and supported both horizontally and vertically, and the columns stand on widened feet.

The spindle list is unusually specific about torque. The 6,000 rpm spindle has a planetary reduction stage and reaches 891.3 Nm. The 10,000 rpm spindle delivers 477.5 Nm with a maximum of 45 kW. Both are IDD units with a BBT50 taper and water jackets for cooling. The table's standard power entry is 15 kW, with 35 and 45 kW in the options column, so the motor size should be fixed early in a quotation.

A 30-tool magazine is standard, and 32, 40 or 60 tools are optional. Tools can weigh 20 kg and measure ø240 x 350 mm without neighbours. Spindle nose to table is 200~962 mm; with a raised column, or with the optional 1,016 mm Z travel, the page gives longer ranges. Rapids are 20 m/min on every axis, dual chip augers feed a conveyor, and the machine weighs 23,000 kg.

Full Specifications

Parameter	Value
Max Spindle Speed	6,000 rpm; opt. 6,000 / 10,000 rpm
Spindle Motor Power	15 kW (20 hp); opt. 35/45 kW (47/60 hp)
Spindle Taper	BBT50
X Axis Travel	3,200 mm (126 in)
Y Axis Travel	1,600 mm (63 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Nose to Table	200~962 (450~1,212 [ Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016]) mm
Distance Between Columns	1,800 mm (70.9 in)
Table Size	3,000 x 1,400 mm (118.1 x 55.1 in)
T-Slots	9 x 22 x 160 mm (9 x 0.87 x 6.30 in)
Max Table Load	10,000 kg (22,046 lb)
Rapid Traverse Xyz	20/20/20 m/min (787/787/787 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	30 tools; opt. 32 / 40 / 60 tools
Max Tool Weight	20 kg (44 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.8 in); without adjacent tools ø240 x 350 mm (ø9.44 x 13.8 in)
Machine Weight	23,000 kg (50,706 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Roller type linear guideways on X, Y and Z
6,000 rpm spindle with planetary reduction and 891.3 Nm of torque
10,000 rpm spindle option with 45 kW and 477.5 Nm
No counterweight on the Z axis
3,200 x 1,600 mm travels with 20 m/min rapids on all axes

Limitations

Standard spindle power is listed as 15 kW; 35 and 45 kW are options
Z travel is 762 mm unless the 1,016 mm option is ordered
Part width is limited by the 1,800 mm between the columns and 1,600 mm of Y travel
Standard magazine holds 30 tools

Best For

Large plates, mold bases and machine frames up to 3,000 x 1,400 mm Heavy steel roughing with the 891.3 Nm reduction spindle Finishing of large surfaces where a counterweight-free Z axis helps

Frequently Asked Questions

01 What torque do the D3016 spindles deliver?

YCM states that the 6,000 rpm spindle, which has a planetary reduction mechanism, has a maximum torque of 891.3 Nm, and that the 10,000 rpm spindle gives a maximum of 45 kW and 477.5 Nm. Both use a BBT50 taper.

02 What are the travels and table size?

X travel is 3,200 mm and Y travel is 1,600 mm. Z travel is 762 mm, or 1,016 mm as an option. The table is 3,000 x 1,400 mm with T-slots listed as 9 x 22 x 160 mm, and the distance between columns is 1,800 mm.

03 What guideways does the D3016 have?

Roller type linear guideways on the X, Y and Z axes, which YCM says give low friction, no backlash and high rigidity. The Z axis has no counter weight, for low vibration and better surface roughness.

04 How many tools can it hold?

30 tools as standard, with 32, 40 or 60 as options. A tool can weigh 20 kg and measure ø125 x 350 mm with adjacent tools or ø240 x 350 mm without them.
