YCM NSV106AM

Q: How much does the YCM NSV106AM cost?

The price estimate for the YCM NSV106AM is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-nsv106am#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

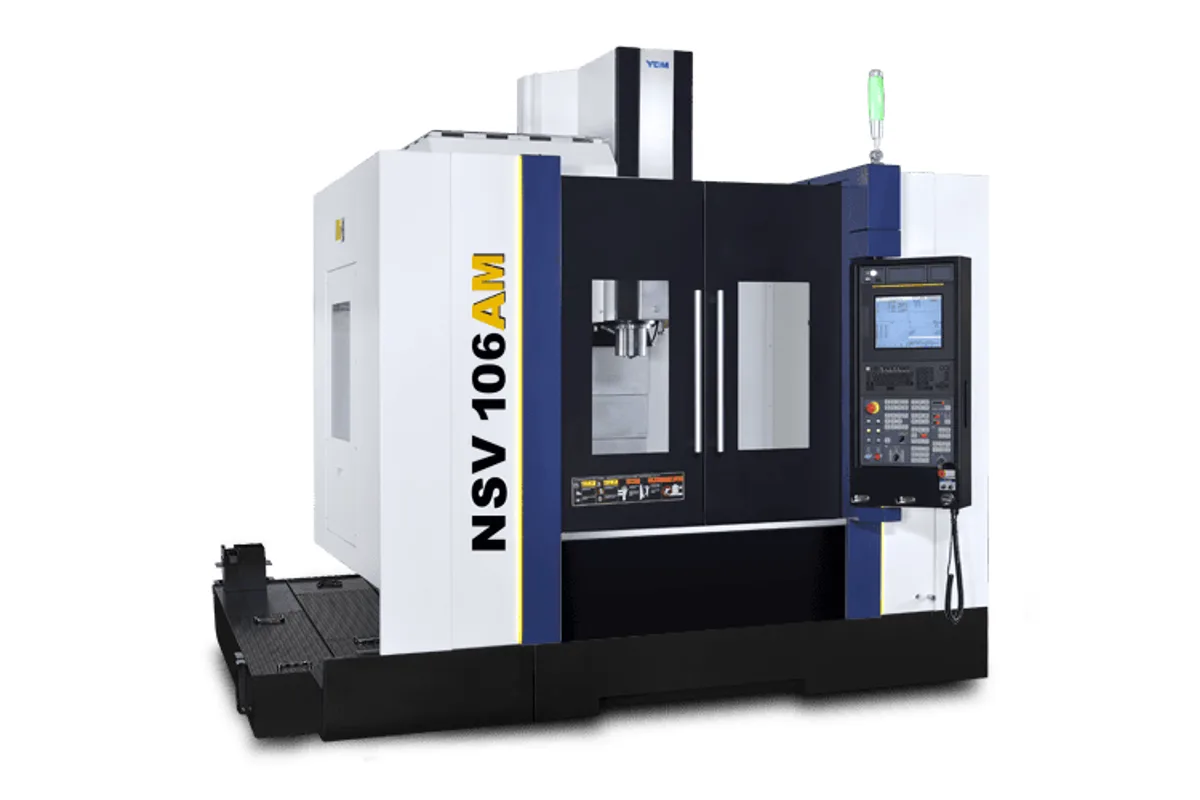

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

12,000 rpm; opt. 15,000 rpm

Spindle Taper

BBT40

Tool Capacity

24 tools; opt. 30 / 48 tools

Table Size

1,120 x 650 mm

Spindle Power

18.5 kW (25 HP)

x axis travel

1,020 mm (40.16 in)

How much does the YCM NSV106AM cost?

Price estimate

Uncertain

We do not have a price for the YCM NSV106AM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

YCM names die and mold, aerospace and automotive work as the applications of the NSV106AM, and the table backs the first of those. It is a BBT40 vertical machining center on the NSV106 frame, with travels of 1,020 x 600 x 600 mm (40.16 x 23.62 x 23.62 in), slowed down and fitted for long, accurate cuts.

Rapids are 24 m/min (945 ipm) in X and Y and 16 m/min (630 ipm) in Z, half the figures of the NSV106A. Cutting feed is 1~20,000 mm/min on X and Y and 1~16,000 mm/min on Z. A mold cavity is cut with the tool engaged almost all the time, so rapid speed adds little; smooth, controlled feed motion is what shows on the surface.

The spindle is the 12,000 rpm IDD unit with 18.5 kW (25 HP), ceramic bearings and micro oil-air lubrication, which YCM says reduces thermal deformation and suits the die and mold industry. A 15,000 rpm spindle is optional. A machine that holds its thermal state through an eight-hour finishing program saves hand polishing afterwards.

Blocks up to 700 kg (1,543 lb) sit on the 1,120 x 650 mm table, which rides on 45 mm guideways. The 24-tool disk magazine is standard, with 30-tool disk and 48-tool chain options, and tools change in 1.8 sec. For heavier blocks or more spindle power the NSV106AMS is the step up, with a 1,000 kg (2,205 lb) table.

Full Specifications

Parameter	Value
Max Spindle Speed	12,000 rpm; opt. 15,000 rpm
Spindle Motor Power	18.5 kW (25 HP)
Spindle Taper	BBT40
X Axis Travel	1,020 mm (40.16 in)
Y Axis Travel	600 mm (23.62 in)
Z Axis Travel	600 mm (23.62 in)
Distance Spindle Nose to Table	100~700 mm (3.94~27.56 in)
Table Size	1,120 x 650 mm
T-Slots	6 x 18 x 100 mm (6 x 0.71 x 3.94 in)
Max Table Load	700 kg (1,543 lb)
Rapid Traverse Xyz	24/24/16 m/min (945/945/630 ipm)
Cutting Feed Rate	X / Y: 1~20,000 Z: 1~16,000 mm/min
Tool Capacity	24 tools; opt. 30 / 48 tools
Max Tool Weight	6 kg (13 lb)
Max Tool Size	ø76 x 300 mm (ø3 x 11.8 in); without adjacent tools ø125 x 300 mm (ø4.9 x 11.8 in)
Machine Weight	7,000 kg (15,432 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Micro oil-air spindle lubrication, which YCM says minimizes thermal deformation
Per-axis cutting feed of 1~20,000 mm/min on X and Y for contouring
600 mm (23.62 in) of Z travel for deep cavities and tall blocks
Magazine options of 30 or 48 tools beyond the standard 24

Limitations

Rapids of 24 m/min (945 ipm) in X and Y and 16 m/min (630 ipm) in Z are slow for production of drilled and tapped parts
Table load is 700 kg (1,543 lb); the NSV106AMS takes 1,000 kg (2,205 lb)
Spindle power is 18.5 kW (25 HP), with no higher rating listed for this model
Top speed is 12,000 rpm unless the 15,000 rpm option is ordered

Best For

Die and mold finishing, the first application YCM names for the model Long 3D contouring programs where spindle heat growth must stay small Mold blocks up to 700 kg (1,543 lb)

Frequently Asked Questions

01 What is the NSV106AM designed for?

YCM describes it as suited to die and mold, aerospace and automotive applications. The spindle has micro oil-air lubrication to limit thermal deformation, and the axis speeds are lower than on the NSV106A, at 24/24/16 m/min.

02 What are the feed rates of the NSV106AM?

Cutting feed is listed as 1~20,000 mm/min for X and Y and 1~16,000 mm/min for Z. Rapid traverse is 24 m/min (945 ipm) in X and Y and 16 m/min (630 ipm) in Z.

03 How heavy a workpiece can it take?

The table is rated for 700 kg (1,543 lb). YCM states that the 45 mm guideways on the 3 axes have a load capacity of up to 700 kg. The table measures 1,120 x 650 mm and spindle nose to table is 100~700 mm (3.94~27.56 in).

04 What is the difference between the NSV106AM and the NSV106AMS?

The NSV106AMS has a 25 kW (34 HP) spindle with a 37 kW (50 HP) option, 24/24/24 m/min rapids and a 1,000 kg (2,205 lb) table. The NSV106AM has 18.5 kW (25 HP), 24/24/16 m/min and 700 kg (1,543 lb).
