YCM NMV76A

Q: How much does the YCM NMV76A cost?

The price estimate for the YCM NMV76A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-nmv76a#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

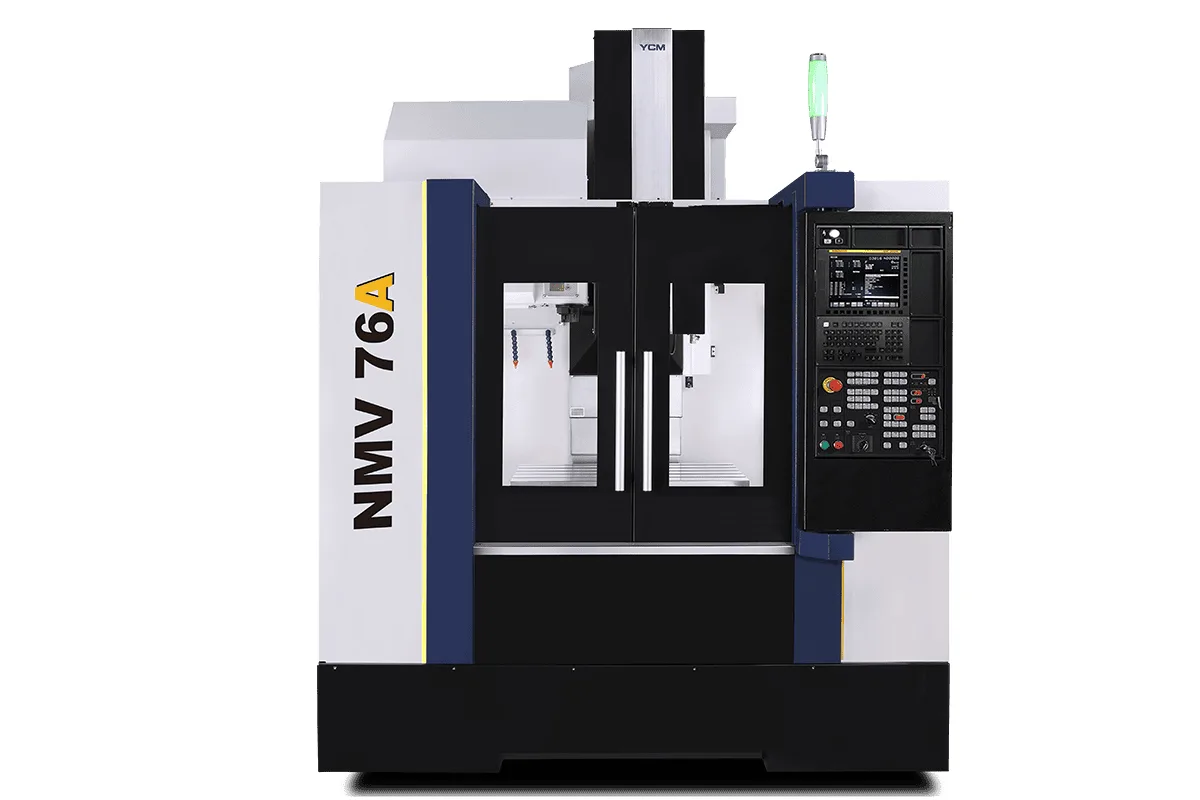

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

12,000 (8,000/10,000 GEAR BOX) rpm

Spindle Taper

BBT40

Tool Capacity

24 tools; opt. 30 tools

Table Size

915 x 560 mm (36.02 x 22.05 in)

Spindle Power

18.5 kW (25 HP); opt. 18.5/18.5 kW (25/25 HP)

x axis travel

762 mm (30.00 in)

How much does the YCM NMV76A cost?

Price estimate

Uncertain

We do not have a price for the YCM NMV76A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Box guideways on all three axes set the YCM NMV76A apart from the linear-guide machines that fill most of YCM's vertical range. It is a BBT40 vertical machining center with 762 mm (30.00 in) of X travel, 510 mm (20.08 in) of Y and 560 mm (22.05 in) of Z, described by its maker as built for heavy cutting.

A boxway carries load on broad sliding faces, which damps vibration in interrupted cuts and stands up to shock. YCM hand scrapes the ways, supports the table on a dual-wall saddle with a 650mm Y-axis span, and leaves the counterweight off the Z axis for better dynamic accuracy. The Z axis is supported outside the column.

The spindle list gives the buyer a real choice. Standard is a 12,000 rpm direct-drive IDD spindle with 18.5 kW (25 HP), which YCM positions for parts machining. One option is an 8,000 rpm spindle with gear transmission that reaches 45.04 kgf-m of torque, aimed at castings and titanium. The other is a 10,000 rpm geared spindle, for which spindle cooling is standard. Power is 18.5 kW in each case; what changes is where in the speed range the torque sits.

The table is 915 x 560 mm (36.02 x 22.05 in) and takes 500 kg (1,102 lb). Even with sliding ways the axes rapid at 36 m/min in X and Y and 24 m/min in Z. The magazine holds 24 tools, or 30 as an option, picks the shortest path in either direction and changes in 1.8 sec. Machine weight is 5,100 kg (11,243 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	12,000 (8,000/10,000 GEAR BOX) rpm
Spindle Motor Power	18.5 kW (25 HP); opt. 18.5/18.5 kW (25/25 HP)
Spindle Taper	BBT40
X Axis Travel	762 mm (30.00 in)
Y Axis Travel	510 mm (20.08 in)
Z Axis Travel	560 mm (22.05 in)
Distance Spindle Nose to Table	120~680 mm (4.72~26.77 in)
Table Size	915 x 560 mm (36.02 x 22.05 in)
T-Slots	5 x 18 x 100 mm
Max Table Load	500 kg (1,102 lb)
Rapid Traverse Xyz	36/36/24 m/min
Cutting Feed Rate	1~20,000 mm/min (0.04~787 ipm)
Tool Capacity	24 tools; opt. 30 tools
Max Tool Weight	6 kg (13.2 lb)
Max Tool Size	ø90 x 300 mm (ø3.54 x 11.81 in)
Machine Weight	5,100 kg (11,243 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Hand-scraped box guideways on three axes for heavy and interrupted cutting
Optional 8,000 rpm gear spindle reaching 45.04 kgf-m of torque
12,000 rpm direct-drive spindle with 18.5 kW (25 HP) as standard
No counterweight on the Z axis
Bi-directional tool magazine with a 1.8 sec tool change

Limitations

Table load is 500 kg (1,102 lb)
The geared spindles are options; the standard spindle is direct drive
Tool size is listed as ø90 x 300 mm only, with no larger figure for empty adjacent pockets
Magazine capacity tops out at 30 tools

Best For

Steel, casting and titanium parts cut with the 8,000 rpm gear spindle Interrupted and heavy cuts that benefit from boxway damping General parts machining inside 762 x 510 x 560 mm of travel

Frequently Asked Questions

01 What guideways does the NMV76A use?

Box guideways on all three axes. YCM states that the boxway design is suitable for heavy cutting, that the ways are hand scraped, and that the wide span 650mm Y-axis with a dual-wall saddle fully supports table movement.

02 Which spindles are available?

A 12,000 rpm direct-drive spindle is standard. An 8,000 rpm spindle with gear transmission, capable of 45.04 kgf-m of torque, and a 10,000 rpm geared spindle with standard spindle cooling are options. The table lists 18.5 kW (25 HP) for all of them.

03 What are the travels and table size?

Travels are 762 mm (30.00 in) in X, 510 mm (20.08 in) in Y and 560 mm (22.05 in) in Z. The table is 915 x 560 mm (36.02 x 22.05 in), carries 500 kg (1,102 lb), and spindle nose to table is 120~680 mm (4.72~26.77 in).

04 How does the NMV76A differ from the NMV106A?

Size. The NMV106A has 1,020 mm (40.16 in) of X, 600 mm (23.62 in) of Y and Z, an 800 kg (1,764 lb) table and a 40-tool magazine option. The NMV76A has 762 mm (30.00 in) of X, a 500 kg (1,102 lb) table and weighs 5,100 kg (11,243 lb).
