YCM TCV3000A

Q: How much does the YCM TCV3000A cost?

The price estimate for the YCM TCV3000A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-tcv3000a#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

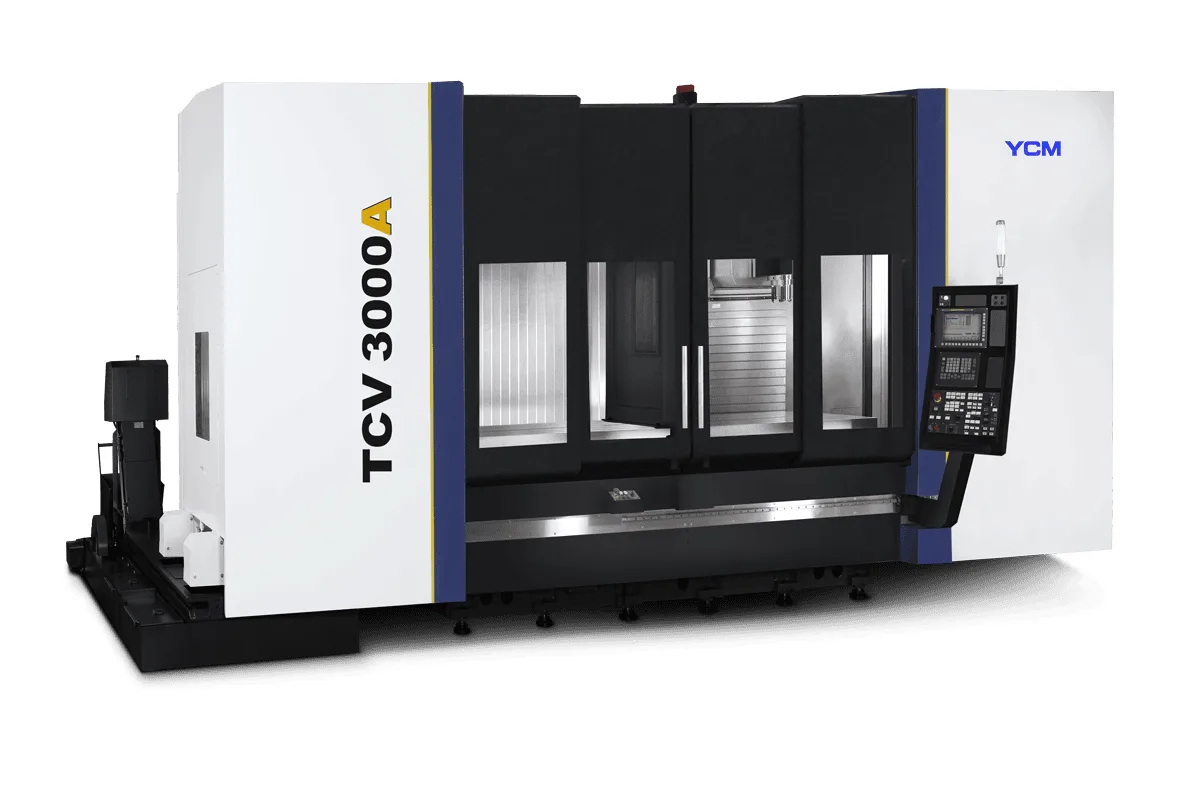

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

12,000 rpm; opt. 15,000 rpm

Spindle Taper

BBT40

Tool Capacity

40 tools; opt. 80 tools

Table Size

3,500 x 800 mm (137.8 x 31.5 in)

Spindle Power

22 kW (30 HP)

x axis travel

3,000 mm (118.11 in)

How much does the YCM TCV3000A cost?

Price estimate

Uncertain

We do not have a price for the YCM TCV3000A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Three metres of X travel and 800 mm of both Y and Z put the YCM TCV3000A among the largest 40-taper vertical machines YCM builds. It is a travelling column machining center: the 3,500 x 800 mm (137.8 x 31.5 in) table is fixed, and the column carries the spindle over 3,000 mm (118.11 in).

Next to the TCV2000A, which has a table 520 mm deep, this is a different kind of machine. Y travel of 800 mm (31.50 in) and Z travel of 800 mm (31.50 in) open it to plates, frames and box-shaped parts, and the fixed table takes 3,000 kg (6,614 lb). Machine weight nearly doubles, to 24,000 kg (52,910 lb).

The work area can be divided. In two-area mode the X travel is listed as 2 x 1,100 mm, which gives each side more stroke than many stand-alone vertical machines have. A shop can run two different jobs alternately, or keep the wall out and machine one part the full length of the bed.

The column reaches 40 m/min on roller type guideways, with a cooled X axis and no counterweight on Z. Because the magazine rides with the column, tool capacity matters more than usual on long jobs. It holds 40 tools, with 80 optional. The spindle is BBT40, 22 kW (30 HP), 12,000 rpm, with a 15,000 rpm option. Spindle nose to table is 50~850 mm, so a short tool can still reach a thin plate lying on the table.

Full Specifications

Parameter	Value
Max Spindle Speed	12,000 rpm; opt. 15,000 rpm
Spindle Motor Power	22 kW (30 HP)
Spindle Taper	BBT40
X Axis Travel	3,000 mm (118.11 in)
Y Axis Travel	800 mm (31.50 in)
Z Axis Travel	800 mm (31.50 in)
Distance Spindle Nose to Table	50~850 mm
X Axis Travel Two Areas	2 x 1,100 mm
Table Size	3,500 x 800 mm (137.8 x 31.5 in)
T-Slots	7 x 18 x 100 mm
Max Table Load	3,000 kg (6,614 lb)
Rapid Traverse Xyz	40/40/40 m/min
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	40 tools; opt. 80 tools
Max Tool Weight	6 kg (13.2 lb)
Max Tool Size	ø76 x 300 mm (ø3 x 11.81 in); without adjacent tools ø125 x 300 mm (ø4.92 x 11.81 in)
Machine Weight	24,000 kg (52,910 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

3,000 mm (118.11 in) of X with 800 mm (31.50 in) of both Y and Z
Fixed table rated for 3,000 kg (6,614 lb)
Two work areas of 1,100 mm X travel each with the dividing wall
40-tool magazine travelling with the column, 80 tools optional
Rapid feedrate up to 40 m/min on roller type guideways

Limitations

Spindle is BBT40 with 22 kW (30 HP); no larger taper or power is listed
Tools are limited to 6 kg (13.2 lb)
Cutting feed is limited to 10,000 mm/min (394 ipm)
The machine weighs 24,000 kg (52,910 lb) and needs a long foundation

Best For

Long aluminium and steel parts up to three metres Two-station pendulum machining with 1,100 mm of X per side Plates and frames up to 3,000 kg (6,614 lb) loaded by crane onto a fixed table

Frequently Asked Questions

01 How large is the TCV3000A work area?

X travel is 3,000 mm (118.11 in), Y is 800 mm (31.50 in) and Z is 800 mm (31.50 in). The fixed table measures 3,500 x 800 mm (137.8 x 31.5 in), has T-slots listed as 7 x 18 x 100 mm and carries 3,000 kg (6,614 lb).

02 Can the TCV3000A work on two parts alternately?

Yes. The table lists X-axis travel working in 2 areas as 2 x 1,100 mm. YCM describes a dividing wall in the working area, so one area can be set up while the column machines in the other.

03 How many tools does it carry?

40 tools as standard and 80 as an option. A tool can be ø76 x 300 mm with adjacent tools, ø125 x 300 mm without, and weigh up to 6 kg (13.2 lb). Guideway blocks support the magazine as it moves with the column.

04 Is there a 5-axis version?

Yes, the TCV3000A-5AX. It keeps the 3,000 mm (118.11 in) X travel and the 3,500 x 800 mm (137.8 x 31.5 in) table and adds a swivel head and a ø800 mm (ø31.5 in) rotary table. The TCV3000A-5AX weighs 24,700 kg (54,454 lb).
