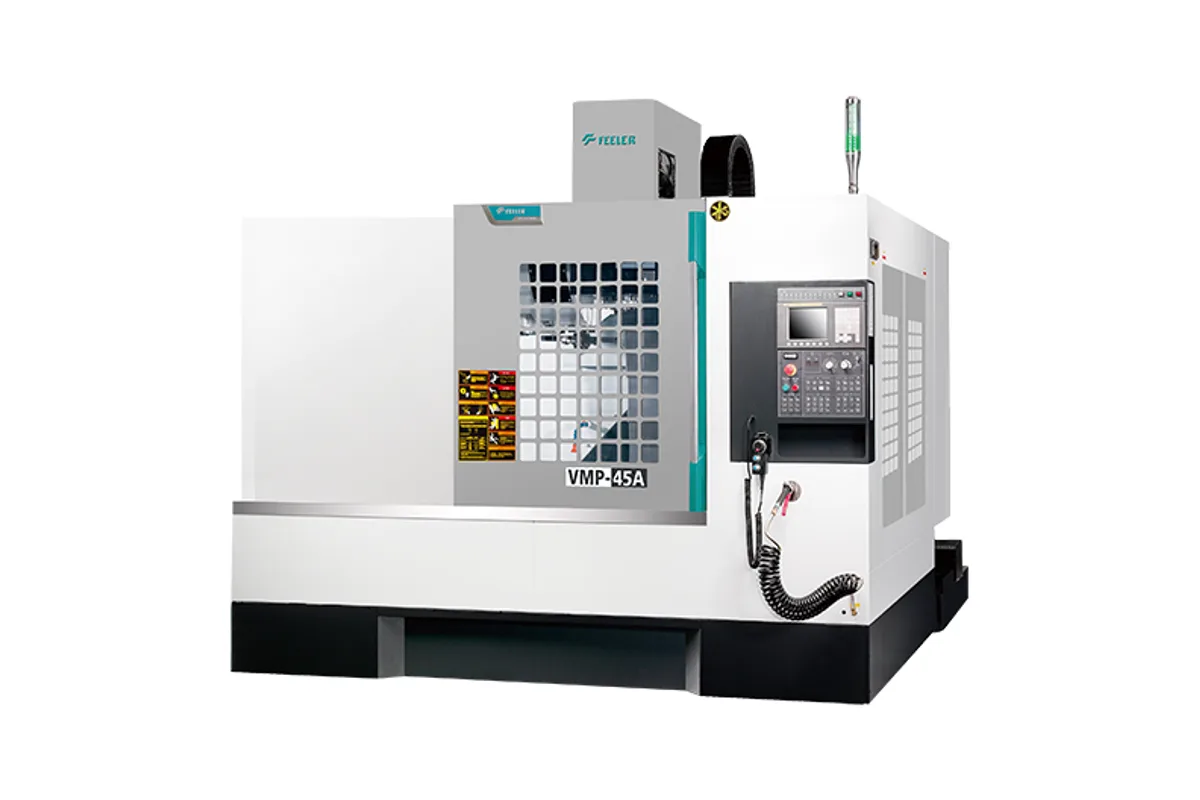

Feeler VMP-45

Q: How much does the Feeler VMP-45 cost?

The price estimate for the Feeler VMP-45 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/feeler-vmp-45#price; the request is passed to Feeler or an authorised dealer.

Specs verified 2026-10-04 · feeler.com Updated 2026-10-04

Image: feeler.com, Feeler

Key Specifications

Max Spindle

10,000/4,000 rpm

Spindle Taper

7/24 Taper No.40/No.50

Tool Capacity

22/24

Table Size

1,200 x 600 mm (47.2 x 23.6 in)

x axis travel

1,100 mm (43.3 in)

y axis travel

610 mm (24.0 in)

How much does the Feeler VMP-45 cost?

Price estimate

Uncertain

We do not have a price for the Feeler VMP-45 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Feeler lists the VMP-45 with a choice no smaller VMP model has: a 7/24 taper in No.40 or No.50. The spindle speed row reads 10,000/4,000 rpm and the tool row 22/24, in the same order as the taper row, which reads as 10,000 rpm and 22 tools for the No.40 spindle and 4,000 rpm and 24 tools for the No.50. Confirm that pairing with the maker; the page does not spell it out.

Either way the frame is the same. Travels are 1,100 mm (43.3 in) in X, 610 mm (24.0 in) in Y and 600 mm (23.6 in) in Z, over a 1,200 x 600 mm (47.2 x 23.6 in) table that carries 1,500 kg (3,307 lb). Rapids are 36 m/min (1,417 ipm) on X and Y and 24 m/min (945 ipm) on Z.

The two spindles make two different machines. At 4,000 rpm with a 50-taper, this is a low-speed machine for big face mills, large drills and boring bars in steel and cast iron, and it gives up small-tool work. At 10,000 rpm with a 40-taper it is a general-purpose VMC with an unusually strong table. The 1,500 kg rating and 610 mm of Y suit plates, mold bases and welded frames in both cases.

Feeler's series text speaks of high-strength cast iron, an A-frame column and enlarged base, and of holding precision under long-duration, heavy-load machining. Spindle power and torque for either taper are not in the table, and for a 50-taper purchase those two numbers matter more than any other.

Full Specifications

Parameter	Value
X Axis Travel	1,100 mm (43.3 in)
Y Axis Travel	610 mm (24.0 in)
Z Axis Travel	600 mm (23.6 in)
Table Size	1,200 x 600 mm (47.2 x 23.6 in)
Max Table Load	1,500 kg (3,307 lb)
Max Spindle Speed	10,000/4,000 rpm
Spindle Taper	7/24 Taper No.40/No.50
Rapid Traverse X	36 m/min (1,417 ipm)
Rapid Traverse Y	36 m/min (1,417 ipm)
Rapid Traverse Z	24 m/min (945 ipm)
Tool Capacity	22/24

Specifications sourced from feeler.com — verified 2026-10-04

Strengths & Limitations

Strengths

Choice of No.40 or No.50 7/24 taper spindle in the maker's table
1,500 kg (3,307 lb) table load on a 1,200 x 600 mm table
610 mm (24.0 in) of Y travel covers the 600 mm table depth
600 mm of Z travel, up from 505 mm on the VMP-40
Structure described by Feeler as designed for long-duration, heavy-load machining

Limitations

The second spindle speed listed is 4,000 rpm, which rules out small tools at efficient cutting speeds
Z rapid is 24 m/min (945 ipm)
Tool capacity is 22/24, small for a machine that may run large-part programs
No power or torque figure for either spindle on the series page

Best For

Steel and cast iron parts up to 1,500 kg Heavy face milling and boring with 50-taper tooling Mold bases and plates up to 1,100 x 610 mm Shops that want one frame size with a spindle matched to their material

Frequently Asked Questions

01 Does the Feeler VMP-45 come with a 40-taper or a 50-taper spindle?

Either. The table header reads VMP-45 (#40/50) and the taper row reads 7/24 Taper No.40/No.50. Spindle speed is given as 10,000/4,000 rpm and tool capacity as 22/24, which appear to follow the same No.40/No.50 order.

02 What are the travels and table size?

1,100 mm (43.3 in) in X, 610 mm (24.0 in) in Y and 600 mm (23.6 in) in Z. The table is 1,200 x 600 mm (47.2 x 23.6 in) and the maximum loading weight is 1,500 kg (3,307 lb).

03 How does it differ from the VMP-50?

The VMP-50 has 1,300 mm of X travel and a 1,420 x 600 mm table. Y, Z, the 1,500 kg rating, the No.40/No.50 spindle choice, the rapid rates and the tool capacity are the same in Feeler's table.

04 Is the VMP-45 the same size as the VMX-1100?

The envelope matches: the VMX-1100 also lists 1,100 x 610 x 600 mm travels, a 1,200 x 600 mm table and 1,500 kg. The VMX-1100 has a 12,000 rpm No.40 spindle only. The VMP-45 adds the No.50 alternative at 4,000 rpm.
