YCM NDC4022B-AHC vertical machining center

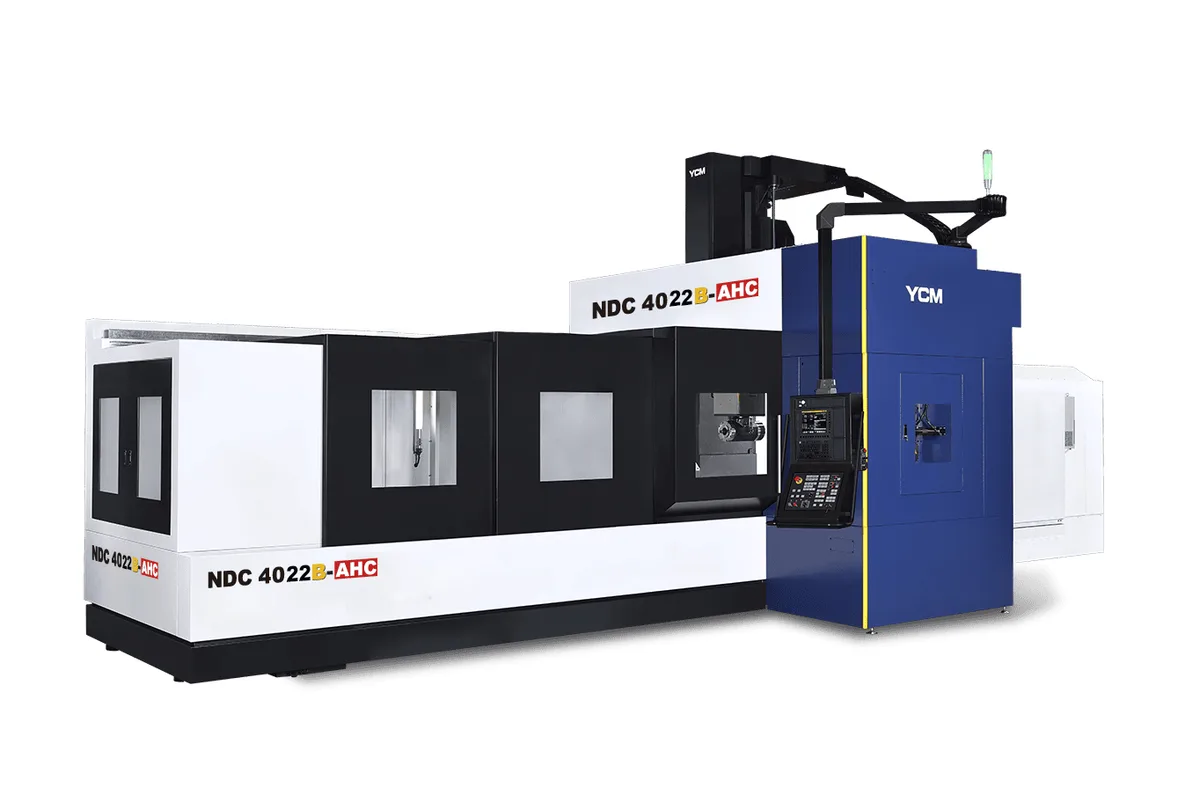

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

6,000 rpm

Spindle Taper

BBT50

Tool Capacity

40/60 tools

Table Size

4,000 x 1,800 mm (157.48 x 70.86 in)

Spindle Power

35 kW (46.9 hp)

x axis travel

4,200 mm (165.35 in)

How much does the YCM NDC4022B-AHC cost?

Price estimate

Uncertain

We do not have a price for the YCM NDC4022B-AHC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM NDC4022B-AHC is the top model of the NDC range: the wide four-metre frame with a 15,000 kg (33,069 lb) table, plus automatic change between the vertical spindle and a 90° angle head. Its travels are 4,200 mm (165.35 in) in X and 2,800 mm (110.2 in) in Y.

It joins the two strands of the series. From the wide frame it takes the box structure head on a boxway, the direct gear drive on the X axis and the column bases widened with boots. From the AHC models it takes the octagonal angle head, the rotary head chamber and the tool changer that works in both spindle positions. Driving both heads is YCM's 2-step gear transmission, which has oil cooling to hold down temperature and noise.

The case for it is strongest on the heaviest parts. A fifteen-tonne die or casting is the hardest kind of workpiece to turn and re-align, and the one where an error between faces costs most. Machining five sides in one clamping removes that risk, and YCM names reduced fixture work and loading time as further gains.

The table is 4,000 x 1,800 mm with 28 mm T-slots, and the columns are 2,200 mm (86.61 in) apart. All three axes rapid at 15 m/min. The spindle is BBT50 at 6,000 rpm with 35 kW (46.9 hp), and the table lists magazine capacity as 40/60 tools. Z travel is 762 mm (30 in) or 1,016 mm (40 in). Machine weight is 39,000 kg (85,979 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	6,000 rpm
Spindle Motor Power	35 kW (46.9 hp)
Spindle Taper	BBT50
X Axis Travel	4,200 mm (165.35 in)
Y Axis Travel	2,800 mm (110.2 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Nose to Table	Vertical: 500~1,262 Horizontal: 130~892[30"Standard] Vertical: 750~1,512 Horizontal: 380~1,142 [30"Raised 250] Vertical: 500~1,516 Horizontal: 130~1,146[40"Raised 250] mm
Distance Between Columns	2,200 mm (86.61 in)
Table Size	4,000 x 1,800 mm (157.48 x 70.86 in)
T-Slots	9 x 28 x 200 mm (9 x 1.10 x 7.87 in)
Max Table Load	15,000 kg (33,069 lb)
Rapid Traverse Xyz	15/15/15 m/min (591/591/591 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	40/60 tools
Max Tool Weight	20 kg (44 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	39,000 kg (85,979 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Automatic vertical / horizontal head change on a 15,000 kg (33,069 lb) table
2-step gear transmission with oil cooling for both vertical and horizontal machining
Direct gear drive on the X axis
2,800 mm (110.2 in) of Y travel with 2,200 mm (86.61 in) between columns
Box structure head on a boxway Z axis

Limitations

Rapid traverse is 15 m/min on all axes
Spindle speed is limited to 6,000 rpm
Magazine capacity is 40 or 60 tools, with no larger option listed
A 39,000 kg (85,979 lb) machine needs a deep foundation and heavy cranes

Best For

Large stamping dies and mold halves machined on five sides Heavy castings and weldments up to 15,000 kg (33,069 lb) Machine tool structures with features on top and side faces

Frequently Asked Questions

01 What makes the NDC4022B-AHC different from the NDC4022B?

The automatic head changer and its 90° angle head. The NDC4022B is a three-axis machine with 2,200 mm (86.61 in) of Y travel, a 32-tool standard magazine and a weight of 37,000 kg (81,570 lb). The AHC model has 2,800 mm (110.2 in) of Y and weighs 39,000 kg (85,979 lb).

02 What are the travels and table load?

X travel is 4,200 mm (165.35 in), Y travel 2,800 mm (110.2 in) and Z travel 762 mm (30 in), or 1,016 mm (40 in) as an option. The table carries 15,000 kg (33,069 lb) and has T-slots listed as 9 x 28 x 200 mm.

03 How is the spindle driven?

Through YCM's self-manufactured gearbox with a 2-step gear transmission, which the maker says provides high torque for both vertical and horizontal machining. The spindle is BBT50, 6,000 rpm, 35 kW (46.9 hp).

04 How fast are the axes?

Rapid traverse is 15 m/min (591 ipm) on X, Y and Z, and cutting feed is 1~10,000 mm/min (0.04~394 ipm). The X axis uses a direct gear drive; Y and Z use ball screws coupled directly to their motors.
