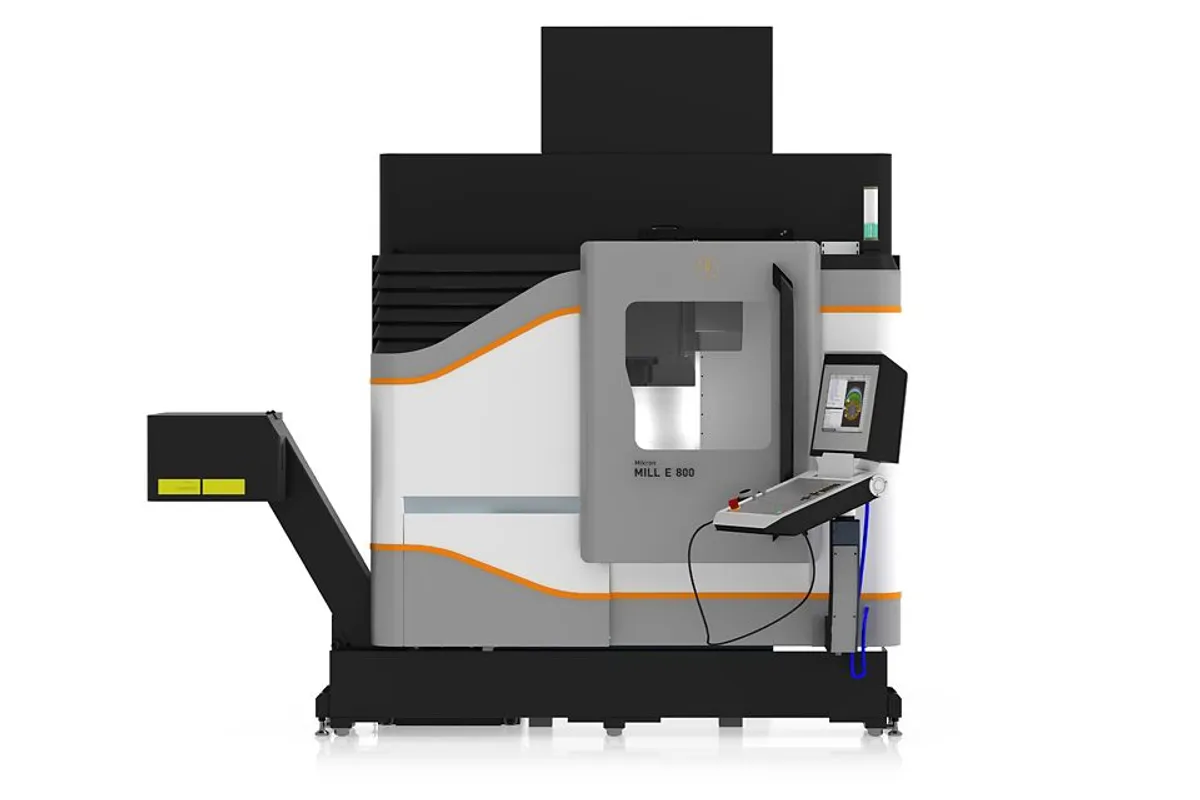

GF Machining Mikron MILL E 800
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The GF Machining Mikron MILL E 800 is a 3-axis vertical machining center from the Efficiency series, targeting job shops, mold makers, and contract manufacturers who need productive, versatile milling without the cost of the MILL P precision series.
The MILL E 800 offers X/Y/Z travels of 850 x 600 x 600 mm (33.5 x 23.6 x 23.6 in) on a T-slot table measuring 1,050 x 600 mm (41.3 x 23.6 in) with a 1,000 kg (2,205 lb) load capacity. The generous 600 mm Z travel provides clearance for tall workpieces and deep-cavity mold blocks.
Spindle options span 12,000, 16,000, and 20,000 RPM, all with HSK-A63 taper. The 30-pocket magazine (expandable to 60) and 40 m/min rapid traverse support productive job sequencing. Pricing ranges from $180,000 to $300,000.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 850 mm (33.5 in) |
| Y-Axis Travel | 600 mm (23.6 in) |
| Z-Axis Travel | 600 mm (23.6 in) |
| Table Size | 1,050 x 600 mm (41.3 x 23.6 in) |
| Table Load Capacity | 3000 kg |
| Max Spindle Speed | 20,000 RPM (16,000 / 12,000 RPM options) |
| Spindle Taper | HSK-A63 |
| Tool Capacity | 40 / 60 pockets - HSK-A6330 / 40 / 60 pockets - ISO & BT4024 / 40 pockets - ISO & BT50 |
| Rapid Traverse Rate | 40 m/min (1,575 ipm) |
| Feed Rate | 15 m/min (591 ipm) |
| CNC Control | Heidenhain TNC 640 |
| Travel X Y Z | 2000 x 900 x 800 mm |
| Feed Rate X Y Z | 20 m/min |
| Rapid Feed Rate Xy Z | 40 m/min |
| Working Table | 2100 x 850 mm |
| Working Spindle | 16'000 rpm - HSK-A63 / ISO & BT 4010'000 rpm - ISO & BT406'000 rpm - ISO & BT50 |
| Automation | System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis |
Specifications sourced from gfms.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 850 x 600 x 600 mm travels with 1,000 kg table capacity covers a broad range of machining work
- 600 mm Z travel provides clearance for tall workpieces many competitors cannot reach
- Three spindle speed options (12K, 16K, 20K RPM) for any material mix
- HSK-A63 taper maintains compatibility with standard shop tooling
- GF build quality and thermal stability at a mid-range price point
- 40 m/min rapid traverse and 60-pocket magazine support multi-job sequencing
Limitations
- 15 m/min cutting feed rate limits aggressive roughing throughput
- 3-axis machine requires refixturing for multi-face work
- Lacks ITC thermal compensation of the MILL P series
- Competes with established Japanese and Korean VMCs at lower prices
Best For
Frequently Asked Questions
01
Between $180,000 and $300,000 new.
02
Larger envelope (850x600x600 vs 500x450x350mm) but MILL P 500 has 42K RPM and ITC for ultra-precision.
03
20K RPM for mold/die, 12K for heavy steel/cast iron.
04
Compatible with System 3R pallets and robotic loading.
