YCM DCV5030B

Q: How much does the YCM DCV5030B cost?

The price estimate for the YCM DCV5030B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-dcv5030b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

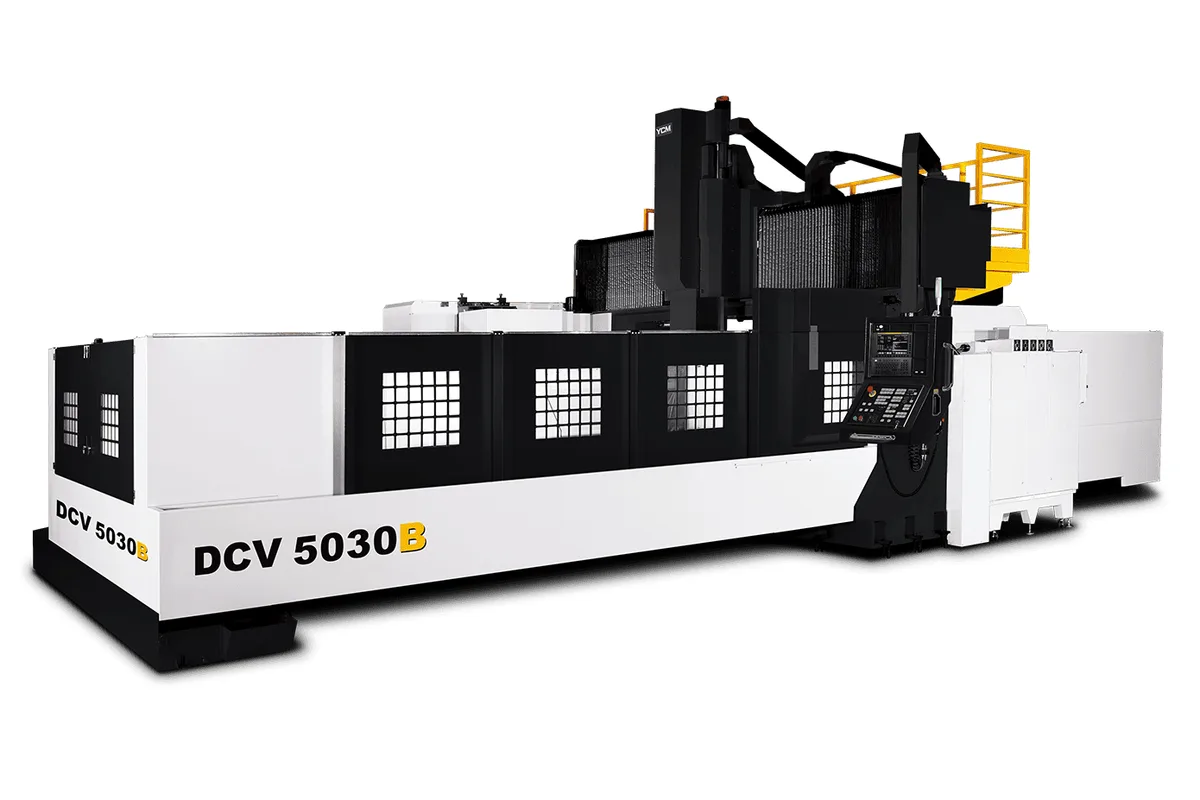

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

4,500 rpm; opt. 6,000 / 10,000 rpm

Spindle Taper

BBT50

Tool Capacity

40 tools; opt. 60 / 120 tools

Table Size

5,000 x 2,400 mm (196.85 x 94.49 in)

Spindle Power

25/25/45 kW (33.5/33.5/60 hp)

x axis travel

5,200 mm (204.73 in)

How much does the YCM DCV5030B cost?

Price estimate

Uncertain

We do not have a price for the YCM DCV5030B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM DCV5030B is the widest of the five-metre DCV double-column machining centers, with 3,000 mm of Y travel and 3,100 mm between the columns. X travel is 5,200 mm and the table measures 5,000 x 2,400 mm, rated for 23,000 kg.

YCM's product page for this model consists of the specification table only; it carries no feature statements. What follows is therefore drawn from the table alone, and construction details should be taken from the maker's quotation.

The figures show that the bridge is wider than the table. As on the other extra-wide DCV models, a workpiece can be wider than the table it stands on and still clear the columns, with the spindle able to travel 3,000 mm across it. That suits large fabricated frames, ring segments and casings.

Spindle and feed rows match the rest of the heavy family. The standard spindle speed is 4,500 rpm, with 6,000 and 10,000 rpm in the options column, on a BBT50 taper, and the power row reads 25/25/45 kW. Rapid traverse is 12 m/min in X and 15 m/min in Y and Z, with cutting feed of 1~10,000 mm/min. Z travel is 762 mm, or 1,016 mm as an option. The magazine holds 40 tools, with 60 or 120 optional, and each tool may weigh 20 kg and measure ø240 x 350 mm without neighbours. There are 11 T-slots of 28 mm on a 200 mm pitch, and the machine weighs 57,000 kg.

Full Specifications

Parameter	Value
Max Spindle Speed	4,500 rpm; opt. 6,000 / 10,000 rpm
Spindle Motor Power	25/25/45 kW (33.5/33.5/60 hp)
Spindle Taper	BBT50
X Axis Travel	5,200 mm (204.73 in)
Y Axis Travel	3,000 mm (118.11 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Nose to Table	200~962 (450~1,212 [Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016]) mm
Distance Between Columns	3,100 mm (122.05 in)
Table Size	5,000 x 2,400 mm (196.85 x 94.49 in)
T-Slots	11 x 28 x 200 mm (11 x 1.10 x 7.87 in)
Max Table Load	23,000 kg (50,706 lb)
Rapid Traverse Xyz	12/15/15 m/min (472/591/591 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	40 tools; opt. 60 / 120 tools
Max Tool Weight	20 kg (44.1 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	57,000 kg (125,662 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

3,000 mm of Y travel with 3,100 mm between columns
5,200 mm of X travel on a 5,000 x 2,400 mm table
Table load of 23,000 kg on a 5,000 x 2,400 mm table
BBT50 spindle with 6,000 and 10,000 rpm options
Tools up to 20 kg and ø240 x 350 mm without adjacent tools

Limitations

The product page lists no feature statements for this model
Machine weight of 57,000 kg
X rapid is 12 m/min over 5,200 mm
Standard spindle speed is 4,500 rpm

Best For

Fabricated frames and casings wider than a 2,400 mm table Large dies and molds up to 23,000 kg Long, wide plates machined in one setup

Frequently Asked Questions

01 What are the travels of the DCV5030B?

X travel is 5,200 mm and Y travel 3,000 mm. Z travel is 762 mm, with 1,016 mm as an option. The distance between columns is 3,100 mm and the table is 5,000 x 2,400 mm.

02 How does it differ from the DCV5025B?

Both use a 5,000 x 2,400 mm table rated for 23,000 kg. The DCV5025B has 2,500 mm of Y travel, 2,720 mm between columns and weighs 54,000 kg. The DCV5030B has 3,000 mm of Y, 3,100 mm between columns and weighs 57,000 kg.

03 What spindle data does the table give?

A BBT50 taper, 4,500 rpm as standard with 6,000 and 10,000 rpm as options, and a power row of 25/25/45 kW. The page has no description of the spindle design for this model, so ask YCM for the details.

04 How many tools does it hold?

40 tools as standard, or 60 or 120 as options. Tool weight is limited to 20 kg. The tool size is ø125 x 350 mm with adjacent tools and ø240 x 350 mm without.
