Campro PV-3226

Q: How much does the Campro PV-3226 cost?

The price estimate for the Campro PV-3226 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/campro-pv-3226#price; the request is passed to Campro or an authorised dealer.

Specs verified 2026-10-04 · camprocnc.com Updated 2026-10-04

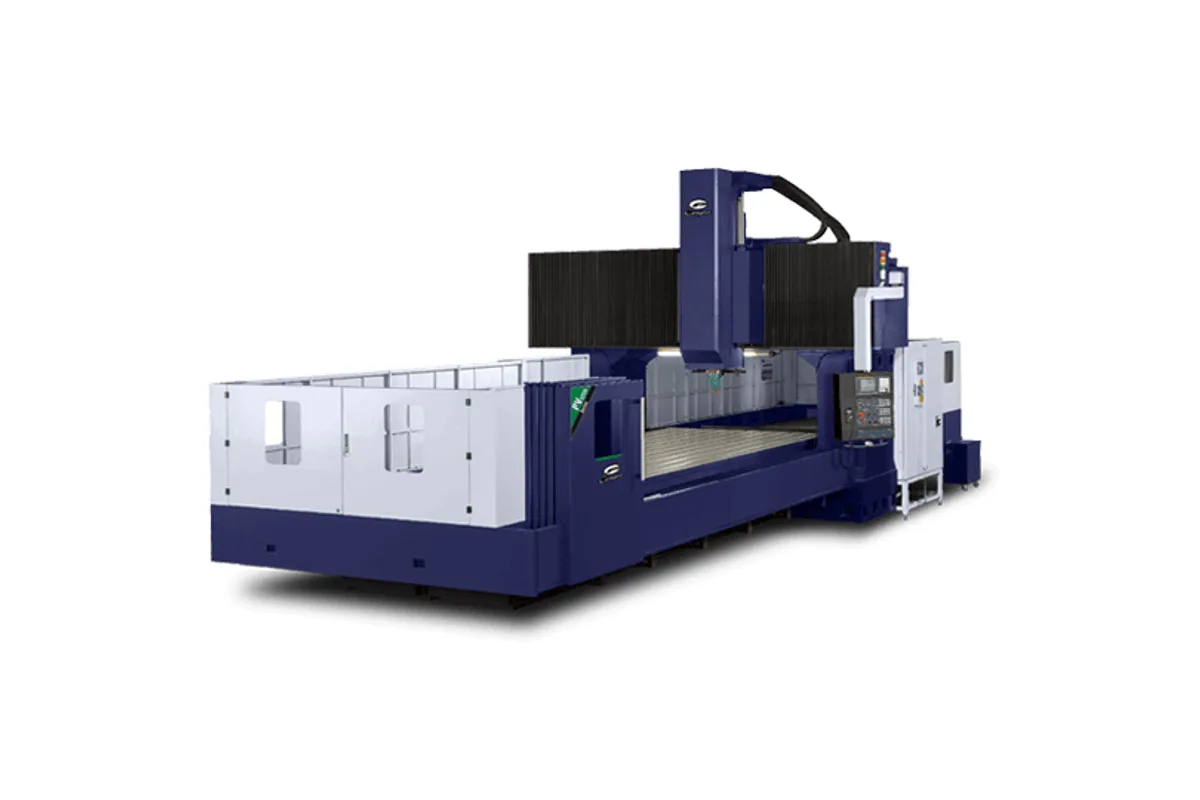

Campro PV series double column machining center

Image: camprocnc.com, Campro

Key Specifications

Max Spindle

6,000 rpm (Gear-head spindle)

Spindle Taper

7/24 taper No.50

Tool Capacity

32 (OPT: 40 / 60)

Table Size

3,000 × 2,200 mm (118.1 in x 86.6 in)

Spindle Power

15 / 18.5 kW (25 HP)

x axis travel

3,200 mm (125.9 in)

How much does the Campro PV-3226 cost?

Price estimate

Uncertain

We do not have a price for the Campro PV-3226 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Campro PV-3226 is the shortest of the widest PV double column machining centers. It has 2,600 mm (102.3 in) of Y travel and 2,700 mm (106.2 in) between its columns, against 3,200 mm (125.9 in) of X travel, which makes the working area close to square.

That proportion suits a different kind of part from the long-table models. The table measures 3,000 × 2,200 mm (118.1 in x 86.6 in), has eleven T-slots and carries 12,000 kg (26,455 lb). Large die blocks, ring-shaped weldments, gearbox housings and press frames fill a table like this in both directions. To carry the load across that width, Campro states that the PV-3226 is equipped with 3 guideways on the X-axis.

The jump in capacity over the next model down is large. The PV-3221 has the same X travel, feeds and spindle but takes 8,000 kg (17,636 lb) on a table 1,700 mm wide. The PV-3226 weighs 39,000 kg (85,980 lb), and its floor plan is 8,800 × 5,500 mm (346 in x 216 in).

Z travel is 800 mm (31.4 in), with 1,000 mm (39.3 in) optional. Rapid feedrate is 12 m/min in X and 15 m/min in Y and Z; cutting feedrate is 1~8,000 mm/min. Campro fits a 6,000 rpm gear-head spindle with a 15 / 18.5 kW (25 HP) motor, a one-piece ram and gear box on box guideways, twin chip screws and a 32-tool BT-50 chain type ATC. With a single spindle of that rating, a full-width facing pass on a 2,200 mm part is a long cut, and cycle estimates should reflect it.

Full Specifications

Parameter	Value
X Axis Travel	3,200 mm (125.9 in)
Y Axis Travel	2,600 mm (102.3 in)
Z Axis Travel	800 mm (31.4 in); OPT: 1,000 mm (39.3 in)
Distance Between Columns	2,700 mm (106.2 in)
Distance Spindle Nose to Table	200~1,000 mm (7.8 in ~ 39.3 in); OPT: 250~1,250 mm (9.8 in ~ 49.2 in)
Table Size	3,000 × 2,200 mm (118.1 in x 86.6 in)
Max Table Load	12,000 kg (26,455 lb)
T-Slots	22 mm x 11 (0.86 in x 11) (W x No.)
Max Spindle Speed	6,000 rpm (Gear-head spindle)
Spindle Motor Power	15 / 18.5 kW (25 HP)
Spindle Taper	7/24 taper No.50
Tool Shank	BT-50
Tool Capacity	32 (OPT: 40 / 60)
Max Tool Diameter (full magazine)	Ø125 mm (Ø4.9 in)
Max Tool Diameter (adjacent pockets empty)	Ø215 mm (Ø8.4 in)
Max Tool Length	350 mm (13.7 in)
Max Tool Weight	20 kg (44 lb)
Rapid Traverse Xyz	12 / 15 / 15 m/min (472.4 / 590.5 / 590.5 in/min)
Cutting Feed Rate	1~8,000 mm/min (314.9 in/min)
Floor Plan	8,800 × 5,500 mm (346 in x 216 in) (W × D)
Machine Weight	39,000 kg (85,980 lb)
Machine Height	4,200 mm (165 in)
Air Source	6~8 kg/cm² (85 ~ 113 PSI)
Power Requirement	40 kVA

Specifications sourced from camprocnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,600 mm (102.3 in) of Y travel and 2,700 mm (106.2 in) between columns
12,000 kg (26,455 lb) on a 3,000 × 2,200 mm (118.1 in x 86.6 in) table
3 guideways on the X-axis, as Campro states for this model
Optional Z travel of 1,000 mm (39.3 in)
Shortest floor plan of the 26 family: 8,800 × 5,500 mm (346 in x 216 in)

Limitations

X travel of 3,200 mm (125.9 in) is short for the width; longer parts need the PV-4226
Rapids of 12 / 15 / 15 m/min and a cutting feed limit of 8,000 mm/min (314.9 in/min)
Spindle motor stays at 15 / 18.5 kW (25 HP)
39,000 kg (85,980 lb) of machine before any workpiece is loaded

Best For

Large square or round parts up to 2,200 mm across Die blocks and housings up to 12,000 kg (26,455 lb) Wide weldments that need 2,700 mm (106.2 in) of column clearance Heavy work in a shop that cannot fit a longer bed

Frequently Asked Questions

01 How wide is the working area of the PV-3226?

Y axis travel is 2,600 mm (102.3 in) and the distance between columns is 2,700 mm (106.2 in). The table is 3,000 × 2,200 mm (118.1 in x 86.6 in) with eleven 22 mm T-slots. X axis travel is 3,200 mm (125.9 in).

02 How much weight does the PV-3226 table carry?

The maximum loading weight is 12,000 kg (26,455 lb). The narrower PV-3221, with the same X travel, is rated 8,000 kg (17,636 lb). Campro states that the PV-3226 is equipped with 3 guideways on the X-axis.

03 What Z clearance does the PV-3226 offer?

Z travel is 800 mm (31.4 in) with a spindle nose to table distance of 200~1,000 mm (7.8 in ~ 39.3 in). The optional Z travel of 1,000 mm (39.3 in) changes that range to 250~1,250 mm (9.8 in ~ 49.2 in). Maximum machine height is 4,200 mm (165 in).

04 What spindle is fitted to the PV-3226?

A gear-head spindle running to 6,000 rpm with a 15 / 18.5 kW (25 HP) motor and a 7/24 taper No.50. Tools use BT-50 shanks, up to 20 kg (44 lb) and 350 mm (13.7 in) long. The chain type magazine holds 32 tools as standard and 40 or 60 as options.
