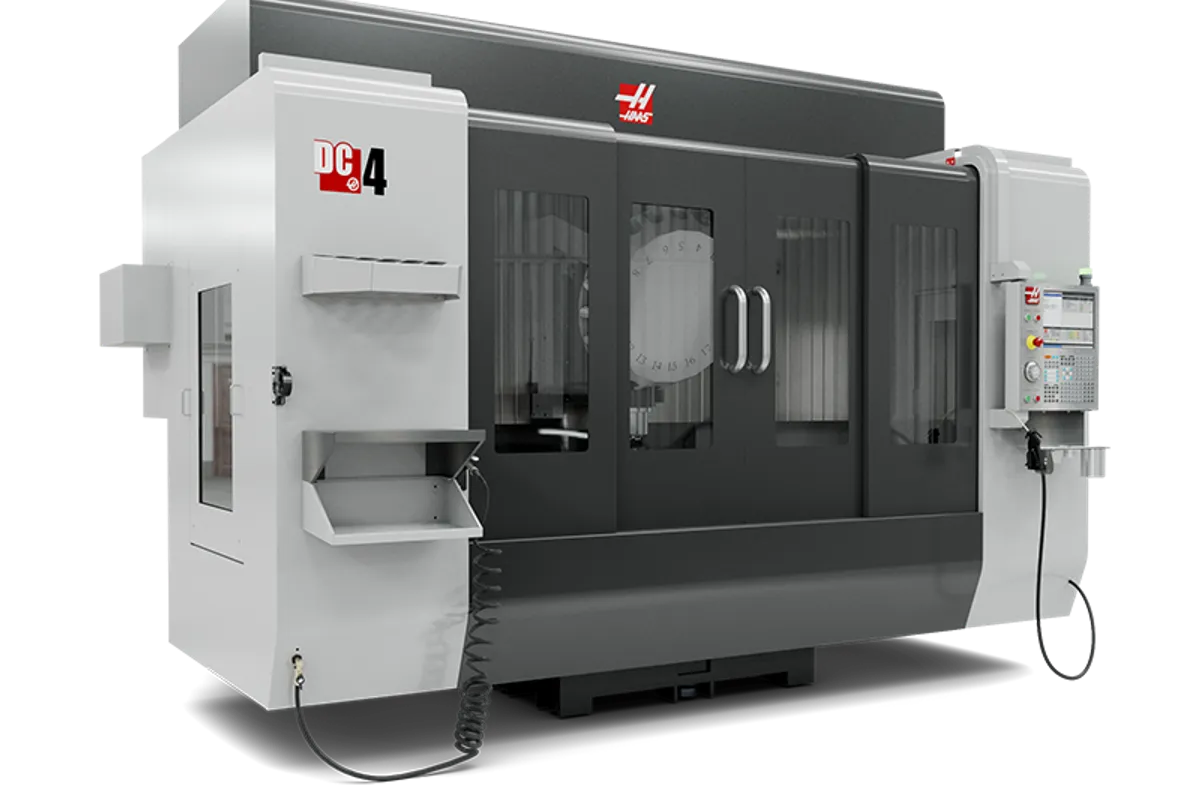

Haas DC-4-40 Drill Center

$95,000 - $125,000 Updated 2026-03-19

Key Specifications

X Travel

1,270 mm (50 in)

Y Travel

660 mm (26 in)

Z Travel

635 mm (25 in)

Max Spindle

10000 rpm

Spindle Taper

CT or BT 40

Tool Capacity

18+1 SMTC

Overview

The Haas DC-4-40 Drill Center is the largest 40-taper drill center in the Haas lineup, offering 1,270 x 660 x 635 mm (50 x 26 x 25 in) of travel. That 50-inch X-travel covers full-length extrusions, large structural panels, and multi-part fixtures that no other DC model can handle, all while maintaining the high-speed drilling DNA and rear chip discharge that define the DC series.

The spindle delivers 11.2 kW (15 hp) at 10,000 RPM with 62 Nm (46 ft-lbf) of torque at 1,700 RPM through an inline direct-drive system on a CT/BT 40 taper. Optional 12,000 and 15,000 RPM spindle upgrades are available. High-speed rigid tapping runs at 5,000 RPM with 4x retract speed.

The table measures 1,524 x 610 mm (60 x 24 in) and supports up to 680 kg (1,500 lb). The 18+1 SMTC delivers 1.75-second tool-to-tool and 2.0-second chip-to-chip times. Rapids hit 61.0 m/min (2,400 ipm) on all axes, keeping non-cutting time minimal even across the large travel envelope.

Rear chip discharge is standard, which separates the DC-4-40 from a similarly sized VF-5 or VF-6. When running dedicated drilling and tapping on large parts in a production line, automatic chip evacuation keeps the work zone clean and the operator focused on loading rather than chip management.

At approximately $95,000-$125,000 configured, the DC-4-40 is the go-to machine for shops running high-volume drill-and-tap work on large parts. With 25 inches of Z-travel and 1,500 lb table capacity, it also handles deeper drilling operations and heavier fixtures than the smaller DC models. The trade-off is floor space and a dedicated-purpose format that won't match a VF-5 for general milling versatility.

Full Specifications

Parameter	Value
X-Axis Travel	1,270 mm (50 in)
Y-Axis Travel	660 mm (26 in)
Z-Axis Travel	635 mm (25 in)
Max Spindle Speed	10000 rpm
Spindle Taper	CT or BT 40
Spindle Motor Power	15.0 hp
Spindle Torque Max	62 Nm (46 ft-lbf) @ 1,700 RPM
Spindle Drive	Inline Direct-Drive
Tool Capacity	18+1 SMTC
Tool To Tool	1.50 s
Chip To Chip	2.50 s
Max Tool Diameter	4.3 in
Max Tool Weight	11.0 lb
Table Size	1,524 x 610 mm (60 x 24 in)
Table Load Max	680 kg (1,500 lb)
Rapid Traverse Rate	61.0 m/min (2,400 IPM) all axes
Max Cutting Feed	30.5 m/min (1,200 IPM)
Max Tapping Speed	5,000 RPM
Chip Discharge	Rear discharge standard
Positioning Accuracy	±0.010 mm (±0.0004 in)
Repeatability	±0.005 mm (±0.0002 in)
Machine Weight	4,082 kg (9,000 lb)
Coolant Capacity	150 gal
CNC Control	Haas Next Generation Control (NGC)
Travels	S.A.E
X Axis	98.40 in
Y Axis	19.70 in
Z Axis	11.80 in
Spindle Nose To Table	5.9 in
Spindle	S.A.E
Max Rating	15.0 hp
Max Speed	10000 rpm
Max Torque	52.0 ft-lbf @ 3000 rpm
Drive System	Inline Direct-Drive
Taper	CT40
Bearing Lubrication	Grease Packed
Cooling	Liquid Cooled
Table	S.A.E
Length	102.4 in
Width	19.7 in
T Slot Width	0.630 in
T Slot Center Distance	3.94 in
Number Of Std T Slots	5
Max Weight On Table	1323 lb
Feedrates	S.A.E
Max Cutting	1100 ipm
Rapids On X	1200 ipm
Rapids On Y	1400 ipm
Rapids On Z	1400 ipm
Axis Motors	S.A.E
Max Thrust X	2054 lbf
Max Thrust Y	2054 lbf
Max Thrust Z	2054 lbf
Tool Changer	S.A.E
Type	Turret
Capacity	20
Max Tool Diameter Large	6.3 in
Max Tool Length	7.90 in
Tapping	S.A.E
General	S.A.E
Air Requirements	S.A.E
Air Required	4 scfm @ 100 psi
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	40 A
Input Ac Voltage High	440 VAC
Full Load Amps High	20 A
Dimensions Shipping	S.A.E
Domestic Pallet	169.0 in x 91.0 in x 109.0 in
Machine Weight	15400 lb
Domestic Pallet For Coolant Tank Top Cover	150.0 in x 90.5 in x 27.0 in
Weight Domestic Pallet Coolant Tank Top Cover	1,341 lb
Haas Rotary	HAAS MACHINE
Ha2ts	DC-4/40
Ha5c	DC-4/40
Ha5c T	DC-4/40
Ha5c2	DC-4/40
Ha5c2 T	DC-4/40
Ha5c3	DC-4/40
Ha5c3 T	DC-4/40
Ha5c4	DC-4/40
Ha5c4 T	DC-4/40
Ha5cs	DC-4/40
Hqda5	DC-4/40
Hrt100	DC-4/40
Hrt160	DC-4/40
Hrt160sp	DC-4/40
Hrt160ss	DC-4/40
Hrt200hs	DC-4/40
Hrt210	DC-4/40
Hrt210hs	DC-4/40
Hrt210ht	DC-4/40
Hrt210sp	DC-4/40
Hrt210ss	DC-4/40
Hrta5	DC-4/40
Hrta6	DC-4/40
T5c	DC-4/40
T5c2	DC-4/40
T5c3	DC-4/40
T5c4	DC-4/40
Th240	DC-4/40
Trt160	DC-4/40
Trt70	DC-4/40

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

1,270 mm (50 in) X-travel is the largest in any Haas drill center, handling full-length extrusions and large structural parts
40-taper spindle with 2,400 IPM rapids delivers high-speed drilling with strong tool rigidity across the full envelope
Rear chip discharge provides automatic chip evacuation that standard VMCs lack, critical for production drilling lines
1,500 lb table load and 60 x 24 inch table support heavy fixtures and multi-part setups
25 inches of Z-travel handles deeper drilling operations and taller workpieces than other DC models
Same NGC control and 40-taper tooling as VF-series for standardized shop floor programming

Limitations

15 hp spindle is optimized for drilling, not heavy milling; for versatile cutting on this envelope, use a VF-5 or VF-6
Large footprint consumes significant floor space for a single-purpose drill center
18+1 tool capacity may be limiting for complex jobs requiring many different drill and tap sizes
Dedicated drill center format sacrifices general milling versatility for chip evacuation advantage

Best For

High-volume drill-and-tap operations on large panels, extrusions, and structural components up to 50 inches Automotive chassis and frame component production with extensive hole patterns Production lines requiring 40-taper rigidity and automatic rear chip evacuation on large workpieces Aerospace panel and bracket production needing precision drilling across a wide envelope Multi-part fixture setups where the 60-inch table accommodates multiple smaller parts per cycle

Frequently Asked Questions

01 What does a new Haas DC-4-40 cost?

Base price starts around $95,000. With through-spindle coolant, probing, and spindle upgrade, configured price runs $110,000-$125,000.

02 What is the difference between the DC-4-40 and the DC-3-40?

The DC-4-40 extends X-travel from 1,016 mm to 1,270 mm (40 to 50 in) and adds 10 inches of Z-travel (635 vs 394 mm). Table size increases to 60 x 24 inches with 1,500 lb capacity. Same spindle and speed. Choose the DC-4-40 for the largest parts that need maximum travel.

03 Should I get a DC-4-40 or a VF-5?

The VF-5 has a larger spindle (20-30 hp depending on model) and more milling capability. The DC-4-40 adds rear chip discharge for dedicated drilling production lines. Choose the DC-4-40 for high-volume drilling with automatic chip evacuation; choose the VF-5 for mixed milling work.

04 Can the DC-4-40 handle milling work?

Light milling is possible with the 40-taper spindle, including face milling and shallow pocketing in aluminum. For significant milling or steel work, a VF-5 or VF-6 with more spindle power is the appropriate choice.
