YCM NSV66A

Q: How much does the YCM NSV66A cost?

The price estimate for the YCM NSV66A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-nsv66a#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

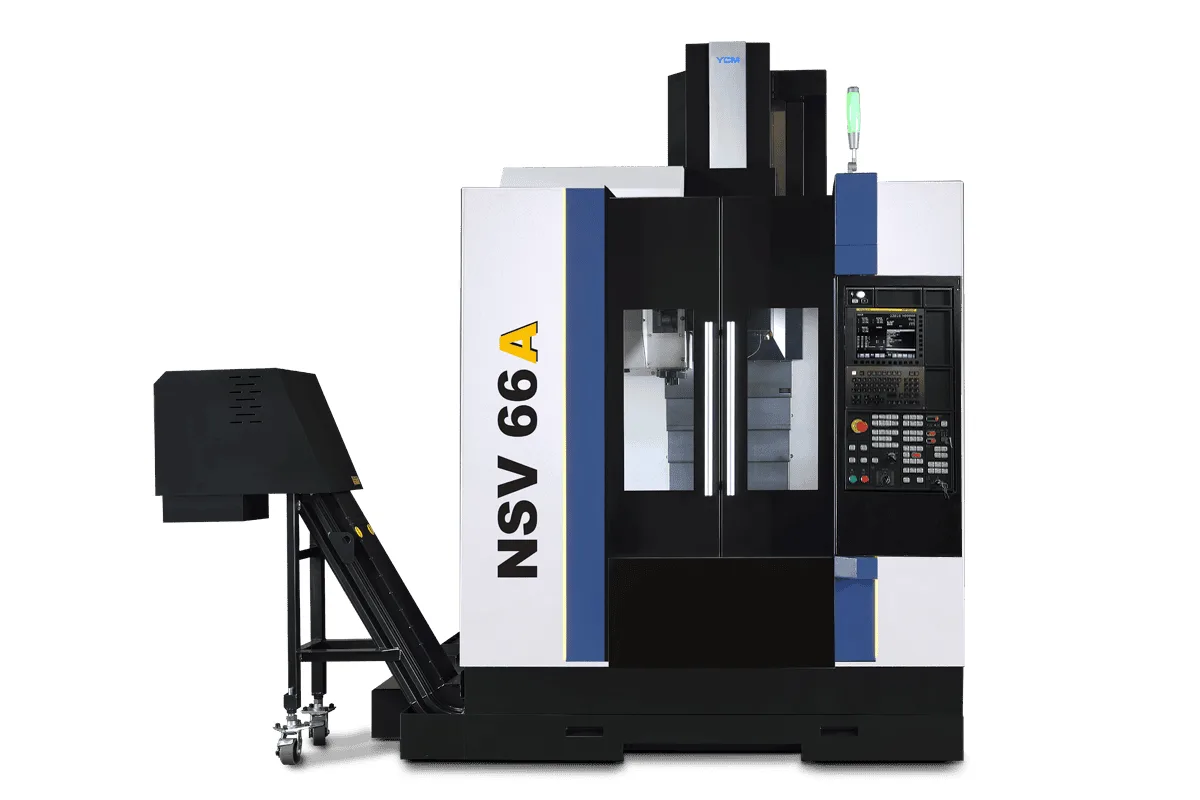

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

12,000 rpm; opt. 15,000 rpm

Spindle Taper

BBT40

Tool Capacity

30 tools

Table Size

840 x 560 mm (33.07 x 22.05 in)

Spindle Power

25 kW (33.5 HP); opt. 25 kW (33.5 HP)

x axis travel

660 mm (25.98 in)

How much does the YCM NSV66A cost?

Price estimate

Uncertain

We do not have a price for the YCM NSV66A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM NSV66A is a short-travel, high-speed vertical machining center with more spindle than its size suggests: 25 kW (33.5 HP) on a BBT40 taper, over travels of 660 mm (25.98 in) in X, 510 mm (20.08 in) in Y and 560 mm (22.05 in) in Z. Rapid traverse is 50 m/min (1,969 ipm) in X and Y and 48 m/min (1,890 ipm) in Z, the fastest listed among YCM's vertical machines.

Its weight tells you how it is built. At 6,500 kg (14,330 lb) it is more than twice as heavy as the NXV600A, a machine of similar travel. YCM describes an extra large delta column, roller type linear guideways on X, Y and Z, wide guideway spacing and double-nut ball screws. Mass and guideway width are what let a machine accelerate hard without the cut showing it.

The IDD spindle, YCM's isolated direct drive design with ceramic bearings, runs to 12,000 rpm, with 15,000 rpm as the option. The magazine is mounted on the column, which YCM says reduces vibration during the tool change. It holds 30 tools, and an automatic door keeps coolant and chips away from them.

The 840 x 560 mm (33.07 x 22.05 in) table is rated for 500 kg (1,102 lb) and has five 18 mm T-slots. Spindle nose to table spans 100~660 mm (3.94~25.98 in). Parts that fit inside that envelope and need a lot of metal removed quickly, particularly in aluminium, are the natural work.

Full Specifications

Parameter	Value
Max Spindle Speed	12,000 rpm; opt. 15,000 rpm
Spindle Motor Power	25 kW (33.5 HP); opt. 25 kW (33.5 HP)
Spindle Taper	BBT40
X Axis Travel	660 mm (25.98 in)
Y Axis Travel	510 mm (20.08 in)
Z Axis Travel	560 mm (22.05 in)
Distance Spindle Nose to Table	100~660 mm (3.94~25.98 in)
Table Size	840 x 560 mm (33.07 x 22.05 in)
T-Slots	5 x 18 x 100 mm (5 x 0.71 x 3.94 in)
Max Table Load	500 kg (1,102 lb)
Rapid Traverse Xyz	50/50/48 m/min (1,969/1,969/1,890 ipm)
Cutting Feed Rate	1~20,000 mm/min (0.04~787 ipm)
Tool Capacity	30 tools
Max Tool Weight	6 kg (13.2 lb)
Max Tool Size	ø76 x 300 mm (ø3 x 11.81 in); without adjacent tools ø125 x 300 mm (ø4.9 x 11.81 in)
Machine Weight	6,500 kg (14,330 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Rapids of 50 m/min (1,969 ipm) in X and Y and 48 m/min (1,890 ipm) in Z
25 kW (33.5 HP) BBT40 spindle on a 660 mm (25.98 in) machine
Roller type linear guideways on all three axes with an extra large delta column
30-tool column-mounted magazine with an automatic ATC door as standard
560 mm (22.05 in) of Z travel, generous for the X and Y strokes

Limitations

Table load is 500 kg (1,102 lb)
No magazine larger than 30 tools is listed
X travel of 660 mm (25.98 in) limits part length and multi-vise setups
A 6,500 kg (14,330 lb) machine for this envelope needs more floor capacity than lighter machines of the same travel

Best For

High-volume aluminium parts where 50 m/min (1,969 ipm) rapids shorten the cycle Compact parts that need 25 kW (33.5 HP) of spindle power Hard milling of small die components, which YCM names as a use of the IDD spindle

Frequently Asked Questions

01 How fast is the NSV66A?

Rapid traverse is 50 m/min (1,969 ipm) in X and Y and 48 m/min (1,890 ipm) in Z, with cutting feed of 1~20,000 mm/min (0.04~787 ipm). The spindle runs to 12,000 rpm as standard and 15,000 rpm as an option.

02 What are the travels and table size of the NSV66A?

X travel is 660 mm (25.98 in), Y is 510 mm (20.08 in) and Z is 560 mm (22.05 in). The table is 840 x 560 mm (33.07 x 22.05 in), carries 500 kg (1,102 lb) and has T-slots listed as 5 x 18 x 100 mm.

03 How does the NSV66A differ from the NSV66AM?

The NSV66A is the fast-axis version, with rapids of 50/50/48 m/min. The NSV66AM is listed at 24/24/24 m/min and adds an optional built-in motorized spindle of 20,000 rpm. Travels, table, magazine and the 6,500 kg (14,330 lb) weight are the same on both.

04 What tools can the magazine take?

The magazine holds 30 tools of up to 6 kg (13.2 lb) each. With adjacent pockets filled a tool can be ø76 x 300 mm, and ø125 x 300 mm without adjacent tools. The magazine sits on the column and has an automatic door.
