YCM DCV5021B

Q: How much does the YCM DCV5021B cost?

The price estimate for the YCM DCV5021B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-dcv5021b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

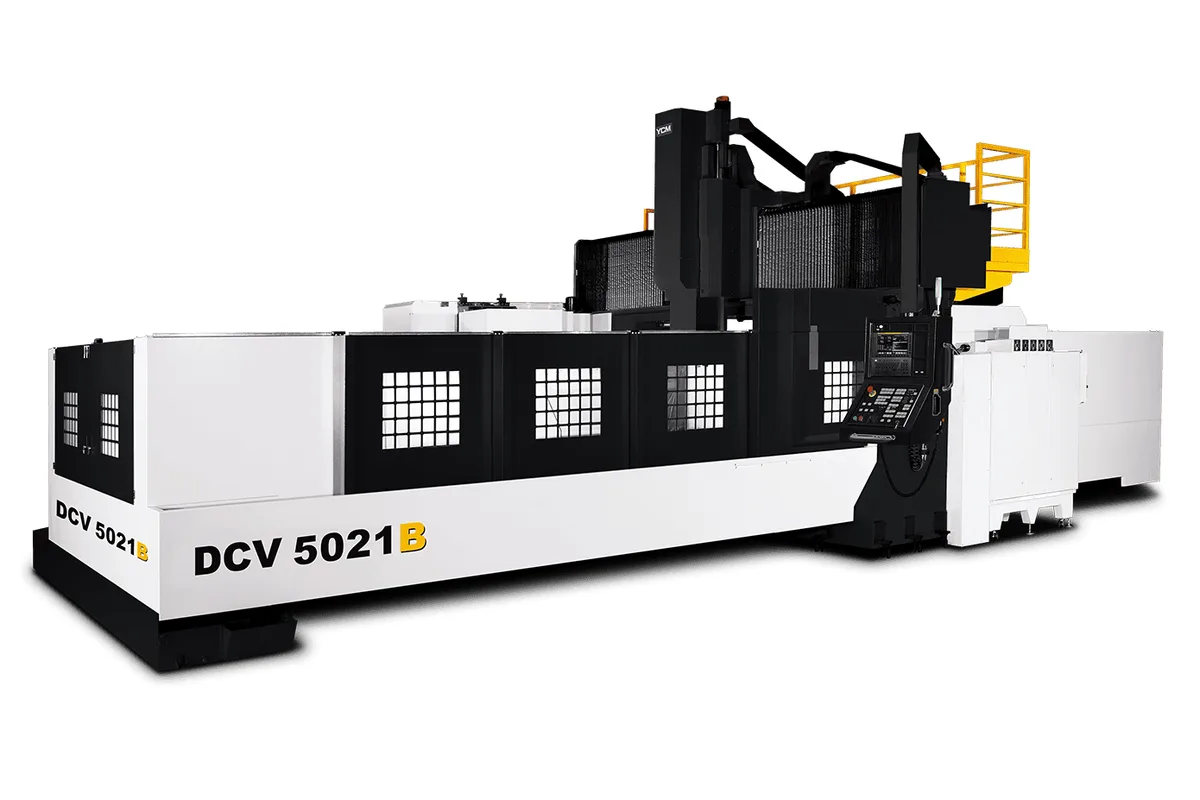

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

4,500 rpm; opt. 6,000 / 10,000 rpm

Spindle Taper

BBT50

Tool Capacity

40 tools; opt. 60 / 120 tools

Table Size

5,000 x 2,100 mm (196.85 x 82.68 in)

Spindle Power

25/25/45 kW (33.5/33.5/60 hp)

x axis travel

5,200 mm (204.73 in)

How much does the YCM DCV5021B cost?

Price estimate

Uncertain

We do not have a price for the YCM DCV5021B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM DCV5021B is a five-metre double-column machining center for long, heavy work. X travel is 5,200 mm, Y travel 2,100 mm, and the 5,000 x 2,100 mm table is rated for 23,000 kg.

At this length the machine serves industries that build big: shipbuilding and marine engines, wind turbine components, rail vehicle frames, press and machine tool structures. A five-metre table also lets a shop set up two or three mid-size dies at once and run them through the night on a large magazine, 40 tools as standard and 60 or 120 as options.

YCM states that the standard 4,500 rpm spindle has a 2-step gear transmission delivering 88.87 kgf-m at 241 rpm, and that it runs in roller type spindle bearings. The taper is BBT50. Faster spindles of 6,000 and 10,000 rpm are in the options column, and the power row reads 25/25/45 kW.

The X axis, which moves the table, is equipped with 3 roller type guideways and many slider blocks and is driven through a direct drive gearbox. Three more roller guideways on Y carry the saddle. The columns stand 2,320 mm apart on widened bases. X rapid is 12 m/min, with 15 m/min in Y and Z. Z travel is 762 mm, or 1,016 mm as an option, and the page lists a further range for a column raised by 250 mm. The machine weighs 51,000 kg.

Full Specifications

Parameter	Value
Max Spindle Speed	4,500 rpm; opt. 6,000 / 10,000 rpm
Spindle Motor Power	25/25/45 kW (33.5/33.5/60 hp)
Spindle Taper	BBT50
X Axis Travel	5,200 mm (204.73 in)
Y Axis Travel	2,100 mm (82.68 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Nose to Table	200~962 (450~1,212 [Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016]) mm
Distance Between Columns	2,320 mm (91.34 in)
Table Size	5,000 x 2,100 mm (196.85 x 82.68 in)
T-Slots	9 x 28 x 200 mm (9 x 1.10 x 7.87 in)
Max Table Load	23,000 kg (50,706 lb)
Rapid Traverse Xyz	12/15/15 m/min (472/591/591 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	40 tools; opt. 60 / 120 tools
Max Tool Weight	20 kg (44.1 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	51,000 kg (112,435 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

5,200 mm of X travel on a 5,000 x 2,100 mm table
Table load of 23,000 kg on a five-metre table
2-step gear spindle with 88.87 kgf-m at 241 rpm
X axis on 3 roller type guideways with a direct drive gearbox
40-tool magazine, with 60 and 120 optional, for multi-part setups

Limitations

X rapid is 12 m/min over a 5,200 mm stroke
Machine weight of 51,000 kg
Y travel of 2,100 mm; wider parts need the DCV5025B or DCV5030B
Standard spindle speed is 4,500 rpm

Best For

Long structural parts for marine, wind and rail equipment Two or three dies set up along one table Hard-material roughing with geared spindle torque

Frequently Asked Questions

01 What torque does the DCV5021B spindle have?

YCM states that the 2-step gear transmission provides 88.87 kgf-m of torque output at 241 rpm, which it calls ideal for machining hard material. Standard speed is 4,500 rpm on a BBT50 taper.

02 What are the travels and table size?

X travel is 5,200 mm and Y travel 2,100 mm. Z travel is 762 mm, or 1,016 mm as an option. The table is 5,000 x 2,100 mm with T-slots listed as 9 x 28 x 200 mm, and the columns are 2,320 mm apart.

03 How much does it carry and weigh?

The table is rated for 23,000 kg and the machine weighs 51,000 kg. The DCV4021B, one metre shorter on the same frame width, carries 20,000 kg and weighs 46,000 kg.

04 What wider five-metre models are there?

The DCV5025B has 2,500 mm of Y travel and 2,720 mm between columns. The DCV5030B has 3,000 mm of Y travel and 3,100 mm between columns. The DCV5025B and DCV5030B both use a 5,000 x 2,400 mm table rated for 23,000 kg.
