TRAK VMC10si

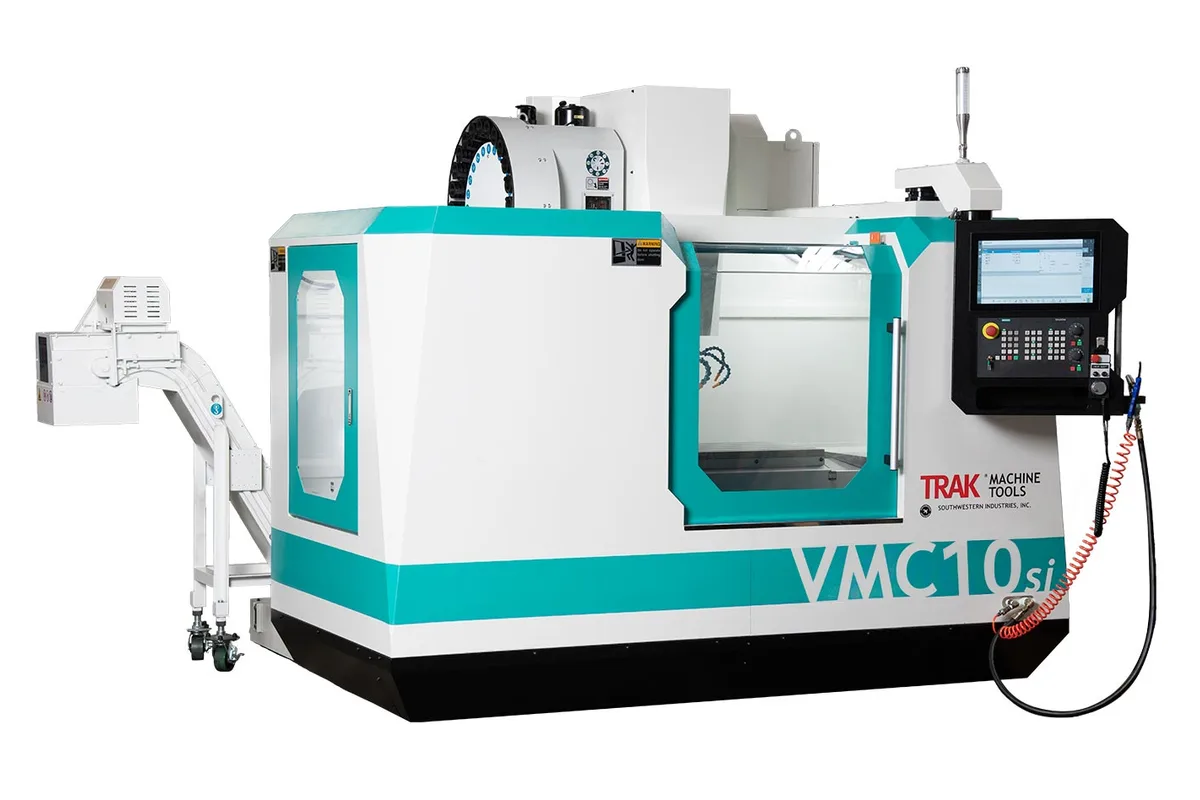

Image: southwesternindustries.com, TRAK Machine Tools
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the TRAK VMC10si cost?
Price estimate
We do not have a price for the TRAK VMC10si that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The TRAK VMC10si offers 40 x 20 x 20 in (1,016 x 508 x 508 mm) of travel over a 44.09 x 19.69 in (1,120 x 500 mm) table rated for 2,024 lbs (918 kg). It is a 40 Taper vertical machining center with a 12,000 rpm spindle and a dual-arm tool changer.
Start with the table, because that is where it differs from its neighbours. The VMC7si has a 35.43 x 19.69 in (900 x 500 mm) table and a 1,518 lbs (689 kg) load limit. The VMC12si goes to 51.18 x 23.62 in (1,300 x 600 mm) and 2,530 lbs (1,148 kg), with a 67 hp (50.0 kW) peak spindle. The VMC10si sits between them on length and load while keeping the spindle of the smaller machine: 41.5 hp (30.9 kW) peak / 20.1 hp (15.0 kW) continuous at 480V, 10 - 12,000 rpm.
Long X with 20 in of Y favours rows of parts. Soft-limit travel is 40.35 x 20.24 x 20.24 in (1,025 x 514 x 514 mm), slightly over the nominal figures, and the 44.09 in table is longer than the X stroke. Daylight under the spindle nose is 3.5 in (89 mm) to 23.50 in (597 mm).
Magazine capacity is 24 tools, with 30 optional, exchanged by the arm in 2.5 s. Limits per tool are 3.07 in (78 mm) in diameter and 18 lbs (8 kg) including holder. The holder standard is CAT40 unless the BT40 option is ordered, which involves a different ATC arm. Both rapid traverse and maximum cutting feed are 1,000 ipm (25.4 m/min), and a through-spindle coolant pump is listed at 3 kW / 4 HP and 319 psi.
Net weight is 9,900 lbs (4,491 kg), 10,250 lbs shipping. The electrical supply is 480 V three-phase at 41 A, or 208 V at 94 A with the transformer option.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 44.09 x 19.69 in (1,120 x 500 mm) |
| X Axis Travel | 40 in (1,016 mm) |
| Y Axis Travel | 20 in (508 mm) |
| Z Axis Travel | 20 in (508 mm) |
| Travel with Soft Limits | 40.35 x 20.24 x 20.24 in (1,025 x 514 x 514 mm) (X x Y x Z) |
| Rapid Traverse Xyz | 1,000 ipm (25.4 m/min) |
| Cutting Feed Rate | 1,000 ipm (25.4 m/min) max. |
| Max Table Load | 2,024 lbs (918 kg) |
| Distance Spindle Nose to Table | 3.5 in (89 mm) min. to 23.50 in (597 mm) max. |
| Spindle Taper | 40 Taper |
| Max Spindle Speed | 10 - 12,000 rpm |
| Spindle Nose Diameter | 3 in (76 mm) |
| Tool Clamping Force | 1,500 lbs (680 kg) at 90 psi |
| Tool Holder Type | CAT40 standard BT40 optional (must change ATC arm) |
| Tool Capacity | 24 (30 optional) (dual-arm ATC) |
| Max Tool Weight | 18 lbs (8 kg) incl. holder |
| Max Tool Diameter (full magazine) | 3.07 in (78 mm) |
| Tool Change Time | 2.5 s (arm) |
| Spindle Motor Power | 41.5 hp (30.9 kW) peak / 20.1 hp (15.0 kW) continuous (480V) |
| Coolant Through Spindle | 3 kW / 4 HP pump, 319 psi |
| Power Requirement | 480 V (432–528 V is acceptable), 3P, 41 A; 208 V with transformer option (200-240 V is acceptable), 3P, 94 A |
| Machine Dimensions | Footprint 144 x 112 in (3,658 x 2,845 mm) (W x L) with chip conveyor and coolant tank |
| Machine Height | 93.5 in (2,375 mm) min.; 108 in (2,743 mm) with head fully up |
| Machine Weight | 9,900 lbs net (4,491 kg); 10,250 lbs shipping |
| Coolant Capacity | 60 gal (227 L) |
| Air Requirement | 2.5 CFM, 18 SCFM at 90 psi |
Specifications sourced from southwesternindustries.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 2,024 lbs (918 kg) table load on a 44.09 x 19.69 in (1,120 x 500 mm) table
- 40 in (1,016 mm) of X travel, against 30 in (762 mm) on the VMC7si
- 12,000 rpm with 41.5 hp (30.9 kW) peak / 20.1 hp (15.0 kW) continuous at 480V
- 24 tools as built and 30 optional, where the TMC10 on the same table size has 16
- 1,000 ipm (25.4 m/min) for both rapid traverse and maximum cutting feed
Limitations
- Y and Z remain 20 in (508 mm); more needs the VMC12si with its 51.18 x 23.62 in (1,300 x 600 mm) table
- Peak power is the 41.5 hp (30.9 kW) of the VMC7si, not the 67 hp (50.0 kW) of the VMC12si
- Requires 480 V at 41 A, or the transformer option and 94 A at 208 V
- Tools above 3.07 in (78 mm) in diameter or 18 lbs (8 kg) do not fit the changer
- Switching to BT40 means the optional ATC arm
Best For
Frequently Asked Questions
01
The table is 44.09 x 19.69 in (1,120 x 500 mm) and the maximum table load is 2,024 lbs (918 kg). X travel is 40 in (1,016 mm), and Y and Z are 20 in (508 mm) each. With soft limits TRAK gives 40.35 x 20.24 x 20.24 in (1,025 x 514 x 514 mm).
02
The VMC7si has a 35.43 x 19.69 in (900 x 500 mm) table, a 1,518 lbs (689 kg) table load and weighs 8,360 lbs net (3,792 kg). The VMC10si has 40 in (1,016 mm) of X, a 44.09 x 19.69 in (1,120 x 500 mm) table, a 2,024 lbs (918 kg) load and weighs 9,900 lbs net (4,491 kg). Spindle rating, speed range and tool capacity are the same on both.
03
Same table size and the same net weight of 9,900 lbs (4,491 kg), different spindle and changer. The TMC10 lists 8,000 rpm standard, 15 hp (11.2 kW) peak, a 16-tool carousel and a 1,760 lbs (798 kg) table load. The VMC10si lists 12,000 rpm, 41.5 hp (30.9 kW) peak at 480V, 24 tools on a dual-arm changer and 2,024 lbs (918 kg).
04
The table has a coolant-through-spindle row giving a 3 kW / 4 HP pump at 319 psi. It does not say whether the system is included or an extra, so confirm that on the quotation. The coolant tank holds 60 gal (227 L).
05
The listed footprint is 144 x 112 in (3,658 x 2,845 mm) with chip conveyor and coolant tank, and height is 93.5 in (2,375 mm) minimum or 108 in (2,743 mm) with the head fully up. Power is 480 V three-phase at 41 A (432–528 V is acceptable), or 208 V at 94 A with the transformer option.
