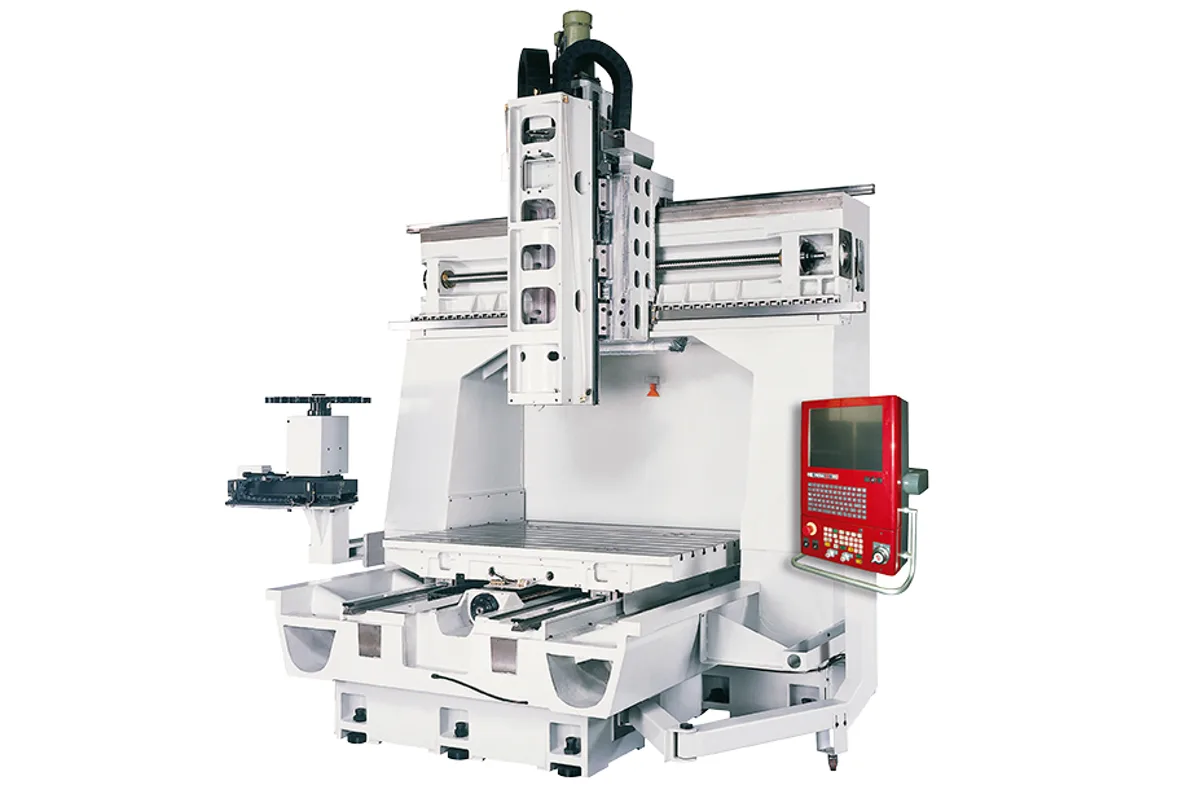

Fidia BSE 1700
Image: fidia.it, Fidia
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Accuracy
Repeatability
How much does the Fidia BSE 1700 cost?
Price estimate
We do not have a price for the Fidia BSE 1700 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fidia BSE 1700 is a 3-axis bridge-type high-speed machining centre with a fixed twin-column bridge and a moving table. Travels are 1,750 mm (68.9 in) in X, 1,000 mm (39.4 in) in Y and 750 mm (29.5 in) in Z, over a 1,600 x 1,000 mm (63.0 x 39.4 in) table that carries 3,000 kg (6,614 lb).
The distance between the columns is 1,750 mm (68.9 in), far wider than the Y travel. Fidia makes the point that this eases the mounting of large workpieces and fixtures, and that the high column helps with tall parts and long cutting tools. The twin column and bridge are a single Meehanite casting, which keeps the spindle close to the structure that carries it.
For a machine with a 3,000 kg (6,614 lb) table it is quick: axis feed rates are 30 / 30 / 30 m/min on roller guideways, and the built-in motor spindle runs at 18,000 rpm on HSK 63A with 26/32 kW, 124/154 Nm. A 24,000 rpm electrospindle is optional. Linear scales are in the basic machine, and accuracy to VDI 3441 is P = 0.012 mm positioning and PS = 0.008 mm repeatability.
The automatic tool changer has 24 positions as standard, with 32 / 40 / 60 optional, for tools up to 80 mm / 250 mm and 7 kg. The BSE 2200 is the larger size, with 2,200 mm (86.6 in) of X and a 6,000 kg (13,228 lb) table load on the same column spacing.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,600 x 1,000 mm (63.0 x 39.4 in) |
| T-Slots | 18 mm x 7 x 125 mm (size x No. x pitch) |
| Max Table Load | 3,000 kg (6,614 lb) |
| X Axis Travel | 1,750 mm (68.9 in) |
| Y Axis Travel | 1,000 mm (39.4 in) |
| Z Axis Travel | 750 mm (29.5 in) |
| Axis Feed Rate Xyz | 30 / 30 / 30 m/min |
| Distance Between Columns | 1,750 mm (68.9 in) |
| Distance Spindle Nose to Table | 107 ~ 857 mm |
| Floor to Table Top | 880 mm (34.6 in) |
| Spindle Motor | 26/32 kW, 124/154 Nm |
| Spindle Taper | HSK 63A |
| Max Spindle Speed | 18,000 rpm (24,000 rpm optional) |
| Tool Capacity | 24 positions (32 / 40 / 60 optional) |
| Tool Change Time | 3/10 sec (tool to tool) |
| Max Tool Size | 80 mm / 250 mm (diameter/length) |
| Max Tool Weight | 7 kg |
| Ballscrews | 55 / 50 / 50 mm diameter, 16 / 16 / 12 mm pitch (X/Y/Z) |
| Ballscrew Precision Class | C3 - mm/300 mm : 0.008 |
| Linear Roller Guide Width | 55 / 55 / 55 mm (X/Y/Z) |
| Positioning Accuracy | VDI 3441: P = 0.012 mm |
| Repeatability | VDI 3441: PS = 0.008 mm |
| Coolant Tank Capacity | 425 liters |
| Power Requirement | 20 kVA |
Specifications sourced from fidia.it — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,750 mm (68.9 in) between the columns for easy mounting of large workpieces
- Axis feed rates of 30 / 30 / 30 m/min with a 3,000 kg (6,614 lb) table load
- 18,000 rpm HSK 63A motor spindle with 26/32 kW, 124/154 Nm
- Linear scales in the basic machine; P = 0.012 mm positioning to VDI 3441
- One-piece Meehanite twin column and bridge
Limitations
- Maximum tool size is 80 mm / 250 mm and 7 kg, which rules out large face mills
- HSK 63A only; no larger taper is listed
- Z travel is 750 mm (29.5 in)
- 3-axis machine: a 4th axis rotary table is an option
Best For
Frequently Asked Questions
01
X is 1,750 mm (68.9 in), Y is 1,000 mm (39.4 in) and Z is 750 mm (29.5 in). The table is 1,600 x 1,000 mm (63.0 x 39.4 in) with a maximum loading of 3,000 kg (6,614 lb), and the distance between columns is 1,750 mm (68.9 in).
02
The axis feed rate is 30 / 30 / 30 m/min for X / Y / Z. The standard spindle turns at 18,000 rpm, and a 24,000 rpm HSK 63A electrospindle with 21/27 kW and 85/116 Nm is listed among the main options.
03
Positioning is P = 0.012 mm and repeatability is PS = 0.008 mm to VDI 3441, with values measured in an air conditioned room. Linear scales are included in the basic machine and the ballscrews are precision class C3.
04
The automatic tool changer has 24 positions, with 32 / 40 / 60 as options. Maximum tool size is 80 mm / 250 mm in diameter and length and maximum tool weight is 7 kg. The spindle cone is HSK 63A.
