YCM DCV4030B-5AF

Q: How much does the YCM DCV4030B-5AF cost?

The price estimate for the YCM DCV4030B-5AF is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-dcv4030b-5af#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

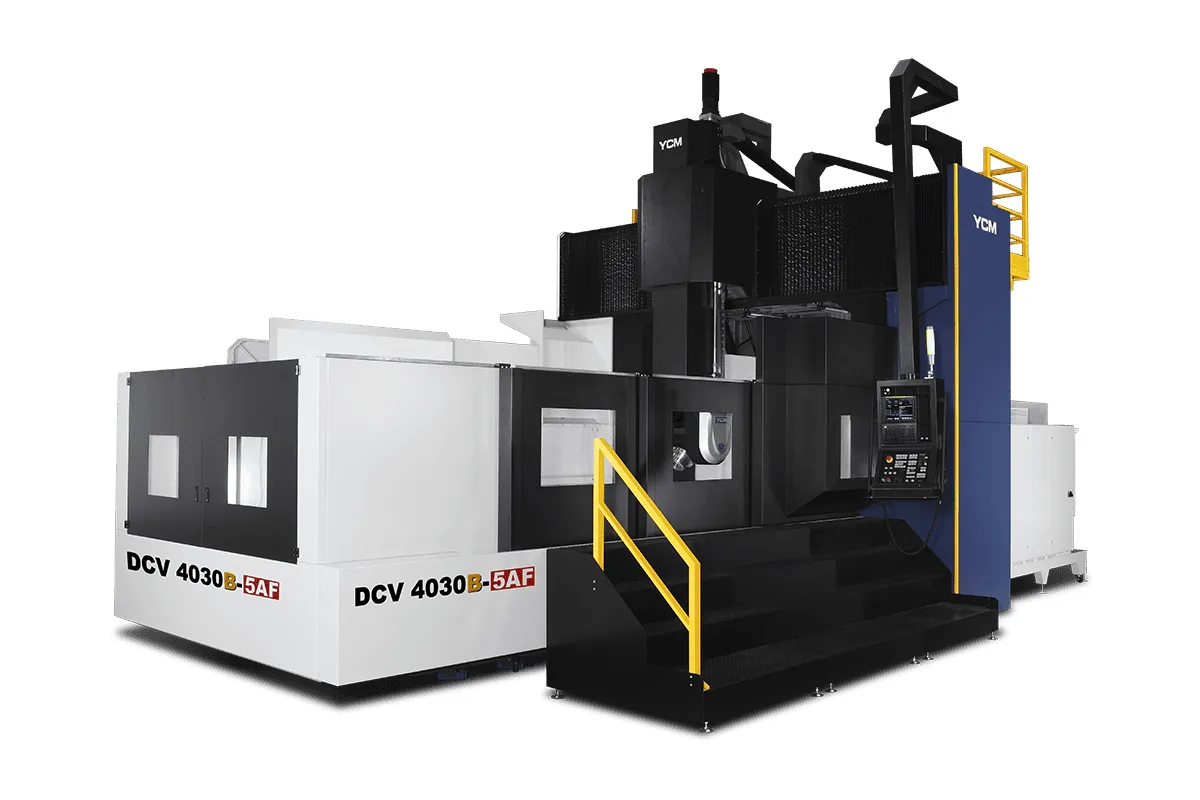

YCM DCV4030B-5AF 5-axis machining center

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

10,000 rpm

Spindle Taper

HSK A100

Tool Capacity

40 tools; opt. 60 / 120 tools

Table Size

4,100 x 2,400 mm (161.42 x 94.49 in)

Spindle Power

43 kW (58 HP)

x axis travel

4,065 mm (160.04 in)

How much does the YCM DCV4030B-5AF cost?

Price estimate

Uncertain

We do not have a price for the YCM DCV4030B-5AF that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM DCV4030B-5AF is a heavy double-column 5-axis machining center with a fork-type universal milling head. Linear travels are 4,065 mm in X, 3,500 mm in Y and 1,016 mm in Z; the head swivels ±110° in B and turns ±180° in C. The table is 4,100 x 2,400 mm and carries 20,000 kg.

The C-axis range is what separates the 5AF from the 5AX model that shares its frame. Here C is limited to ±180°, half the rotation of the DCV4030B-5AX, and the spindle is listed at 43 kW (58 HP) against 46 kW (62 HP). The head still reaches every orientation, but it has to unwind at the end of its range instead of turning on continuously. For positioned five-face work and for most contouring that is no handicap; for continuous spiral paths around a part it adds retract moves.

YCM describes the head, which it calls 5AX ROBO I, as a symmetrical fork made of nodular graphite cast iron, a shape chosen to limit heat distortion in heavy cuts. Both rotary axes use direct drive motors with HEIDENHAIN encoders, double direction roller bearings and disc type hydraulic clamps. The built-in motorized spindle has an HSK-A100 taper and runs to 10,000 rpm.

This is a machine for steel and cast iron as much as for aluminium. Tools weigh up to 13 kg. The linear axes are gearbox driven on roller type guideways, with rapids of 20 m/min in X and Y and 15 m/min in Z. Coolant through the spindle at 20 bar is optional. Machine weight is 58,000 kg.

Full Specifications

Parameter	Value
Max Spindle Speed	10,000 rpm
Spindle Motor Power	43 kW (58 HP)
Spindle Taper	HSK A100
X Axis Travel	4,065 mm (160.04 in)
Y Axis Travel	3,500 mm (137.80 in)
Z Axis Travel	1,016 mm (40 in)
Distance Spindle Center to Table Top	Vertical: 310~1,326 Horizontal: 650~1,666 mm
C Axis Range	±180°
B Axis Range	±110°
Table Size	4,100 x 2,400 mm (161.42 x 94.49 in)
T-Slots	11 x 28 x 200 mm (11 x 1.1 x 7.87 in)
Max Table Load	20,000 kg (44,092 lb)
Rapid Traverse Xyz	20/20/15 m/min (787/787/591 ipm)
Cutting Feed Rate	1~15,000/1~15,000/1~10,000 mm/min (0.04~591/0.04~591/0.04~394 ipm)
Tool Capacity	40 tools; opt. 60 / 120 tools
Max Tool Weight	13 kg (28.7 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	58,000 kg (127,867 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Fork-type universal head with direct drive B and C axes
HSK-A100 built-in spindle at 10,000 rpm for heavy 5-axis cutting
4,100 x 2,400 mm table rated for 20,000 kg
1,016 mm of Z travel as standard
Disc type hydraulic clamping on the rotary axes

Limitations

C axis is limited to ±180°
Spindle power of 43 kW (58 HP) is below the 46 kW (62 HP) of the DCV4030B-5AX
Coolant through the spindle is optional
Machine weight of 58,000 kg

Best For

Five-face machining of large dies, molds and castings Steel and cast iron parts up to 20,000 kg needing angled features Positioned 3+2 work where continuous C rotation is not required

Frequently Asked Questions

01 What is the difference between the DCV4030B-5AF and the DCV4030B-5AX?

The C-axis range and the spindle power. The DCV4030B-5AF has a C axis of ±180° and 43 kW (58 HP). The DCV4030B-5AX has ±360° and 46 kW (62 HP). Travels, table, load and weight are listed with the same figures.

02 What kind of head does it have?

A high dynamic universal milling head of symmetrical fork type, made of nodular graphite cast iron, with a built-in motorized spindle. The B and C axes use direct drive motors, HEIDENHAIN encoders and disc type hydraulic clamping.

03 What are the travels and table load?

X travel is 4,065 mm, Y travel 3,500 mm and Z travel 1,016 mm. The table is 4,100 x 2,400 mm with T-slots listed as 11 x 28 x 200 mm and carries 20,000 kg.

04 What spindle and tooling are used?

An HSK-A100 spindle with a maximum speed of 10,000 rpm. Tools can weigh up to 13 kg and measure ø125 x 350 mm with adjacent tools or ø240 x 350 mm without. The magazine holds 40 tools, or 60 or 120 as options.
