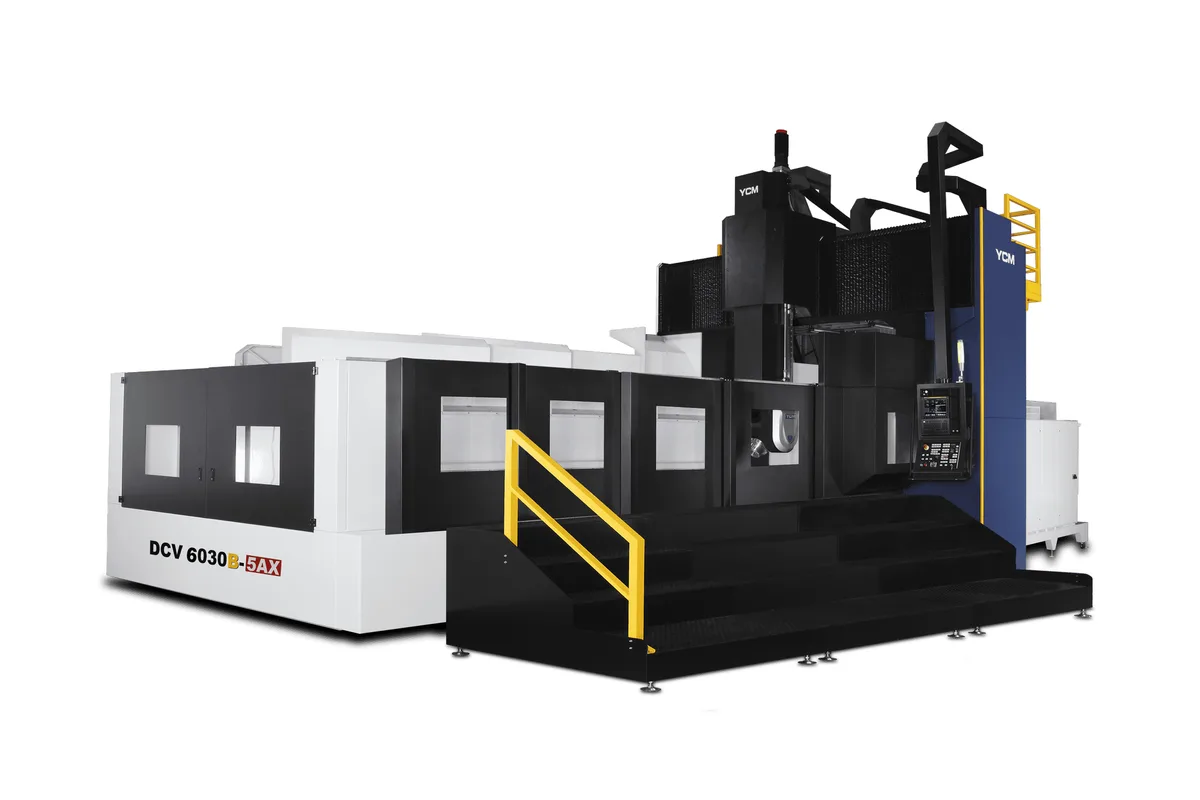

YCM DCV6030B-5AX
Image: ycmcnc.com, YCM
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the YCM DCV6030B-5AX cost?
Price estimate
We do not have a price for the YCM DCV6030B-5AX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The YCM DCV6030B-5AX is the largest 5-axis machine in YCM's list. It has 6,200 mm of X travel, 3,500 mm of Y and 1,016 mm of Z, a table of 6,000 x 2,400 mm that carries 25,000 kg, and a fork-type head with B and C axes around an HSK A100 spindle.
A purchase at this scale is a project. The machine weighs 64,000 kg before a workpiece is loaded, the moving table needs roughly twice its own length of floor, and the foundation, crane coverage and chip handling have to be planned around it. In return a shop gains the ability to machine parts that otherwise go to a handful of specialist subcontractors: wind turbine hubs and bedplates, large ship components, press crowns, and full-size molds for boat hulls and vehicle bodies.
Five-axis capability matters more as parts grow, because re-clamping a twenty-tonne part to reach another face costs a shift and risks the alignment. The head covers ±110° in B and ±360° in C on direct drive motors with HEIDENHAIN encoders, and both axes are clamped hydraulically by disc brakes for heavy positioned cuts.
The spindle delivers 46 kW (63 HP) at up to 10,000 rpm. X rapid is 12 m/min, Y is 20 m/min and Z is 15 m/min, with X cutting feed of 1~12,000 mm/min. The frame is a MEEHANITE casting on widened column bases, with gearbox drives and roller type guideways on the linear axes. Tools weigh up to 13 kg, in a 40, 60 or 120-tool magazine.
Full Specifications
| Parameter | Value |
|---|---|
| Max Spindle Speed | 10,000 rpm |
| Spindle Motor Power | 46 kW (63 HP) |
| Spindle Taper | HSK A100 |
| X Axis Travel | 6,200 mm (244.10 in) |
| Y Axis Travel | 3,500 mm (137.79 in) |
| Z Axis Travel | 1,016 mm (40 in) |
| Distance Spindle Center to Table Top | Vertical: 270~1,286 Horizontal: 650~1,666 mm |
| C Axis Range | ±360° |
| B Axis Range | ±110° |
| Table Size | 6,000 x 2,400 mm (236.22 x 94.49 in) |
| T-Slots | 11 x 28 x 200 mm (11 x 1.10 x 7.87 in) |
| Max Table Load | 25,000 kg (55,115 lb) |
| Rapid Traverse Xyz | 12/20/15 m/min (472/787/591 ipm) |
| Cutting Feed Rate | 1~12,000/1~15,000/1~10,000 mm/min (0.04~472/0.04~591/0.04~394 ipm) |
| Tool Capacity | 40 tools; opt. 60 / 120 tools |
| Max Tool Weight | 13 kg (28.66 lb) |
| Max Tool Size | ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in) |
| Machine Weight | 64,000 kg (141,094 lb) |
Specifications sourced from ycmcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 6,200 mm of X travel with full 5-axis head machining
- 6,000 x 2,400 mm table rated for 25,000 kg
- B axis of ±110° and C axis of ±360° with disc type hydraulic clamping
- HSK A100 spindle with 46 kW (63 HP)
- 3,500 mm of Y travel and 1,016 mm of Z travel
Limitations
- Machine weight of 64,000 kg and a long foundation
- X rapid is 12 m/min over 6,200 mm of travel
- Spindle speed is limited to 10,000 rpm
- Tools are limited to 13 kg
Best For
Frequently Asked Questions
01
X travel is 6,200 mm, Y travel 3,500 mm and Z travel 1,016 mm. The table is 6,000 x 2,400 mm with T-slots listed as 11 x 28 x 200 mm, the table load is 25,000 kg and the machine weighs 64,000 kg.
02
A fork-type universal milling head with a B axis of ±110° and a C axis of ±360°. YCM lists direct drive motors, HEIDENHAIN encoders, double direction roller bearings and disc type hydraulic clamping.
03
An HSK A100 spindle at 10,000 rpm with 46 kW (63 HP). Tools can weigh 13 kg and measure ø125 x 350 mm with adjacent tools or ø240 x 350 mm without. Coolant through the spindle at 20 bar is an option.
04
The DCV6035B has the same 6,200 mm X and 3,500 mm Y travels with a BBT50 spindle, 762 mm of Z travel and a weight of 65,000 kg. The DCV6030B-5AX adds the B/C head, has 1,016 mm of Z and uses HSK A100 tooling.
