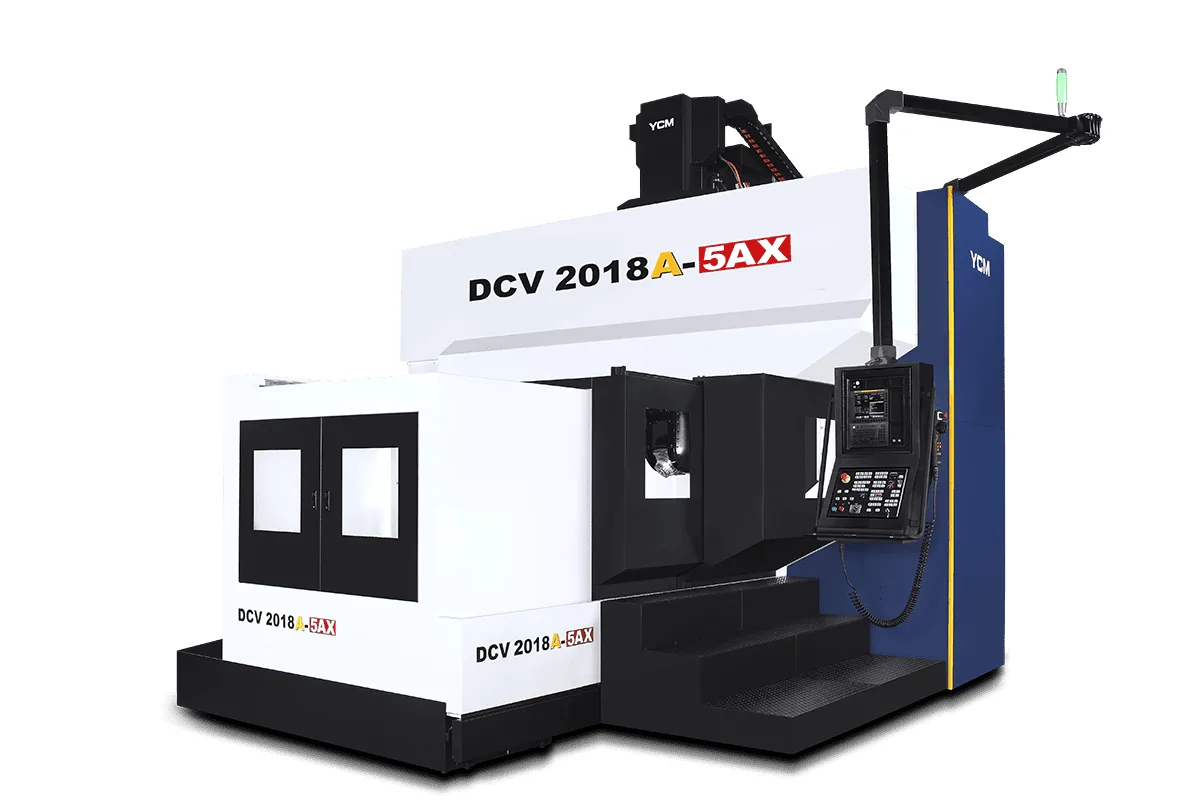

YCM DCV2018A-5AX
Image: ycmcnc.com, YCM
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the YCM DCV2018A-5AX cost?
Price estimate
We do not have a price for the YCM DCV2018A-5AX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The YCM DCV2018A-5AX is a double-column 5-axis machining center with a two-axis head. The B and C axes are in the spindle head, driven by direct drive motors, and the spindle is a built-in motorized unit that reaches 18,000 rpm on a 70 kW (94 HP) motor with an HSK A63 taper.
Putting both rotary axes in the head leaves the table free. It stays a plain 2,000 x 1,500 mm surface that carries 8,000 kg, and the workpiece never rotates or tilts. That is the layout for large, heavy parts that need five-axis access: aluminium structural components, composite lay-up tools, large molds with deep side walls, models and patterns. B swings ±110° and C turns ±360°, both at up to 100 rpm.
The head is built for accuracy as well as speed. The C axis runs in three roller bearings and the B axis in a cross roller bearing, a Heidenhain encoder is standard, clamping is pneumatic, and the B axis is held against dropping if the power fails.
Linear travels are 2,200 mm in X and 2,400 mm in Y, with 762 mm in Z or 1,016 mm as an option. The frame has one-piece columns 1,800 mm apart on a one-piece base, and roller type linear guideways on all three axes. X is gearbox driven; Y and Z are direct driven. Rapids are 24 m/min in X and Y and 20 m/min in Z, with cutting feed to 20,000 mm/min. The magazine holds 40 tools, or 60 or 120. Machine weight is 28,000 kg.
Full Specifications
| Parameter | Value |
|---|---|
| Max Spindle Speed | 18,000 rpm |
| Spindle Motor Power | 70 kW (94 HP) |
| Spindle Taper | HSK A63 |
| X Axis Travel | 2,200 mm (86.61 in) |
| Y Axis Travel | 2,400 mm (94.49 in) |
| Z Axis Travel | 762 mm (30 in); opt. 1,016 mm (40 in) |
| Distance Spindle Center to Table Top | 30"Vertical: 150-912 Horizontal: 430-1192/40" Vertical: 150-1116 Horizontal: 430-1446 mm |
| C Axis Range | ±360° |
| B Axis Range | ±110° |
| Table Size | 2,000 x 1,500 mm (78.74 x 59.06 in) |
| T-Slots | 8 x 22 x 180 mm (8 x 0.87 x 7.09 in) |
| Max Table Load | 8,000 kg (17,637 lb) |
| Rapid Traverse Xyz | 24/24/20 m/min (945/945/787 ipm) |
| Cutting Feed Rate | 1~20,000 mm/min (0.04~787 ipm) |
| Tool Capacity | 40 tools; opt. 60 / 120 tools |
| Max Tool Weight | 6 kg (13.2 lb) |
| Max Tool Size | ø76 x 300 mm (ø3 x 11.81 in); without adjacent tools ø125 x 300 mm (ø4.92 x 11.81 in) |
| Machine Weight | 28,000 kg (61,729 lb) |
Specifications sourced from ycmcnc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Two-axis B/C head with direct drive motors and no backlash
- 18,000 rpm built-in spindle driven by a 70 kW (94 HP) motor
- Fixed 2,000 x 1,500 mm table carrying 8,000 kg
- Heidenhain encoders on the rotary axes as standard
- Roller type linear guideways on X, Y and Z with rapids up to 24 m/min
Limitations
- HSK A63 tools are limited to 6 kg
- Standard Z travel is 762 mm, which a tilted head uses up quickly
- Smallest table of the three DCV A-series 5-axis models
- Machine weight of 28,000 kg
Best For
Frequently Asked Questions
01
Both are in the head. The B axis swivels ±110° and the C axis rotates ±360°. YCM lists direct drive motors with no backlash, a rotary speed of 100 rpm, Heidenhain encoders as standard and pneumatic clamping.
02
A built-in motorized spindle with an HSK A63 taper, a maximum speed of 18,000 rpm and a 70 kW (94 HP) motor. Tools can weigh up to 6 kg and measure ø76 x 300 mm with adjacent tools.
03
X travel is 2,200 mm and Y travel 2,400 mm. Z travel is 762 mm, or 1,016 mm as an option. The table is 2,000 x 1,500 mm with a load rating of 8,000 kg, and YCM gives the distance between columns as 1,800 mm.
04
Yes. The DCV3018A-5AX has 3,200 mm of X travel and a 3,000 x 1,500 mm table for 10,000 kg. The DCV4018A-5AX has 4,200 mm of X travel and a 4,000 x 1,500 mm table for 12,000 kg.
