YCM DCV5030B-5AX

Q: How much does the YCM DCV5030B-5AX cost?

The price estimate for the YCM DCV5030B-5AX is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-dcv5030b-5ax#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

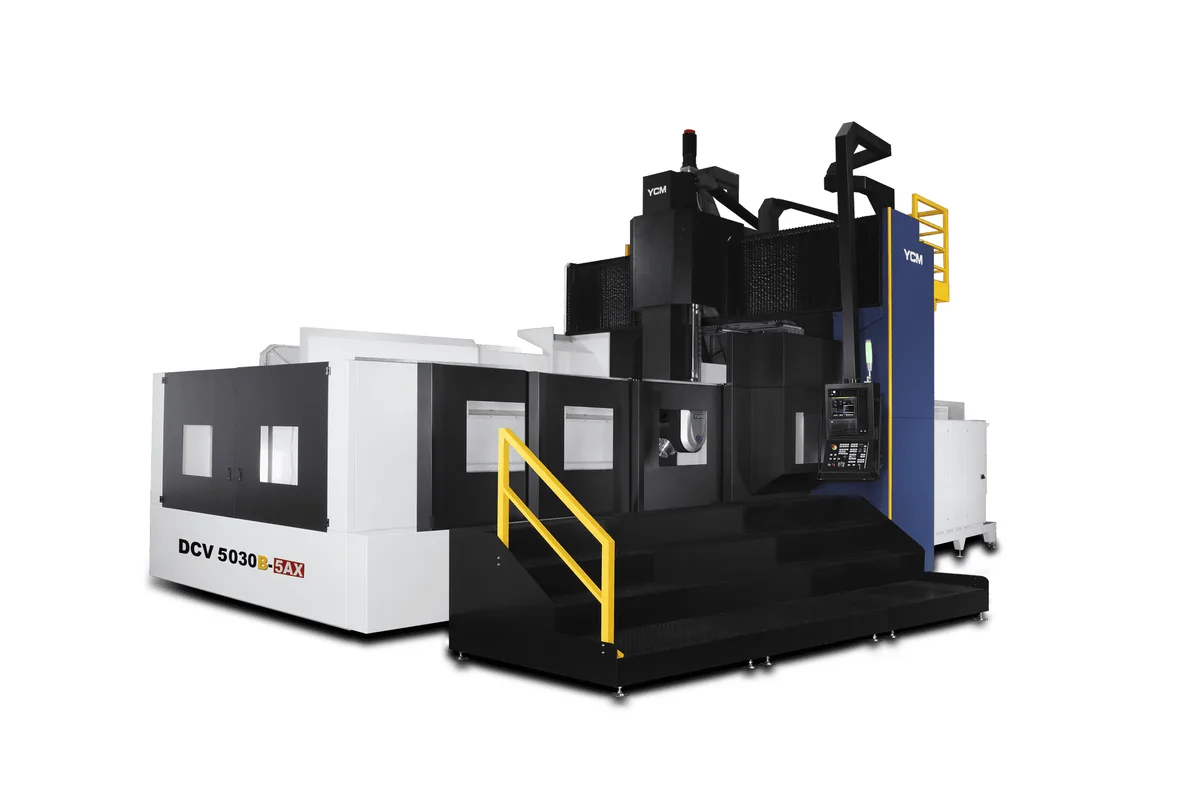

YCM DCV5030B-5AX 5-axis machining center

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

10,000 rpm

Spindle Taper

HSK A100

Tool Capacity

40 tools; opt. 60 / 120 tools

Table Size

5,000 x 2,400 mm (196.85 x 94.49 in)

Spindle Power

46 kW (63 HP)

x axis travel

5,200 mm (204.73 in)

How much does the YCM DCV5030B-5AX cost?

Price estimate

Uncertain

We do not have a price for the YCM DCV5030B-5AX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Five metres of X travel under a 5-axis fork head: the YCM DCV5030B-5AX extends YCM's heavy bridge-type 5-axis machine to a 5,000 x 2,400 mm table rated for 23,000 kg. Travels are 5,200 mm in X, 3,500 mm in Y and 1,016 mm in Z.

The work it is sized for comes from energy and transport: turbine casings and blade fixtures, hydro runner segments, ship propeller blades, structural nodes, and the large dies of the automotive industry. Such parts combine weight, awkward shape and surfaces that can only be reached with a tilted tool. With B at ±110° and C at ±360°, the head approaches from any side while the part stays clamped flat.

The machine has a full metre of Z as standard, 1,016 mm, where the three-axis DCV5030B has 762 mm. A swivelling head consumes vertical space when it lies over, so the extra stroke matters.

YCM gives the spindle as an HSK A100 unit at 10,000 rpm with 46 kW (63 HP), and its text quotes 36.04 kgf-m of torque at 500 rpm. Each tool may weigh 13 kg. The longer table brings the X rapid down to 12 m/min, with 20 m/min in Y and 15 m/min in Z; cutting feed is 1~12,000 mm/min in X. The control is a HEIDENHAIN TNC640 with tool center point management and dynamic collision monitoring. Magazine capacity is 40, 60 or 120 tools, and the machine weighs 61,000 kg.

Full Specifications

Parameter	Value
Max Spindle Speed	10,000 rpm
Spindle Motor Power	46 kW (63 HP)
Spindle Taper	HSK A100
X Axis Travel	5,200 mm (204.73 in)
Y Axis Travel	3,500 mm (137.80 in)
Z Axis Travel	1,016 mm (40 in)
Distance Spindle Center to Table Top	Vertical: 270~1,286 Horizontal: 650~1,666 mm
C Axis Range	±360°
B Axis Range	±110°
Table Size	5,000 x 2,400 mm (196.85 x 94.49 in)
T-Slots	11 x 28 x 200 mm (11 x 1.10 x 7.87 in)
Max Table Load	23,000 kg (50,706 lb)
Rapid Traverse Xyz	12/20/15 m/min (472/787/591 ipm)
Cutting Feed Rate	1~12,000/1~15,000/1~10,000 mm/min (0.04~472/0.04~591/0.04~394 ipm)
Tool Capacity	40 tools; opt. 60 / 120 tools
Max Tool Weight	13 kg (28.66 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	61,000 kg (134,481 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

5,200 mm of X travel with a 5-axis fork head
5,000 x 2,400 mm table rated for 23,000 kg
HSK A100 spindle with 46 kW (63 HP) and 36.04 kgf-m at 500 rpm
1,016 mm of Z travel as standard
HEIDENHAIN TNC640 with dynamic collision monitoring

Limitations

X rapid is 12 m/min and X cutting feed is limited to 12,000 mm/min
Machine weight of 61,000 kg
Spindle speed tops out at 10,000 rpm
Tool weight limit of 13 kg is below the 20 kg of the three-axis DCV5030B

Best For

Turbine, hydro and marine components with sculpted surfaces Large automotive dies needing 5-axis finishing Heavy parts up to 23,000 kg machined from several sides

Frequently Asked Questions

01 What are the travels of the DCV5030B-5AX?

X travel is 5,200 mm, Y travel 3,500 mm and Z travel 1,016 mm. The B axis swivels ±110° and the C axis rotates ±360°. The table is 5,000 x 2,400 mm and carries 23,000 kg.

02 What spindle does it use?

An HSK A100 spindle at 10,000 rpm with 46 kW (63 HP). YCM's feature text describes a dual step spindle motor that reaches 36.04 kgf-m of torque at 500 rpm. Tools can weigh up to 13 kg.

03 How fast are the axes?

Rapid traverse is listed as 12/20/15 m/min for X, Y and Z, and cutting feed as 1~12,000, 1~15,000 and 1~10,000 mm/min. The linear axes are driven through direct drive gearboxes on roller type guideways.

04 How does it compare with the DCV4030B-5AX?

The DCV4030B-5AX has 4,065 mm of X travel, a 4,100 x 2,400 mm table for 20,000 kg, an X rapid of 20 m/min and weighs 58,000 kg. The DCV5030B-5AX has 5,200 mm of X, a 23,000 kg rating and weighs 61,000 kg.
