YCM TCV3000A-5AX

Q: How much does the YCM TCV3000A-5AX cost?

The price estimate for the YCM TCV3000A-5AX is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-tcv3000a-5ax#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

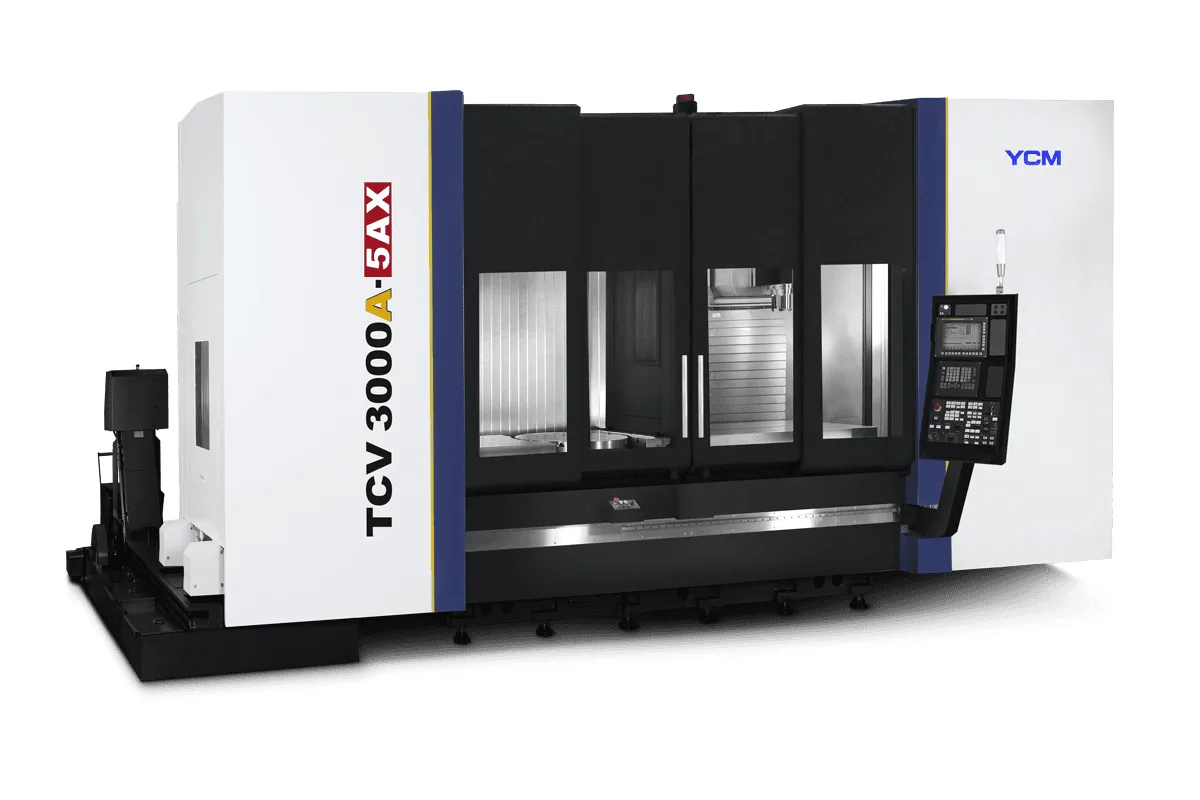

YCM TCV3000A-5AX 5-axis machining center

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

12,000 (15,000/16,000 [Big Torque]) rpm

Spindle Taper

BBT40; opt. HSK-A63

Tool Capacity

40 tools; opt. 80 tools

Table Size

3,500 x 800 mm (137.8 x 31.5 in)

Spindle Power

25 (25/50)[HDH] kW

x axis travel

3,000 mm (118.11 in)

How much does the YCM TCV3000A-5AX cost?

Price estimate

Uncertain

We do not have a price for the YCM TCV3000A-5AX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM TCV3000A-5AX is a travelling column 5-axis machining center with a swivelling spindle head (B axis) and a rotary table (C axis) set into a long fixed table. Linear travels are 3,000 mm (118.11 in) in X and 800 mm (31.50 in) in Y and Z.

The arrangement gives the machine two characters. The fixed table, 3,500 x 800 mm (137.8 x 31.5 in) and rated for 3,000 kg (6,614 lb), takes long parts that the head reaches at an angle: the B axis swivels ±110°, or ±120° with the Big Torque head. The ø800 mm (ø31.5 in) rotary table handles shorter parts on all sides and in full simultaneous motion. Its load is printed as 500 kg, with 1,000 kg in brackets marked HDH.

YCM gives the B-axis speed as 33.3 rpm and the C-axis speed as 50 rpm with the FANUC option or 90 rpm with the standard HEIDENHAIN control. Both rotary axes are described as low backlash.

The head holds YCM's own built-in spindle with a BBT40 double contact taper, 12,000 rpm in standard form. The table lists the standard power as 25 kW, and 15,000 or 16,000 rpm as options, the higher speed with Big Torque. YCM's text describes the top option as up to 16,000 rpm with 50 kW 67 HP and a 120° swivel angle; an HSK A63 tool shank is also optional. Rapids reach 40 m/min. The magazine holds 40 tools, or 80, and the machine weighs 24,700 kg (54,454 lb).

Full Specifications

Parameter	Value
Max Spindle Speed	12,000 (15,000/16,000 [Big Torque]) rpm
Spindle Motor Power	25 (25/50)[HDH] kW
Spindle Taper	BBT40; opt. HSK-A63
X Axis Travel	3,000 mm (118.11 in)
Y Axis Travel	800 mm (31.50 in)
Z Axis Travel	800 mm (31.50 in)
Distance Spindle Center to Table Top	0~800 (V);300~1,100 (H) (0~800 (V);336~1,136 (H)[Big Torque]) mm
B Axis Range	±110° (±120° [Big Torque])
Rotary Table Size	ø800 mm (ø31.5 in)
Max Rotary Table Load	500 (1,000 [HDH]) kg
Table Size	3,500 x 800 mm (137.8 x 31.5 in)
T-Slots	7 x 18 x 100 mm
Max Table Load	3,000 kg (6,614 lb)
Rapid Traverse Xyz	40/40/40 m/min
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	40 tools; opt. 80 tools
Max Tool Weight	6 kg (13.2 lb)
Max Tool Size	ø76 x 300 mm (ø3 x 11.81 in); without adjacent tools ø125 x 300 mm (ø4.92 x 11.81 in)
Machine Weight	24,700 kg (54,454 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Swivel head B axis of ±110° plus a ø800 mm (ø31.5 in) rotary table
3,000 mm (118.11 in) of X travel over a fixed 3,500 x 800 mm (137.8 x 31.5 in) table
In-house built-in spindle, with an option of up to 16,000 rpm and 50 kW 67 HP
Fixed table rated for 3,000 kg (6,614 lb)
40-tool magazine with 80 tools optional

Limitations

Rotary table load is printed as 500 kg, with 1,000 kg only for the HDH version
The Big Torque head and the 16,000 rpm spindle are options
C-axis speed is 50 rpm with the FANUC option against 90 rpm with HEIDENHAIN
Tools are limited to 6 kg (13.2 lb)

Best For

Long structural parts machined at compound angles with the swivel head 5-sided and simultaneous 5-axis work on parts that fit a ø800 mm (ø31.5 in) rotary table Shops that want long-bed 3-axis capacity and 5-axis work on one machine

Frequently Asked Questions

01 How are the five axes arranged on the TCV3000A-5AX?

X, Y and Z are linear, with the column travelling over a fixed table. The B axis is a swivel head with ±110°, or ±120° with the Big Torque option, and the C axis is a ø800 mm (ø31.5 in) rotary table in the table.

02 How fast are the rotary axes?

YCM lists a maximum B-axis speed of 33.3 rpm. The C axis reaches 50 rpm with the FANUC option and 90 rpm with the standard HEIDENHAIN control. C-axis positioning accuracy is given as under 10 sec.

03 What spindle options exist?

The standard built-in spindle is BBT40 at 12,000 rpm, with 25 kW in the table. Options are 15,000 rpm, and 16,000 rpm with Big Torque, which YCM describes as 50 kW 67 HP. An HSK A63 tool shank is optional.

04 How much weight can it carry?

The fixed table is rated for 3,000 kg (6,614 lb). The rotary table load is printed as 500 kg, with 1,000 kg in brackets marked HDH. The machine itself weighs 24,700 kg (54,454 lb).
