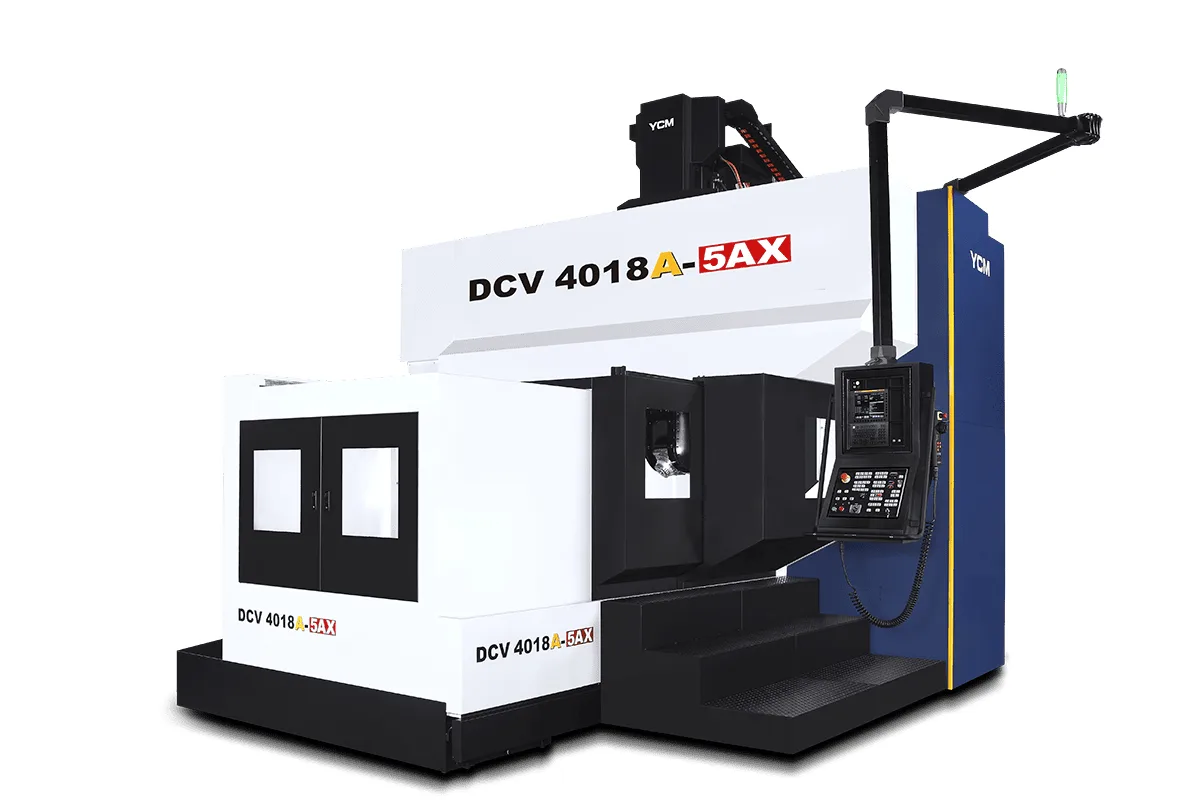

YCM DCV4018A-5AX 5-axis machining center

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

18,000 rpm

Spindle Taper

HSK A63

Tool Capacity

40 tools; opt. 60 / 120 tools

Table Size

4,000 x 1,500 mm (157.5 x 59.1 in)

Spindle Power

70 kW (94 HP)

x axis travel

4,200 mm (165.3 in)

How much does the YCM DCV4018A-5AX cost?

Price estimate

Uncertain

We do not have a price for the YCM DCV4018A-5AX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM DCV4018A-5AX is the four-metre version of YCM's high-speed bridge-type 5-axis machine. X travel is 4,200 mm, the fixed table measures 4,000 x 1,500 mm and takes 12,000 kg, and the two-axis head carries an 18,000 rpm HSK A63 spindle.

Length is its reason for existing. Long aerospace parts such as spars, stringers and wing skins, rail and bus body sections, boat hull molds and long trim fixtures need five-axis reach along four metres without a second setup. Because the rotary axes are in the head, a twelve-tonne mold on the table is no obstacle to tilting the tool.

The longer X axis is the one figure that gives ground. X rapid is 15 m/min and X cutting feed 1~15,000 mm/min, while Y and Z keep 24 and 20 m/min in rapid and 1~20,000 mm/min in feed. On a long part most of the fast contouring happens across Y and around the head axes, so the effect on cycle time is smaller than the numbers suggest.

Head and spindle are shared with the shorter models. B swings ±110° and C rotates ±360°, on direct drive motors with a roller bearing arrangement and pneumatic clamping. The spindle motor is 70 kW (94 HP). Y travel is 2,400 mm, Z travel 762 mm or optionally 1,016 mm, and the one-piece columns stand 1,800 mm apart. Forty tools are standard, 60 or 120 optional, each up to 6 kg. The machine weighs 36,000 kg.

Full Specifications

Parameter	Value
Max Spindle Speed	18,000 rpm
Spindle Motor Power	70 kW (94 HP)
Spindle Taper	HSK A63
X Axis Travel	4,200 mm (165.3 in)
Y Axis Travel	2,400 mm (94.5 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Center to Table Top	30" Vertical: 150-912 Horizontal: 430-1192 40" Vertical: 150-1116 Horizontal: 430-1446 mm
C Axis Range	±360°
B Axis Range	±110°
Table Size	4,000 x 1,500 mm (157.5 x 59.1 in)
T-Slots	8 x 22 x 180 mm (8 x 0.87 x 7.09 in)
Max Table Load	12,000 kg (26,455 lb)
Rapid Traverse Xyz	15/24/20 m/min (591/945/787 ipm)
Cutting Feed Rate	1~15,000/1~20,000/1~20,000 mm/min (0.04~591/0.04~787/0.04~787 ipm)
Tool Capacity	40 tools; opt. 60 / 120 tools
Max Tool Weight	6 kg (13.2 lb)
Max Tool Size	ø76 x 300 mm (ø3 x 11.81 in); without adjacent tools ø125 x 300 mm (ø4.92 x 11.81 in)
Machine Weight	36,000 kg (79,366 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

4,200 mm of X travel with 5-axis head machining
4,000 x 1,500 mm table rated for 12,000 kg
18,000 rpm spindle with a 70 kW (94 HP) motor
B axis of ±110° and C axis of ±360° on direct drive motors
B-axis anti-drop function at power outage

Limitations

X rapid is 15 m/min and X cutting feed stops at 15,000 mm/min
Tools are limited to 6 kg
Standard Z travel is 762 mm
Machine weight of 36,000 kg

Best For

Long aerospace parts such as spars, stringers and skins Hull molds, body-section tooling and long trim fixtures Heavy molds up to 12,000 kg that need 5-axis finishing

Frequently Asked Questions

01 How long a part can the DCV4018A-5AX machine?

X travel is 4,200 mm and the table is 4,000 x 1,500 mm. Y travel is 2,400 mm and Z travel 762 mm, with 1,016 mm as an option. The table load is 12,000 kg.

02 Is the X axis slower than on the shorter models?

Yes. Rapid traverse is 15/24/20 m/min and cutting feed is 1~15,000 mm/min on X against 1~20,000 mm/min on Y and Z. The DCV3018A-5AX is listed with an X rapid of 20 m/min.

03 What is the head design?

A B/C-axis head with DD motor drive and no backlash. The C axis includes three roller bearings, the B axis a cross roller bearing, a Heidenhain encoder is standard, and there is over-travel protection and a B-axis anti-drop function.

04 What tools does it use?

HSK A63 tools of up to 6 kg, ø76 x 300 mm with adjacent tools or ø125 x 300 mm without. The magazine holds 40 tools as standard and 60 or 120 as options.
