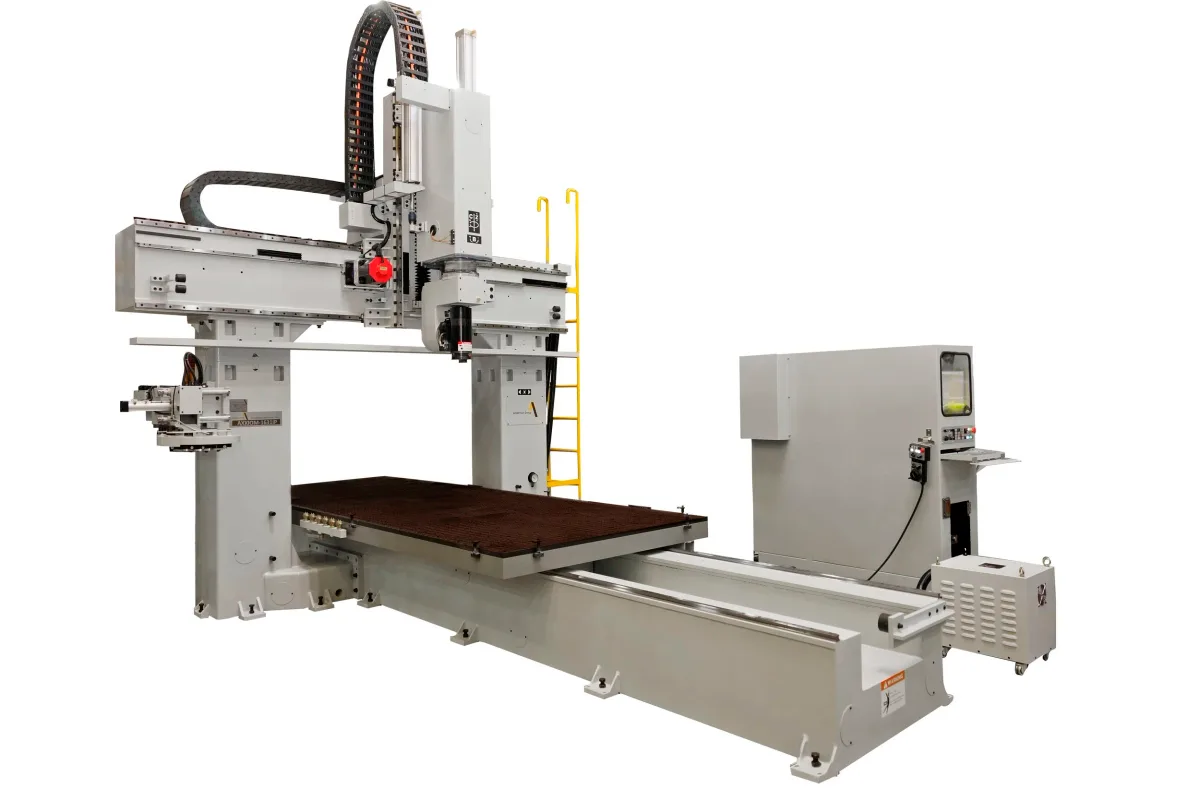

Anderson Axxiom 1631 IP
Image: andersonamerica.com, Anderson
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
vacuum zones
table size x
How much does the Anderson Axxiom 1631 IP cost?
Price estimate
We do not have a price for the Anderson Axxiom 1631 IP that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Anderson Axxiom 1631 IP stretches the AXXIOM 5-axis machine in one direction. Its table is 1600 mm (63”) by 3100 mm (122”), and the Y stroke grows to 3700 mm (145.6”) while X stays at 2200 mm (86”). Z stroke is 1000 mm (39.37”). Weight is 12,000 Kg (26,455 lbs.).
The added mass over the 8,600 Kg (18,960 lbs.) Axxiom 1616 IP is the price of the longer base, and it changes the installation more than the cutting. Foundation, rigging route and door openings should be checked against a machine of this mass before the order, since Anderson's table lists no dimensions for the series.
A long, narrow table suits long, narrow parts: boat and vehicle interior panels, aircraft cabin mouldings, bath and shower shells, long patterns. It also lets two shorter fixtures sit end to end, though with 1 vacuum zone listed the table cannot hold one and release the other by itself. Anderson notes that configurations and add-ons can be adapted, so zone layout is worth raising.
Nothing at the spindle changes with the size. Power is 18 HP, maximum speed 22,000 rpm, clamping HSK-63, and the tool changer row reads 8 / 10 / 12 / 16. Rapids are 60 m/min in X and Y and 20 m/min in Z, 85 m/min at most. The control is FANUC 31i or FANUC 0i. As with the rest of the series, rotary axis ranges are missing from the table. Automatic loading, an offload pusher/sweeper, CNC label placement, a bar-code reader and reverse air flow are optional.
Full Specifications
| Parameter | Value |
|---|---|
| Vacuum Zones | 1 |
| Table Size X | 1600 mm (63”) |
| Table Size Y | 3100 mm (122”) |
| X Axis Travel | 2200 mm (86”) |
| Y Axis Travel | 3700 mm (145.6”) |
| Z Axis Travel | 1000 mm (39.37”) |
| Rapid Traverse X | 60 meters/min (2,362”/min) |
| Rapid Traverse Y | 60 meters/min (2,362”/min) |
| Rapid Traverse Z | 20 meters/min (787”/min) |
| Maximum Rapid Traverse | 85 meters/min (3,350”/min) |
| Spindle Motor Power | 18 HP |
| Max Spindle Speed | 22,000 rpm |
| Spindle Taper | HSK-63 |
| Tool Capacity | 8 / 10 / 12 / 16 |
| Vacuum Pump | 10/25/40 HP |
| CNC Control | FANUC 31i or FANUC 0i |
| Machine Weight | 12,000 Kg (26,455 lbs.) |
| Reverse Air Flow | optional |
| Bar Code Reader | optional |
| Offload Pusher Sweeper | optional |
| Automatic Loading | optional |
| CNC Label Placement | optional |
Specifications sourced from andersonamerica.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1600 mm (63”) by 3100 mm (122”) table for long parts
- 3700 mm (145.6”) of Y stroke with 1000 mm (39.37”) of Z
- Keeps the 60 m/min X and Y rapids of the smaller model
- Automatic tool changer in the sizes listed as 8 / 10 / 12 / 16
- Fixed bridge keeps the spindle carrier stationary while the table moves
Limitations
- Weighs 12,000 Kg (26,455 lbs.), with no dimensions published for planning the installation
- X stroke remains 2200 mm (86”), so width does not grow with length
- Only 1 vacuum zone is listed for a 3100 mm (122”) table
- Rotary axis ranges and speeds are not in Anderson's table
Best For
Frequently Asked Questions
01
The table is 3100 mm (122”) in Y and 1600 mm (63”) in X. Y stroke is 3700 mm (145.6”) and X stroke 2200 mm (86”), so the head travels past the table in both directions. Z stroke is 1000 mm (39.37”).
02
Not by the listed rapids. Both columns show 60 m/min in X and Y, 20 m/min in Z and a maximum rapid traverse of 85 m/min. What changes is mass: 12,000 Kg (26,455 lbs.) for this model against 8,600 Kg (18,960 lbs.) for the Axxiom 1616 IP.
03
Weight and reach along the long axis. Both are listed at 12,000 Kg (26,455 lbs.), and the twin tables of the Axxiom 1616 IP PT give 3100 mm when locked together, the same length as this single table. The Axxiom 1616 IP PT has 2 vacuum zones and a 3810 mm (150”) X stroke; this model has 1 zone.
04
Reverse air flow, a bar-code reader, an offload pusher/sweeper, automatic loading and CNC label placement are each listed as optional. The vacuum pump is offered in 10, 25 or 40 HP sizes. Anderson also says the machine can be adapted with various configurations and add-ons.
