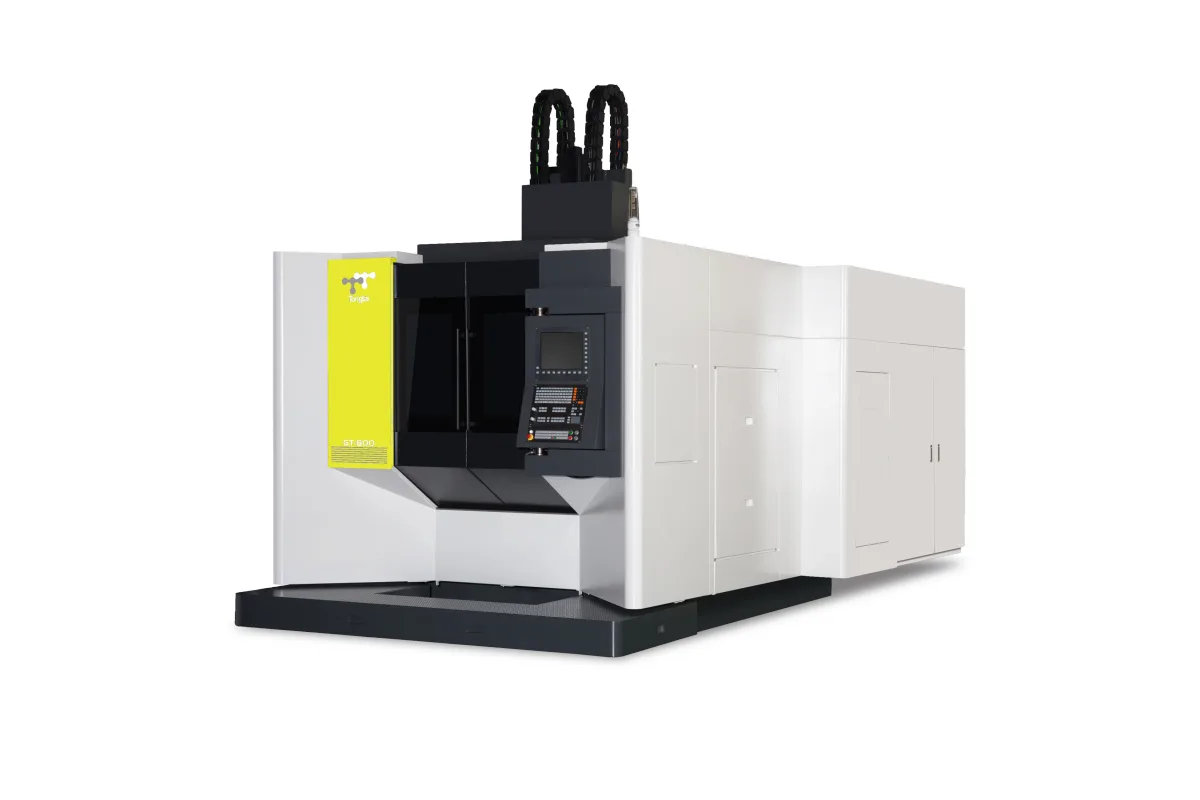

Anger Machining GT-630(F)
Image: anger-machining.com, Anger Machining
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
number of axes
How much does the Anger Machining GT-630(F) cost?
Price estimate
We do not have a price for the Anger Machining GT-630(F) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Anger Machining GT-630(F) is the mid-size GT gantry: a ø630 mm rotary-tilt table for 600 kg (1,323 lb) under linear axes of 760 mm (29.9 in) in X, 820 mm (32.3 in) in Y and 560 mm (22.0 in) in Z. Parts up to ø800x500 mm fit.
Its natural work is the engine-component range Anger lists for the series, blisks, impellers and engine housings, in sizes that outgrow the GT-500 and its 400 kg table. Compared with the GT-500, travel grows most in Y, from 610 mm to 820 mm, while acceleration drops to 5/5/5 m/s².
Long unattended runs are better supported here than on the smallest model. The magazine is listed with 32 tools and, in brackets, 40, 64 or 80 tools. Each tool may be 300 mm long and weigh 8 kg; diameter is 80 mm, or 125 mm in the bracketed version.
The spindle offer is common to the series: 15,000 - 24,000 rpm, 40/40 kW (S1/S6-40%) with 30/40 kW and 35/42 kW as alternatives, on a BBT-40 interface. So is the choice of direct or roller-cam drive for the swivel axes. The machine weighs 16,000 kg (35,273 lb) and shares its 2,200/4,960/3,290 mm outline with the GT-800E, so the two need the same floor space. Siemens and Heidenhain controls are listed.
Full Specifications
| Parameter | Value |
|---|---|
| Number of Axes | 5 |
| X Axis Travel | 760 mm (29.9 in) |
| Y Axis Travel | 820 mm (32.3 in) |
| Z Axis Travel | 560 mm (22.0 in) |
| Max Part Size | ø800x500 mm (ø31.5x19.7 in) |
| Axis Acceleration Xyz | 5/5/5 m/s² |
| Rapid Traverse Xyz | 48/48/48 m/min (1,890/1,890/1,890 ipm) |
| Max Spindle Speed | 15,000 - 24,000 rpm |
| Spindle Motor Power | 40/40 (30/40; 35/42) kW (S1/S6-40%) |
| Spindle Taper | BBT-40 |
| Tool Capacity | 32 (40; 64;80) pcs. |
| Max Tool Diameter (full magazine) | 80 (125) mm |
| Tool Length | 300 mm (11.8 in) |
| Tool Weight | 8 kg (18 lb) |
| Chip to Chip Time | 7 s (at 1,800 rpm) |
| Table Size | ø630 mm (ø24.8 in) |
| T-Slot Width | 18 mm (0.7 in) |
| Max Table Load | 600 kg (1,323 lb) |
| Machine Weight | 16,000 kg (35,273 lb) |
| Machine Dimensions | 2,200/4,960/3,290 mm (86.6/195.3/129.5 in) |
| Operating Voltage | 3x380 (Fanuc 3x220) V |
| Power Requirement | 45/60/80 kVA (depending on the spindle) |
| CNC Control | Siemens, Heidenhain |
| Lubrication | KSS |
Specifications sourced from anger-machining.com — verified 2026-10-05
Strengths & Limitations
Strengths
- ø630 mm table with a 600 kg load for parts up to ø800x500 mm
- Y travel of 820 mm on a gantry structure
- Magazine options of 32, 40, 64 or 80 tools
- Spindle speeds of 15,000 - 24,000 rpm
- Central chip removal and large door openings, as listed by Anger
Limitations
- Acceleration is 5/5/5 m/s², below the 10/10/10 m/s² of the GT-500
- Tool weight is limited to 8 kg on the BBT-40 interface
- Chip-to-chip time of 7 s adds up on parts with many tools
- Connected power of up to 80 kVA depending on the spindle
Best For
Frequently Asked Questions
01
600 kg (1,323 lb) on a ø630 mm table with 18 mm T-slots. The maximum part size is ø800x500 mm. Linear travels are 760 mm in X, 820 mm in Y and 560 mm in Z.
02
The table lists 32 tools and, in brackets, 40, 64 or 80 tools. All are BBT-40 tools of up to 300 mm in length and 8 kg. Chip-to-chip time is 7 s at 1,800 rpm.
03
The GT-800E has a ø800 mm table for 800 kg and parts up to ø900x500 mm, with 800 mm of X travel instead of 760 mm. Y and Z travel, footprint, spindle data and magazine options are the same in both columns. The GT-630(F) weighs 16,000 kg and the GT-800E 17,000 kg.
04
The power row reads 40/40 kW as S1/S6-40% ratings, with 30/40 kW and 35/42 kW as bracketed alternatives, at 15,000 - 24,000 rpm. Total connected power is 45, 60 or 80 kVA depending on the spindle chosen.
05
It can be. Anger lists an optional direct drive or a backlash-free gearbox on the A/C axis. Direct drives are described as the choice for high-precision, fast positioning and roller-cam systems as the choice for high torque during heavy-duty machining.
