YCM DCV4030B-5AX

Q: How much does the YCM DCV4030B-5AX cost?

The price estimate for the YCM DCV4030B-5AX is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-dcv4030b-5ax#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

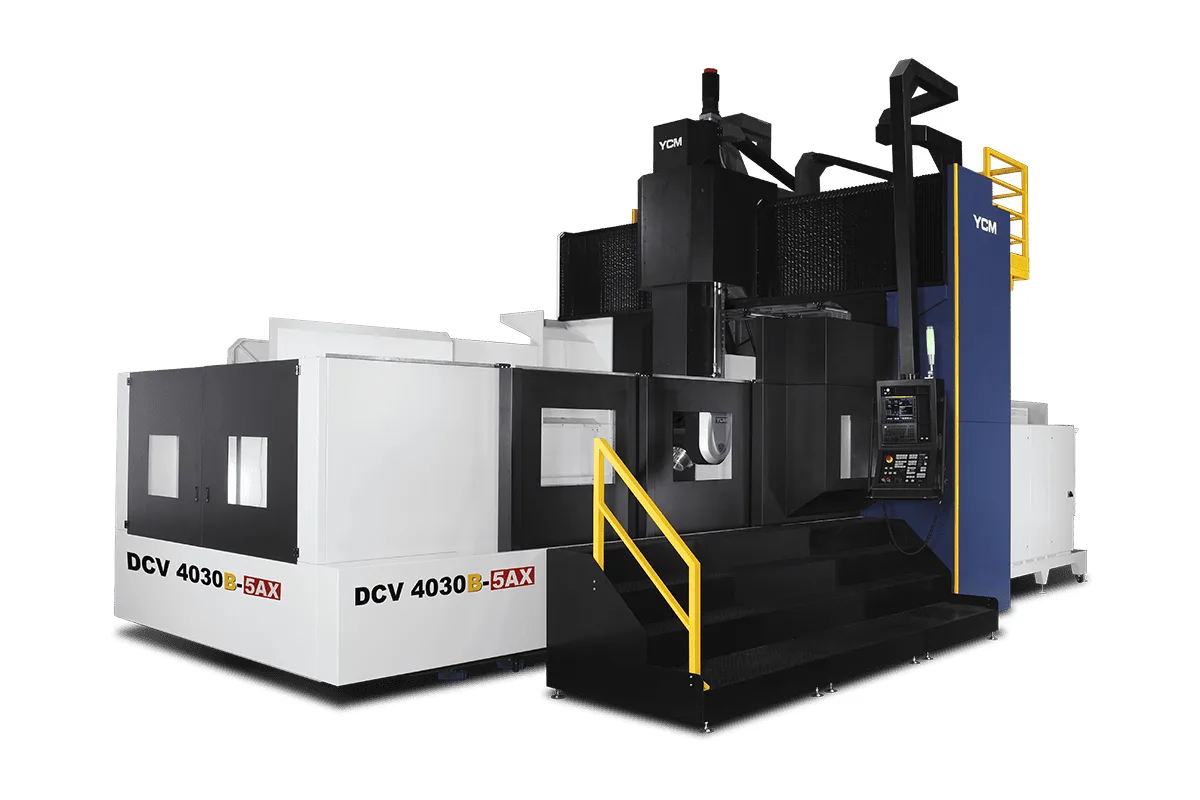

YCM DCV4030B-5AX 5-axis machining center

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

10,000 rpm

Spindle Taper

HSK A100

Tool Capacity

40 tools; opt. 60 / 120 tools

Table Size

4,100 x 2,400 mm (161.42 x 94.49 in)

Spindle Power

46 kW (62 HP)

x axis travel

4,065 mm (160.04 in)

How much does the YCM DCV4030B-5AX cost?

Price estimate

Uncertain

We do not have a price for the YCM DCV4030B-5AX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM DCV4030B-5AX is a simultaneous 5-axis bridge mill for large, heavy parts. A fork-type head with B and C axes carries an HSK A100 spindle at 10,000 rpm, the C axis turns ±360°, and the control is a HEIDENHAIN TNC640. Travels are 4,065 mm in X, 3,500 mm in Y and 1,016 mm in Z.

YCM names the control and its functions on the page, which is unusual in its catalogue and useful to a buyer. Tool center point management keeps the tool tip on the programmed path while the head rotates, and dynamic collision monitoring checks the head against the machine model as it moves. Program memory is given as 21 GB. A DXF converter is optional.

The spindle is rated 46 kW (62 HP). YCM's text describes a 10,000rpm spindle driven by a 46kW dual step motor that reaches 36.04kgf-m at 500rpm, so there is real torque at low speed for steel, with enough top speed for finishing. Tools may weigh 13 kg.

Under the head lies a 4,100 x 2,400 mm table for 20,000 kg. The body is a MEEHANITE casting with widened column bases, the three linear axes are driven through direct drive gearboxes, and they run on roller type guideways with many slider blocks. Rapids are 20 m/min in X and Y and 15 m/min in Z; cutting feed is 1~15,000 mm/min in X and Y and 1~10,000 mm/min in Z. B swivels ±110°. The machine weighs 58,000 kg.

Full Specifications

Parameter	Value
Max Spindle Speed	10,000 rpm
Spindle Motor Power	46 kW (62 HP)
Spindle Taper	HSK A100
X Axis Travel	4,065 mm (160.04 in)
Y Axis Travel	3,500 mm (137.80 in)
Z Axis Travel	1,016 mm (40 in)
Distance Spindle Center to Table Top	Vertical: 270-1286 Horizontal: 650-1666 mm
C Axis Range	±360°
B Axis Range	±110°
Table Size	4,100 x 2,400 mm (161.42 x 94.49 in)
T-Slots	11 x 28 x 200 mm (11 x 1.1 x 7.87 in)
Max Table Load	20,000 kg (44,092 lb)
Rapid Traverse Xyz	20/20/15 m/min (787/787/591 ipm)
Cutting Feed Rate	1~15,000/1~15,000/1~10,000 mm/min (0.04~591/0.04~591/0.04~394 ipm)
Tool Capacity	40 tools; opt. 60 / 120 tools
Max Tool Weight	13 kg (28.7 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	58,000 kg (127,867 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Full ±360° C axis and ±110° B axis in a fork-type head
HEIDENHAIN TNC640 with tool center point management and collision monitoring
46 kW (62 HP) HSK A100 spindle reaching 36.04kgf-m at 500rpm
4,100 x 2,400 mm table for 20,000 kg
Direct drive gearboxes on X, Y and Z

Limitations

Spindle speed is limited to 10,000 rpm
Z cutting feed is limited to 10,000 mm/min
The DXF converter is optional
Machine weight of 58,000 kg

Best For

Simultaneous 5-axis machining of large dies and molds Steel and cast iron parts with deep or angled features Large aerospace and energy components up to 20,000 kg

Frequently Asked Questions

01 Which control does the DCV4030B-5AX use?

YCM lists 5-axis simultaneous control by HEIDENHAIN TNC640, with a 21 GB program memory hard disk, tool center point management (TCPM) and dynamic collision monitoring (DCM). A DXF converter is an option.

02 What are the rotary axis ranges?

The B axis swivels ±110° and the C axis rotates ±360°. Both use direct drive motors with HEIDENHAIN encoders, double direction roller bearings and disc type hydraulic clamping.

03 How strong is the spindle?

The table lists 46 kW (62 HP) at 10,000 rpm on an HSK A100 taper. YCM's feature text gives a maximum torque output of 36.04kgf-m at 500rpm from a 46kW dual step spindle motor.

04 Are there longer versions?

Yes. The DCV5030B-5AX has 5,200 mm of X travel and a 5,000 x 2,400 mm table for 23,000 kg. The DCV6030B-5AX has 6,200 mm of X travel and a 6,000 x 2,400 mm table for 25,000 kg.
