YCM DCV3016B

Q: How much does the YCM DCV3016B cost?

The price estimate for the YCM DCV3016B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-dcv3016b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

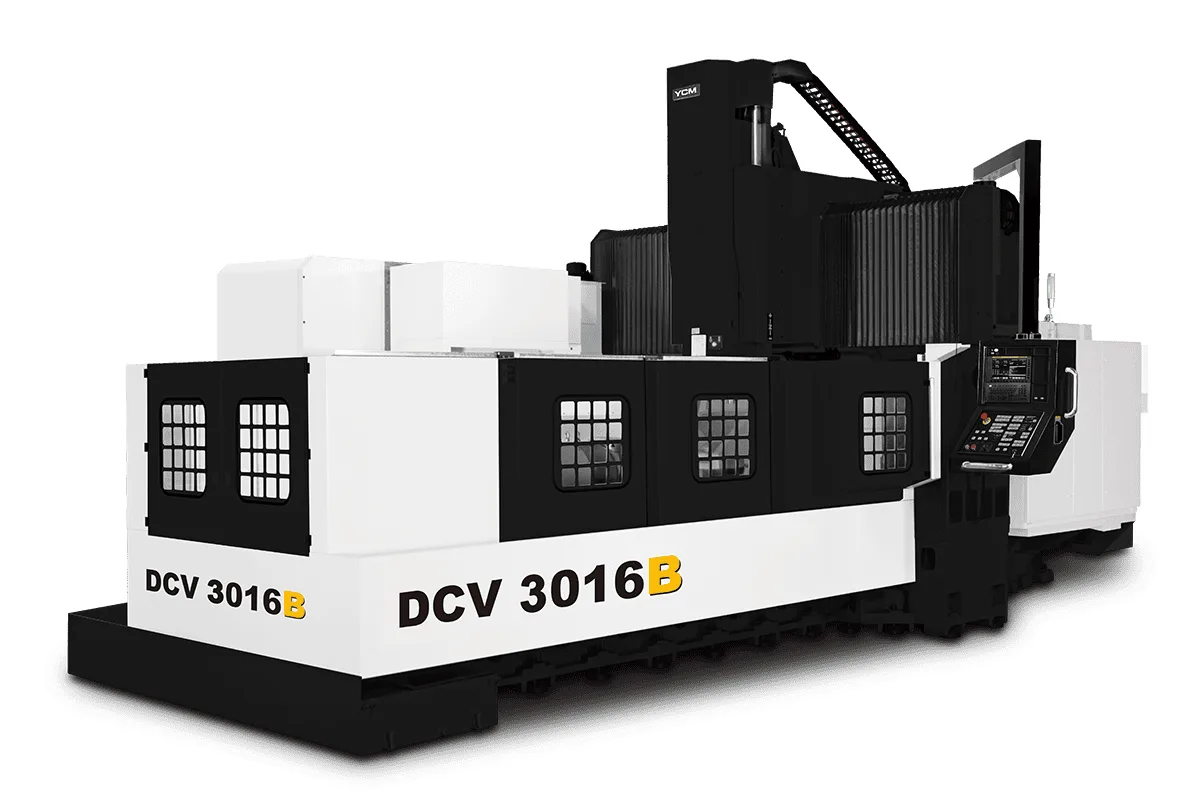

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

4,500 rpm; opt. 6,000 / 10,000 rpm

Spindle Taper

BBT50

Tool Capacity

40 tools; opt. 60 / 120 tools

Table Size

3,260 x 1,500 mm (128.35 x 59.06 in)

Spindle Power

25 kW (33.5 hp); opt. 25/45 kW (33.5/60 hp)

x axis travel

3,060 mm (120.47 in)

How much does the YCM DCV3016B cost?

Price estimate

Uncertain

We do not have a price for the YCM DCV3016B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM DCV3016B is a three-metre double-column machining center with a geared 50-taper spindle. X travel is 3,060 mm, Y travel 1,600 mm, and the table measures 3,260 x 1,500 mm with a load rating of 10,000 kg.

From this size upward the DCV machines are built for torque. The standard spindle turns 4,500 rpm through a hi-lo, 2-step gear transmission, and YCM gives its output as 88.87kgf-m at 241rpm, a combination meant for hard material. The spindle runs in roller type bearings. For shops that also finish, the options column lists 6,000 and 10,000 rpm spindles and a 45 kW rating beside the standard 25 kW.

Each axis is driven and guided to suit its load. X, which carries the table and workpiece, is driven directly by a gearbox. Y is supported by 3 roller type guideways with 6 slider blocks. Z is a hardened and ground box guideway with a large contact area for stability. Rapids are 20 m/min in X and 15 m/min in Y and Z.

Standard Z travel is 762 mm. A 1,016 mm Z travel is optional, and the spindle nose to table row also quotes a range for a column raised by 250 mm, so the daylight can be matched to the work. The magazine holds 40 tools, with 60 or 120 optional, each up to 20 kg. Column spacing is 1,820 mm. The machine weighs 31,000 kg.

Full Specifications

Parameter	Value
Max Spindle Speed	4,500 rpm; opt. 6,000 / 10,000 rpm
Spindle Motor Power	25 kW (33.5 hp); opt. 25/45 kW (33.5/60 hp)
Spindle Taper	BBT50
X Axis Travel	3,060 mm (120.47 in)
Y Axis Travel	1,600 mm (62.99 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Nose to Table	200~962 (450~1,212 [ Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016]) mm
Distance Between Columns	1,820 mm (71.65 in)
Table Size	3,260 x 1,500 mm (128.35 x 59.06 in)
T-Slots	9 x 22 x 150 mm (9 x 0.87 x 5.91 in)
Max Table Load	10,000 kg (22,046 lb)
Rapid Traverse Xyz	20/15/15 m/min (787/591/591 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	40 tools; opt. 60 / 120 tools
Max Tool Weight	20 kg (44.1 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	31,000 kg (68,343 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

2-step gear spindle with 88.87kgf-m of torque at 241rpm
10,000 kg table load on a 3,260 x 1,500 mm table
X axis driven directly by a gearbox
Y axis on 3 roller type guideways with 6 slider blocks
40-tool magazine with 60 or 120 optional

Limitations

Standard spindle speed is 4,500 rpm; faster spindles are options
Standard spindle power is 25 kW
Y and Z rapids are 15 m/min
Machine weight is 31,000 kg

Best For

Heavy roughing of die steel and cast iron Plates, mold bases and frames up to 3,260 x 1,500 mm Workpieces up to 10,000 kg

Frequently Asked Questions

01 What torque does the DCV3016B spindle produce?

YCM states that the 2-step gear transmission provides 88.87kgf-m of torque output at 241rpm. The standard spindle speed is 4,500 rpm with 25 kW, and the options column lists 6,000 and 10,000 rpm and 45 kW.

02 What are the travels and table dimensions?

X travel is 3,060 mm and Y travel 1,600 mm. Z travel is 762 mm, or 1,016 mm as an option. The table is 3,260 x 1,500 mm with T-slots listed as 9 x 22 x 150 mm, and the columns are 1,820 mm apart.

03 How are the axes driven?

The X axis is directly driven by a gearbox for smooth response and high torque. Y and Z use direct drive motors. Y runs on 3 roller type guideways with 6 slider blocks and Z on a hardened and ground box guideway.

04 Which model is the longer version?

The DCV4016B, with 4,065 mm of X travel, a 4,260 x 1,500 mm table rated for 12,000 kg and a weight of 35,000 kg. Y travel and column spacing are the same as on the DCV3016B.
