Hurco DCX22i 50T
Key Specifications
X Travel
Y Travel
Z Travel
Spindle Taper
Tool Capacity
Table Size
Overview

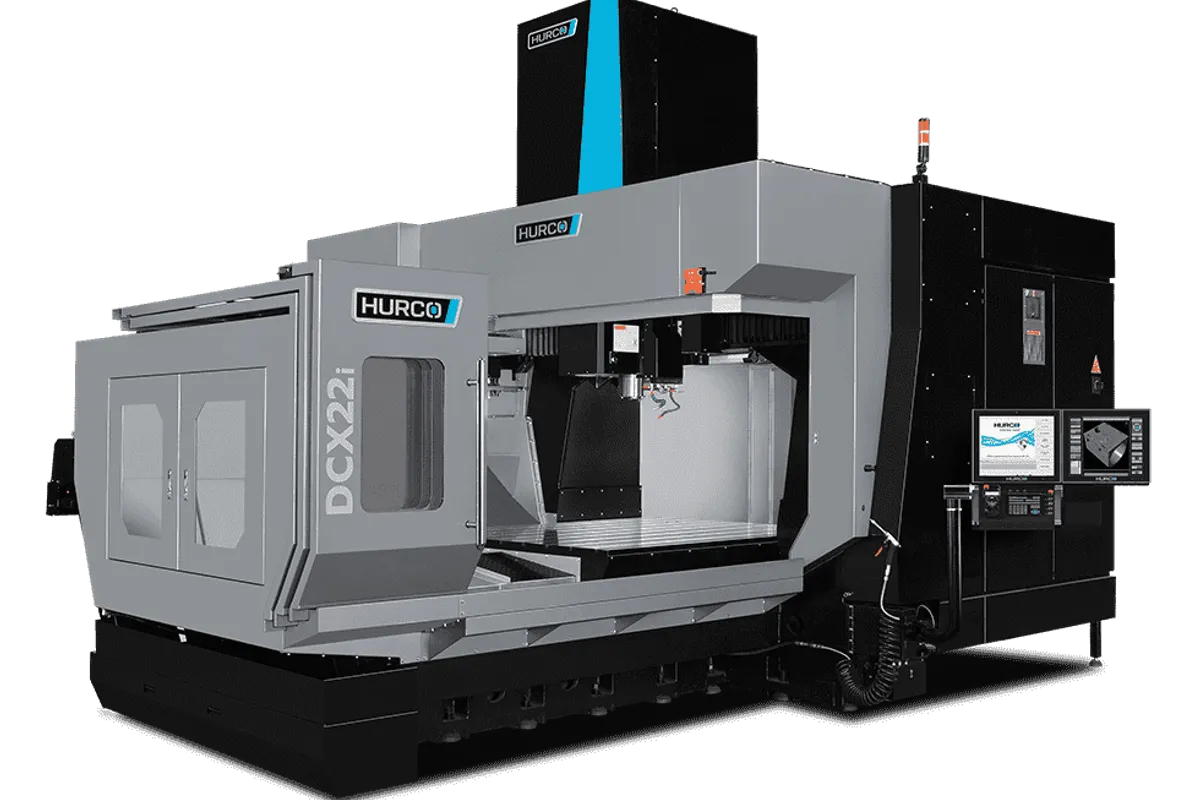

The Hurco DCX22i 50T is the high-torque variant of Hurco's entry-level double-column bridge VMC, sharing the same proven platform as the standard DCX22i but equipped with a more powerful spindle package designed for shops that need to push harder in steel, cast iron, and other demanding materials. The '50T' designation refers to the enhanced CAT 50 spindle with higher torque output, giving this machine the muscle to take aggressive depths of cut that would bog down lesser spindles.
The travel envelope matches the standard DCX22i: 2,200 mm (86.6 in) in X, 1,700 mm (66.9 in) in Y, and 750 mm (29.5 in) in Z, all supported by the same rigid double-column bridge structure. The table measures 2,400 x 1,500 mm (94.5 x 59.1 in) with a 6,000 kg (13,228 lb) load capacity. What changes is the spindle — the 50T package delivers 37 kW (50 HP) continuous power at 8,000 RPM maximum speed. The extra 7 kW over the standard model translates directly into heavier cuts and faster metal removal rates, particularly in face milling operations with large-diameter cutters.
The higher RPM ceiling of 8,000 vs. the standard's 6,000 also opens up better surface finish capability in aluminum. While 8,000 RPM still won't match a dedicated high-speed machine, it's a meaningful improvement that lets shops work more material types without the compromises that come with a 6,000 RPM cap. For shops that split their time between steel mold work and aluminum fixture plates, this is the better-balanced spindle.
Like all DCX-series machines, the DCX22i 50T rides on box-way guideways on all three linear axes. The double-column bridge design maintains spindle-to-workpiece alignment regardless of table position, eliminating the overhang effect that degrades accuracy on C-frame machines during long-reach cuts. The WinMax conversational control is standard, providing the same dual-path programming capability — conversational for shop-floor work, G-code for CAM-generated programs.
The 40-tool automatic tool changer handles CAT 50 tooling with a maximum tool weight of 15 kg (33 lb) and maximum tool diameter of 130 mm (5.1 in) with adjacent pockets empty. Chip management on a machine this size is critical, and Hurco equips the DCX22i 50T with a full-enclosure chip conveyor system and generous coolant capacity.
New DCX22i 50T machines price in the $280,000-$380,000 range, reflecting the premium for the upgraded spindle package. Used units are scarce since the 50T variant is less commonly ordered than the standard model. When they appear, expect pricing in the $140,000-$220,000 range for 2016-2022 vintage machines.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 2,200 mm (86.6 in) |
| Y-Axis Travel | 1,700 mm (66.9 in) |
| Z-Axis Travel | 750 mm (29.5 in) |
| Table Size | 82.7 x 63 in (2,100 x 1,600 mm) |
| Max Table Load | 6,000 kg (13,228 lb) |
| Spindle Speed | 8,000 RPM |
| Spindle Taper | CAT 50 |
| Spindle Motor Power | 29.7 hp @ 780 rpm (22 kW@ 780 rpm) |
| Rapid Traverse Xy | 15 m/min (590 IPM) |
| Rapid Traverse Z | 12 m/min (472 IPM) |
| Tool Capacity | 40 |
| Max Tool Weight | 33 lb (15 kg) |
| Max Tool Diameter | 4.9 in (125 mm) |
| Guideway Type | Box ways (all axes) |
| CNC Control | Hurco WinMax |
| Machine Weight | 45,122 lb (21,000 kg) |
| Travels Capacityx Y Z Axis Travel | 86.6 x 66.9 x 29.5 in (2,200 x 1,700 x 750 mm) |
| Spindle Nose To Table | 6 in / 35.5 in (152 mm / 902 mm) |
| Max Weight On Table | 17,600 lb (8,000 kg) |
| T Slot Size | 9 x 0.87 in (9 x 22 mm) |
| Distance B W Columns | 68.9 in (1,750 mm) |
| Spindlemax Spindle Speed | 8,000 rpm |
| Spindle Torque | 260 ft lbs @ 688 rpm (353 Nm @ 688 rpm) |
| Tool Changertool Type | CAT 50 (CAT/BT 50) |
| Max Tool Length | 11.8 in (300 mm) |
| Feedratesrapid Traverse Xyz Axis | 945 in/min (24 m/min) |
| Max Programmable Feedrate | 945 in/min (24 m/min) |
| Sizemax Operating Floor Space | 259.5 x 237.4 in (6,591 x 6,031 mm) |
| Machine Height | 152.6 in (3,875 mm) |
| Electricalpower Rating Full Load Kva | 56 KVA |
Specifications sourced from hurco.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 37 kW (50 HP) high-torque CAT 50 spindle delivers significantly higher metal removal rates than the standard 30 kW model, especially in heavy face milling and roughing operations
- 8,000 RPM maximum speed improves aluminum finishing performance over the standard 6,000 RPM model while retaining full CAT 50 torque for steel work
- Same proven double-column bridge construction as the standard DCX22i provides outstanding rigidity and thermal stability for heavy cutting
- WinMax conversational control eliminates the need for dedicated CAM software on many jobs — unique among double-column VMCs in this class
- Box-way construction on all axes delivers superior vibration damping during aggressive roughing operations with large-diameter cutters
- 6,000 kg table capacity handles the heaviest mold bases and die blocks without fixturing compromises or concern about table deflection
Limitations
- 8,000 RPM is still below the 10,000-15,000 RPM range preferred for high-speed aluminum finishing — shops primarily cutting aluminum should consider dedicated HSM platforms
- 15 m/min rapid traverse is slow for a machine with 2.2-meter X-travel, adding non-cutting time on positioning moves
- Higher spindle power draws more electrical capacity — verify your facility can supply the required three-phase service before ordering
- 40-tool magazine is the same as the standard model and may limit complex mold jobs requiring extensive tool libraries
- Premium pricing of $30,000-$40,000 over the standard DCX22i may not be justified for shops primarily working softer materials
Best For
Frequently Asked Questions
01
New DCX22i 50T machines typically price between $280,000 and $380,000 depending on options. The 50T spindle package adds approximately $30,000-$40,000 over the standard DCX22i. Used units are uncommon since the 50T is a less frequently ordered variant, but when available, 2016-2022 machines trade in the $140,000-$220,000 range.
02
The primary difference is the spindle. The standard DCX22i has a 6,000 RPM, 30 kW spindle. The 50T upgrades to 8,000 RPM and 37 kW (50 HP) continuous power. The higher torque enables heavier cuts in harder materials, and the extra 2,000 RPM improves surface finish in aluminum. Travels, table size, and all other mechanical specifications are identical. Choose the 50T if your work regularly involves heavy roughing in tool steels or if you need better aluminum performance.
03
Spindle swaps on double-column machines are technically possible but rarely cost-effective. The 50T spindle, cartridge, drive, and associated electrical components can cost as much as the original price premium when retrofitted. If you anticipate needing the higher power, order the 50T from the factory. Hurco's factory retrofit program can provide a quote, but expect $40,000-$60,000 installed.
04
If more than 30% of your work involves heavy roughing in tool steel, cast iron, or stainless, the 50T spindle pays for itself through shorter cycle times. The higher torque allows deeper cuts with larger-diameter tools, reducing the number of passes needed. For shops primarily doing finish work or cutting aluminum, the standard spindle is adequate and the savings are better spent on tooling or probing options.
05
The DCX22i 50T requires three-phase power, typically 480V in North America. The 37 kW spindle and servo drives draw approximately 80-100 kVA during peak loading. Verify with your electrician that your service panel can support this load alongside your other equipment. Hurco provides detailed electrical requirements with each quotation.
06
The Mazak VTC-800/30SR is a comparable large-capacity VMC, though it uses a C-frame design rather than double-column. The DCX22i 50T offers superior rigidity from its bridge construction, which matters most in heavy cutting. The Mazak offers faster rapids and a more extensive automation ecosystem. The Hurco's WinMax control advantage is significant for shops without dedicated CAM programmers. Price-wise, they're in a similar range.
