TRAK DPM RX5

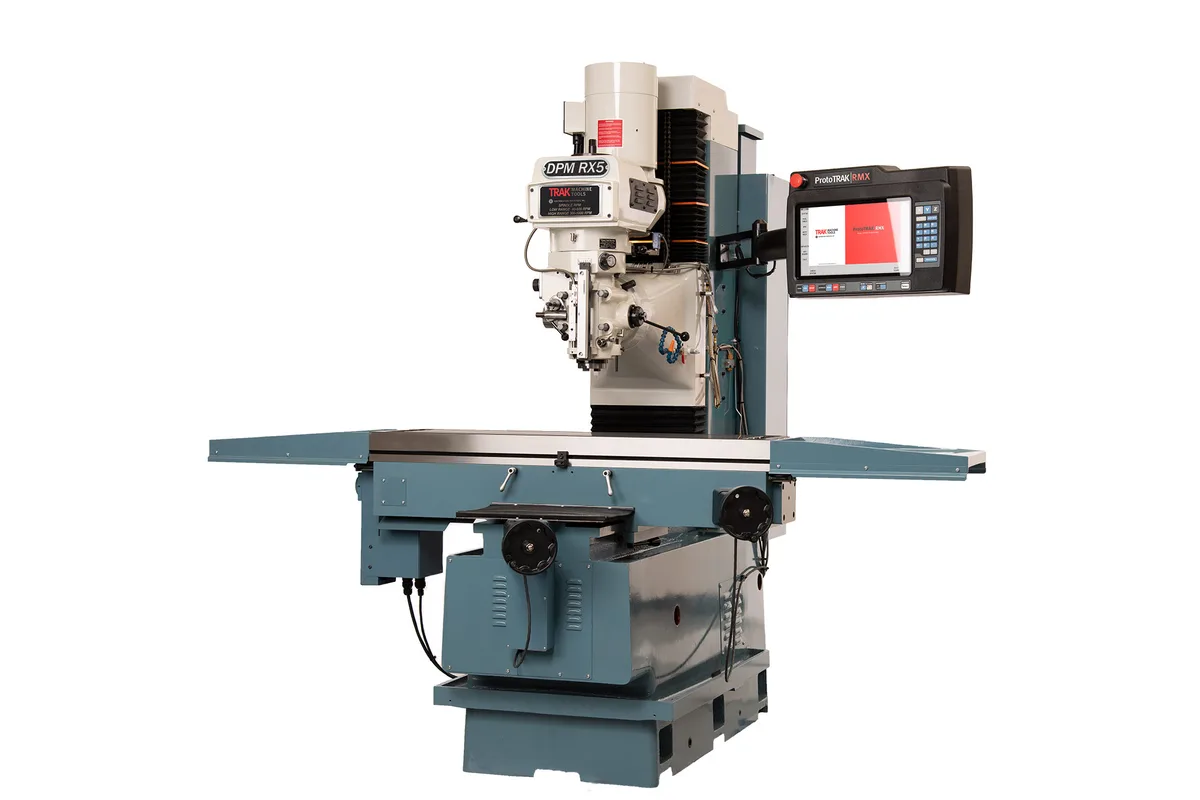

Image: southwesternindustries.com, TRAK Machine Tools
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
control
t slots
How much does the TRAK DPM RX5 cost?
Price estimate
We do not have a price for the TRAK DPM RX5 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The TRAK DPM RX5 is the long-travel DPM RX bed mill: 41 in (1,041 mm) of X, 20.5 in (521 mm) of Y and 24 in (610 mm) of Z under a 40 Taper quill head, with the ProtoTRAK RMX CNC.
Y is the figure to notice. At 20.5 in (521 mm) it matches the distance TRAK gives from spindle center to column face, and it is well beyond the 12 in (305 mm) width of the 50 x 12 in (1,270 x 305 mm) table. Table load is 1,760 lbs (798 kg), against 1,320 lbs (599 kg) on the DPM RX3 and DPM RX2.
The spindle figures are those of the DPM RX3: 5 hp (3.7 kW) continuous, with ranges of 40 - 600 rpm and 300 - 5,000 rpm. TRAK lists milling capacity at 5 in³/min (82 cm³/min), drilling at 1 in (25 mm) diameter and tapping at 1 - 8. So the larger frame adds reach and load, not metal removal. The quill is 3 15/16 in (100 mm) in diameter with 5 in (127 mm) of travel, quill feeds are 0.0015/0.003/0.006 in per spindle revolution, and the head swivels +/- 90° side to side.
Rapid traverse is listed as 400 ipm (10.2 m/min) on X and Y and 250 ipm (6.3 m/min) on Z. Travels are quoted with way covers installed, and travel with limit switches is approx. 1 in less on each axis.
Give it room. The base footprint is 24 x 48.4 in (610 x 1,229 mm), but with the table the machine is 94.13 in (2,391 mm) wide and 82.5 in (2,096 mm) long with the electrical door closed, and full table traverse needs 131.06 in (3,329 mm). It weighs 4,400 lbs net (1,996 kg), 4,700 lbs shipping, and runs on 200-240V three-phase at 26.6A.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | ProtoTRAK RMX CNC |
| Table Size | 50 x 12 in (1,270 x 305 mm) |
| T-Slots | 3 x .63 in x 2.52 in |
| X Axis Travel | 41 in (1,041 mm) |
| Y Axis Travel | 20.5 in (521 mm) |
| Z Axis Travel | 24 in (610 mm) |
| Travel Note | Travel with limit switches is approx. 1 in less on each axis; values are with way covers installed |
| Quill Diameter | 3 15/16 in (100 mm) |
| Max Quill Travel | 5 in (127 mm) |
| Spindle Taper | 40 Taper |
| Max Spindle Speed | 40 - 600, 300 - 5,000 rpm (low / high range) |
| Spindle Center to Column Face | 20.5 in (521 mm) |
| Head Swivel | +/- 90° side to side |
| Quill Feeds | 0.0015/0.003/0.006 in per spindle revolution |
| Spindle Motor Power | 5 hp (3.7 kW) continuous |
| Power Requirement | 200-240V, 3P, 26.6A |
| Max Table Load | 1,760 lbs (798 kg) |
| Distance Spindle Nose to Table | 25.81 in (656 mm) max. |
| Machine Height | 87.5 in (2,222 mm) min.; 102 in (2,591 mm) max. |
| Machine Dimensions | 94.13 in (2,391 mm) wide incl. table x 82.5 in (2,096 mm) long (electrical door closed); 131.06 in (3,329 mm) wide with full table traverse |
| Floor Space Required | 24 x 48.4 in (610 x 1,229 mm) (base footprint) |
| Machine Weight | 4,400 lbs net (1,996 kg); 4,700 lbs shipping |
| Rapid Traverse Xyz | 400 ipm (10.2 m/min) on X and Y, 250 ipm (6.3 m/min) on Z |
| Coolant Capacity | 10 gal (38 L) |
| Drilling Capacity | 1 in (25 mm) diameter |
| Milling Capacity | 5 in³/min (82 cm³/min) |
| Tapping Capacity | 1 - 8 |
Specifications sourced from southwesternindustries.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 41 in (1,041 mm) of X travel and 20.5 in (521 mm) of Y travel
- 1,760 lbs (798 kg) table load, where the DPM RX3 and DPM RX2 carry 1,320 lbs (599 kg)
- 40 Taper spindle with 5 hp (3.7 kW) continuous
- 50 x 12 in (1,270 x 305 mm) table, the widest of the DPM RX2, DPM RX3 and DPM RX5
- Rapids of 400 ipm (10.2 m/min) on X and Y
Limitations
- Needs 131.06 in (3,329 mm) of width for full table traverse
- Spindle power and speed are no higher than on the DPM RX3: 5 hp (3.7 kW) continuous and 5,000 rpm
- Milling capacity is listed at 5 in³/min (82 cm³/min), a light figure for a table that carries 1,760 lbs (798 kg)
- Z rapid is 250 ipm (6.3 m/min)
- Machine height reaches 102 in (2,591 mm) at maximum
Best For
Frequently Asked Questions
01
X is 41 in (1,041 mm), Y is 20.5 in (521 mm) and Z is 24 in (610 mm), with way covers installed. Travel with limit switches is approx. 1 in less on each axis. The quill has 5 in (127 mm) of travel, and the maximum spindle nose to table distance is 25.81 in (656 mm).
02
The spindle is the same class: both are 40 Taper with 5 hp (3.7 kW) continuous and a top speed of 5,000 rpm. The DPM RX5 has the larger table, 50 x 12 in (1,270 x 305 mm) against 50 x 10 in (1,270 x 254 mm) on the DPM RX3, a table load of 1,760 lbs (798 kg) against 1,320 lbs (599 kg), and weighs 4,400 lbs net (1,996 kg) against 4,100 lbs net (1,860 kg).
03
The maximum table load is 1,760 lbs (798 kg). The table itself is 50 x 12 in (1,270 x 305 mm) with three T-slots. Add the weight of vises, fixture plates and any rotary equipment to the part before judging a heavy job.
04
Allow 131.06 in (3,329 mm) of width for full table traverse and 82.5 in (2,096 mm) of length with the electrical door closed. Height is 87.5 in (2,222 mm) minimum and 102 in (2,591 mm) maximum. The electrical supply is 200-240V three-phase at 26.6A, and the machine weighs 4,400 lbs net (1,996 kg).
05
TRAK lists a drilling capacity of 1 in (25 mm) diameter and a tapping capacity of 1 - 8, with a milling capacity of 5 in³/min (82 cm³/min). The spindle runs 40 - 600 rpm in low range and 300 - 5,000 rpm in high range.
