YCM NXV560A

$55,000 - $75,000 Updated 2026-03-11

Key Specifications

X Travel

560 mm (22 in)

Y Travel

410 mm (16.1 in)

Z Travel

450 mm (17.7 in)

Max Spindle

12,000 RPM

Spindle Taper

CAT 40

Tool Capacity

21-position arm-type ATC (20+1)

Overview

The YCM NXV560A is a high-speed, high-power vertical machining center designed for precision manufacturing in automotive, aerospace, and medical industries. It's the compact workhorse in YCM's NXV lineup, delivering 560 x 410 x 450 mm (22 x 16.1 x 17.7 in) of travel with a 12,000 RPM direct-drive spindle putting out 18.5 kW (25 hp). The NXV560A is built for shops that need fast cycle times and good precision in a space-efficient package.

The direct-drive spindle eliminates belt-driven vibration and delivers consistent power across the RPM range. At 25 HP, it has more power than most machines at this travel size, which allows for aggressive material removal rates in both aluminum and steel. Rapid traverse speeds of 48 m/min (1,890 ipm) on all three axes are competitive with the fastest machines in this class, keeping non-cutting time to a minimum in multi-feature parts.

The 21-position arm-type tool changer (20+1) provides quick tool swaps, and the table at 700 x 420 mm (27.6 x 16.5 in) offers a practical work surface for parts within the machine's travel range. At 3,135 kg (6,914 lb), the NXV560A is relatively lightweight for its capability, reflecting YCM's focus on speed and acceleration rather than brute-force rigidity. The Fanuc 0i-MF Plus control is standard, providing industry-standard programming compatibility.

The NXV560A competes directly with the Brother S700X2, Haas Mini Mill, and Fanuc RoboDrill in the compact high-speed VMC category. Where the Brother and RoboDrill focus on extreme speed with smaller spindles, the NXV560A offers more power (25 HP vs 11-15 HP) while maintaining competitive rapids. This makes it more versatile for shops that need to cut steel as well as aluminum. New machines price in the $55,000-$75,000 range, making it an accessible entry point into high-speed machining from a reputable manufacturer. YCM's growing partnership with TITANS of CNC has brought increased visibility to this platform in the North American market.

Full Specifications

Parameter	Value
X-Axis Travel	560 mm (22 in)
Y-Axis Travel	410 mm (16.1 in)
Z-Axis Travel	450 mm (17.7 in)
Max Spindle Speed	12,000 RPM
Spindle Taper	CAT 40
Spindle Motor Power	18.5 kW (25 hp)
Spindle Drive	Direct-Drive
Tool Capacity	21-position arm-type ATC (20+1)
Table Size	700 x 420 mm (27.6 x 16.5 in)
Rapid Traverse X	48 m/min (1,890 ipm)
Rapid Traverse Y	48 m/min (1,890 ipm)
Rapid Traverse Z	48 m/min (1,890 ipm)
Machine Weight	3,135 kg (6,914 lb)
CNC Control	Fanuc 0i-MF Plus
Model	NXV560ADiscontinued Model
Brand	YCM
Type	Vertical Machining Centers
X22047y16142z17717	Table-W16.535"Table-L27.559"ControlCNC (Fanuc)
X	22.047"
Y	16.142"
Z	17.717"
Table W	16.535"
Table L	27.559"
Cnc Control	CNC (Fanuc)
Listings	(2)
Machining Centers Vertical	9 photosVideoYear: 2017
8 Photos	Year: 2018
9 Photos	Video

Specifications sourced from machinetools.com — verified 2026-03-28

Strengths & Limitations

Strengths

48 m/min (1,890 ipm) rapids on all axes deliver fast positioning that minimizes non-cutting time
25 HP direct-drive spindle provides more power than most compact VMCs, enabling steel as well as aluminum work
Competitive pricing at $55-75K puts high-speed machining capability within reach of smaller shops
Fanuc 0i-MF Plus control is industry-standard with universal CAM support
Compact footprint suits shops with limited floor space
YCM's 70+ years of manufacturing experience delivers reliable build quality

Limitations

560 mm (22 in) X-travel limits part size — shops needing more envelope should look at the FV800B or larger
3,135 kg (6,914 lb) machine weight is lighter than mid-size VMCs, which can affect rigidity in heavy cuts
21-tool ATC capacity may feel tight on complex multi-tool jobs; no expansion option
12,000 RPM spindle is good but the Brother S700X2 and RoboDrill offer 16,000-27,000 RPM for extreme speed
YCM service network in North America is growing but not yet as dense as Haas or Fanuc (RoboDrill)

Best For

High-speed production of small to medium aluminum parts in automotive and electronics industries Shops needing a compact VMC with enough power to handle steel, not just aluminum and brass Production cells where fast rapids and quick tool changes drive cycle time reduction Shops upgrading from a Haas Mini Mill or similar compact machine to faster, more capable production Medical device and precision component manufacturers producing small parts at moderate to high volumes

Frequently Asked Questions

01 What does a new YCM NXV560A cost?

New NXV560A machines typically price between $55,000 and $75,000 depending on options. This is competitive with the Haas Mini Mill and DT-2, while offering more power (25 HP) and faster rapids (1,890 ipm).

02 How does the NXV560A compare to the Brother S700X2?

The Brother S700X2 is the speed king with 27,000 RPM and sub-second tool changes, but it has only 11 HP — limiting it primarily to aluminum and light alloys. The NXV560A offers 25 HP at 12,000 RPM with 1,890 ipm rapids, making it more versatile for shops that also cut steel. Choose the Brother for pure aluminum speed; choose the YCM for mixed materials.

03 Is the NXV560A suitable for steel work?

Yes. The 25 HP direct-drive spindle provides adequate power for steel roughing and finishing. However, at 6,914 lb, the machine is lighter than dedicated steel-cutting VMCs. For aggressive heavy roughing in steel, a heavier machine like the Okuma GENOS M560-V or Haas VF-2 is more appropriate.

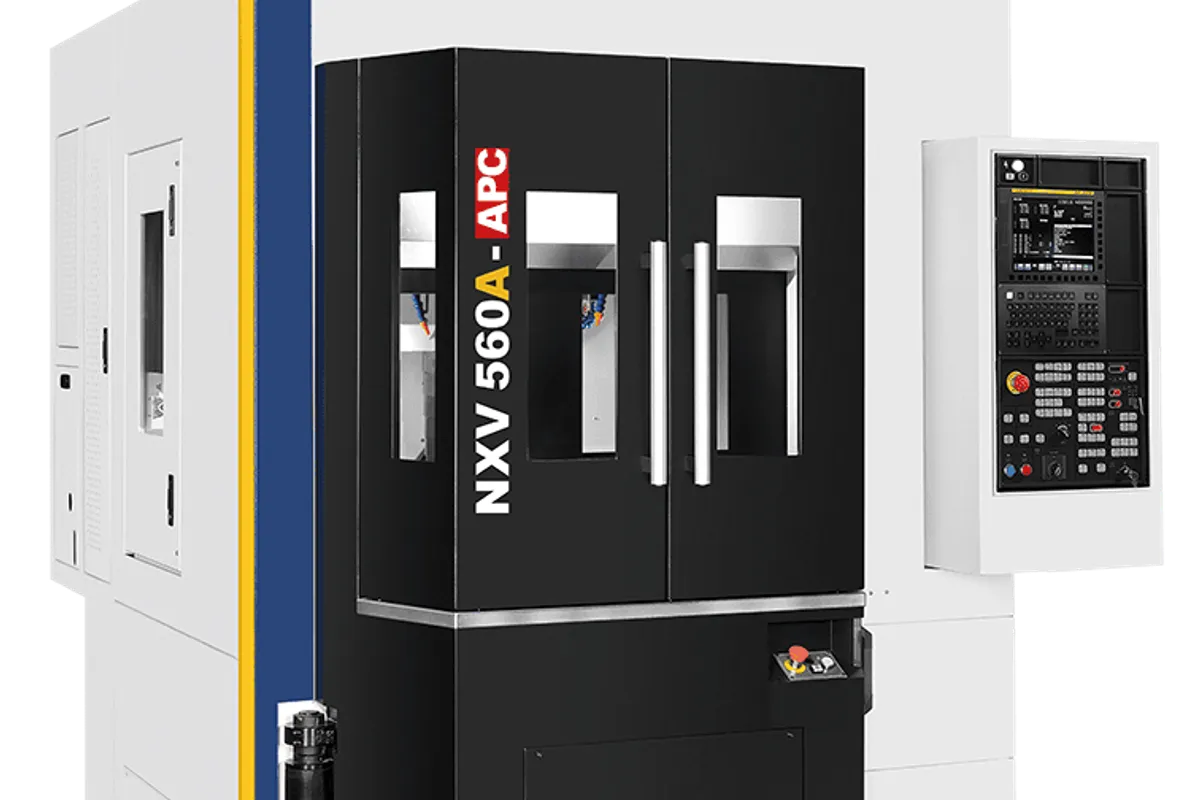

04 What is the NXV560A-APC variant?

The NXV560A-APC adds an automatic pallet changer (APC) with two pallets. This allows loading and fixturing on one pallet while the machine cuts on the other, dramatically improving spindle utilization for production work. It's the recommended choice for medium-to-high volume production environments.
