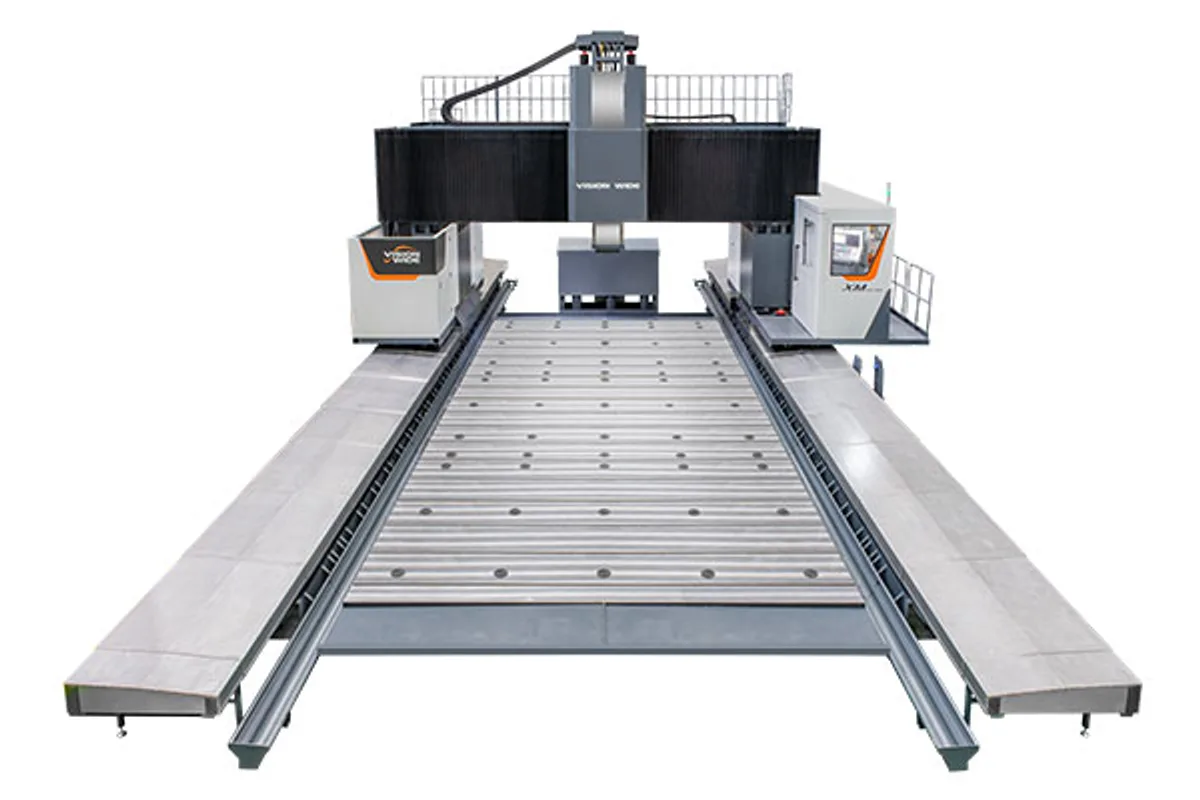

Vision Wide XM-42
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
ram size
How much does the Vision Wide XM-42 cost?
Price estimate
We do not have a price for the Vision Wide XM-42 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Two Vision Wide moving column machines list 4,200 mm (165.4 in) of Y travel, and the XM-42 is the lighter of them. It takes a workpiece up to 3,700 mm (145.7 in) wide on a table given as 3.5×(8~60) m.
The other is the XMF-42. The difference is vertical. The XM-42 has a 470x460 mm (18.5x18.1 in) ram and 1,000 mm of Z travel, 1,400 mm at most. The XMF-42 has a 680 x 680 mm (26.8 x 26.8 in) ram and 2,500 mm (98.4 in) of Z as its standard stroke. One is a machine for long, wide, fairly flat work; the other for parts that are also tall.
Flat, here, covers a great deal: bed plates, large welded frames, vehicle underframes, mold bases, plate structures for presses and cranes. For these the XM-42's proportions are right and the smaller ram is no handicap.
Feedback is strong where the axis is longest. An X dual linear scale and a Z axis linear scale are standard, and a Y axis ball screw supporting device is fitted. The Y axis linear scale is an option. X travel is built within 8,200(+1m)~60,200 mm. The spindle is a 4,000 rpm gear type with 22/26 kW (29.5/34.9 hp), and rapids are 20/20/12 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 8,200(+1m)~60,200 mm |
| Y Axis Travel | 4,200 mm (165.4 in) |
| Z Axis Travel | 1,000 / 1,200 mm (39.4 / 47.2 in) (Opt.) / 1,400 mm (55.1 in) (Opt.) |
| Ram Size | 470x460 mm (18.5x18.1 in) |
| Distance Spindle Nose to Table Z 1000 Std | 750~1,750 mm (29.5~68.9 in) |
| Distance Spindle Nose to Table Z 1200 | 750~1,950 mm (29.5~76.8 in) |
| Distance Spindle Nose to Table Z 1400 | 750~2,150 mm (29.5~84.6 in) |
| Max Workpiece Width | 3,700 mm (145.7 in) |
| Table Size | 3.5×(8~60) m |
| Max Table Load | 5,000 kg/m2 |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) |
| Spindle Speed 2 Step Gear | 4,000/ 6,000 rpm (Opt.) |
| Spindle Speed Built in Motor | 8,000 rpm (Opt.) / 12,000 rpm (Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | 20/20/12 m/min |
| Tool Capacity | 32 / 40 pcs(Opt.) / 60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Y travel of 4,200 mm (165.4 in), the widest XM
- Maximum workpiece width of 3,700 mm (145.7 in)
- X dual linear scale and Y axis ball screw supporting device are standard
- Fixed table at 5,000 kg/m2
Limitations
- Z travel of 1,000 mm, or 1,400 mm at most, against 2,500 mm (98.4 in) on the XMF-42
- Ram of 470x460 mm (18.5x18.1 in)
- Y axis linear scale is optional
Best For
Frequently Asked Questions
01
Both have 4,200 mm (165.4 in) of Y travel. The XM-42 has a 470x460 mm (18.5x18.1 in) ram and 1,000 mm of standard Z. The XMF-42 has a 680 x 680 mm (26.8 x 26.8 in) ram and Z of 2,500/3,000 mm (98.4/118.1 in) (Opt.).
02
3,700 mm (145.7 in) is the maximum workpiece width. The table is listed as 3.5×(8~60) m and carries 5,000 kg/m2.
03
X dual linear scale and Z axis linear scale are standard accessories. A Y axis linear scale is optional, and a Y axis ball screw supporting device is standard.
04
1,000 / 1,200 mm (39.4 / 47.2 in) (Opt.) / 1,400 mm (55.1 in) (Opt.): 1,000 mm standard, with 1,200 mm and 1,400 mm as options.
