Jingdiao JDHGT800T(H)
Image: en.jingdiao.com, Jingdiao
Key Specifications
Max Spindle
Spindle Taper
Table Size
Accuracy
Repeatability
x axis travel
How much does the Jingdiao JDHGT800T(H) cost?
Price estimate
We do not have a price for the Jingdiao JDHGT800T(H) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

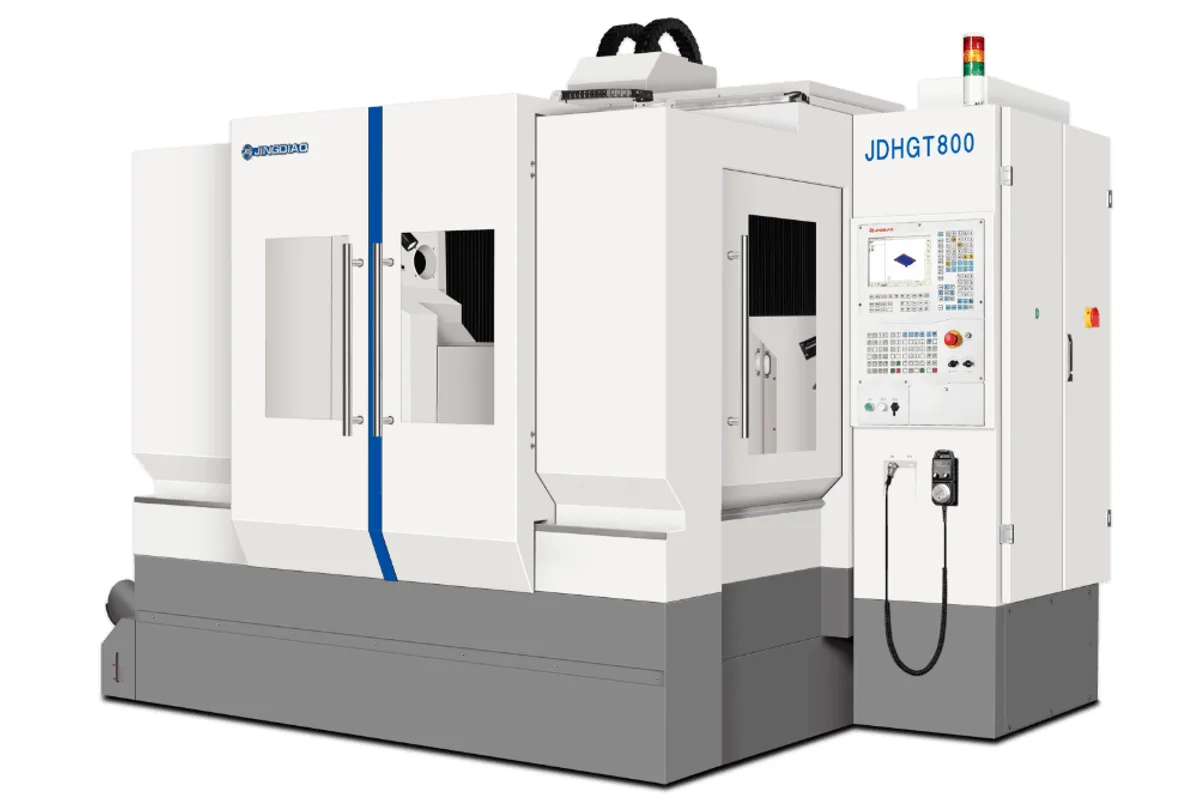

The Jingdiao JDHGT800T(H) is the square-table member of the JDHGT 3-axis high-speed line: 800 mm (31.5 in) of travel in both X and Y over an 850 × 850 mm (33.5 × 33.5 in) table that carries 1,000 kg (2,205 lb). Z travel is 350 mm (13.8 in) on the JDHGT800T and 450 mm (17.7 in) on the JDHGT800TH. The maker positions it for precision milling of mold parts, micro hole drilling and precision hole grinding, at 5-20μm machining accuracy.
An equal X and Y is unusual in this size and it suits mold bases and plates that are close to square: the part can be turned a quarter turn on the table without running out of travel. Jingdiao gives the largest machinable part as 800×800×400mm. Loading is from the front, where the door opening is wide enough for a hoist, and screw chip conveyors run along the left, right and front of the work area.
Spindle choice depends on the height. The JDHGT800T runs a 20,000 rpm HSK-A50 spindle, with or without coolant through the spindle. The taller JDHGT800TH is listed with a 15,000 rpm HSK-A63 spindle, the larger taper being the one to pick for long tools reaching into deep cavities. Either way the chain magazine holds 37 tools.
From the data sheet: positioning accuracy 0.002 / 0.003 / 0.002 mm (X/Y/Z), repeatability 0.0018 / 0.0025 / 0.0018 mm, rapids 15 m/min (591 ipm), maximum feed 10 m/min (394 ipm) and a machine weight of 9,000 kg (19,841 lb). Y is the slightly looser axis on both accuracy rows.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 800 mm (31.5 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Z Axis Travel | 350 mm (13.8 in) on the JDHGT800T; 450 mm (17.7 in) on the JDHGT800TH |
| Table Size | 850 × 850 mm (33.5 × 33.5 in) |
| Max Table Load | 1,000 kg (2,205 lb) |
| Spindle Type | JDHGT800T: JD150S-20-HA50/C or JD150SC-20-HA50/A (coolant through spindle). JDHGT800TH: JD180S-15-HA63/B |
| Max Spindle Speed | 20,000 rpm (JDHGT800T); 15,000 rpm (JDHGT800TH) |
| Spindle Taper | HSK-A50 (JDHGT800T); HSK-A63 (JDHGT800TH) |
| Tool Magazine | Chain Type (37 Tools) |
| Positioning Accuracy | 0.002 / 0.003 / 0.002 mm (X/Y/Z) |
| Repeatability | 0.0018 / 0.0025 / 0.0018 mm (X/Y/Z) |
| Rapid Traverse Xyz | 15 m/min (591 ipm) |
| Cutting Feed Rate | 10 m/min (394 ipm) |
| Drive System | AC servo |
| CNC Control | JD50 Control System |
| Power Requirement | 3-Phase, 380V/50Hz, or Customized |
| Air Pressure | ≥0.52 MPa |
| Machine Weight | 9,000 kg (19,841 lb) |
Specifications sourced from en.jingdiao.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Square 800 mm (31.5 in) travels in X and Y with an 850 × 850 mm (33.5 × 33.5 in) table
- Table load of 1,000 kg (2,205 lb), against 300 kg (661 lb) on the JDHGT600T(H)
- Z travel of 350 mm (13.8 in) or 450 mm (17.7 in) depending on the version
- HSK-A63 spindle at 15,000 rpm on the JDHGT800TH for longer and larger tools
- Front door sized for hoist loading, with screw chip conveyors on three sides of the work area
Limitations
- Top spindle speed is 20,000 rpm; the 32,000 rpm precision spindle of the JDHGT600T(H) is not listed here
- Y-axis positioning accuracy is 0.003 mm against 0.002 mm on X and Z
- Rapids of 15 m/min (591 ipm) are slow across 800 mm (31.5 in) of travel
- On-machine measurement, the scraper type chip conveyor and cutting fluid cooling are options on the data sheet
Best For
Frequently Asked Questions
01
The JDHGT800T has 350 mm (13.8 in) of Z travel and a 20,000 rpm HSK-A50 spindle, with a coolant-through version available. The JDHGT800TH has 450 mm (17.7 in) of Z and is listed with a 15,000 rpm HSK-A63 spindle. Both have 800 mm (31.5 in) of X and Y travel and the same table.
02
The worktable is 850 × 850 mm (33.5 × 33.5 in) and the maximum load is 1,000 kg (2,205 lb). Jingdiao states a maximum machinable part size of 800×800×400mm and describes the front door as spacious enough for hoisting large workpieces in and out.
03
The product page lists a chain type magazine with 37 tools for every configuration of the JDHGT800T(H). The older data sheet for this model names a chain type tool magazine with manipulator as standard equipment, so no umbrella magazine is offered at this size.
04
Positioning accuracy is 0.002 / 0.003 / 0.002 mm (X/Y/Z) and repeatability is 0.0018 / 0.0025 / 0.0018 mm, calibrated with reference to ISO230-2. On finished work the maker states 5-20μm machining accuracy, relying on its hardware configuration and technical support.
05
Jingdiao says it can be equipped with various models of its high-accuracy rotary tables to expand the machine to 3 + 1 or 3 + 2 multi axis processing. With 1,000 kg (2,205 lb) of table capacity the rotary table and fixture weight leave plenty of margin for the part.
