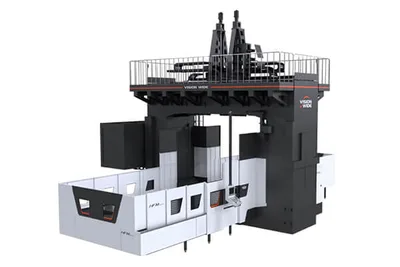

Vision Wide MHN-6035 / MHN-6042
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way single ballscrew
z axis travel linear way enclosed box ram dual ballscrews
max table load
How much does the Vision Wide MHN-6035 / MHN-6042 cost?
Price estimate
We do not have a price for the Vision Wide MHN-6035 / MHN-6042 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The beam of the Vision Wide MHN-6035 / MHN-6042 is stepped. Vision Wide describes a tall, rigid stepped beam structure that enhances the guideway span and provides the Y-axis straightness and rigidity needed for heavy cutting.
A stepped beam sets its two guideways on different planes, one high and back, one low and forward. That spreads them apart both vertically and in depth, so the saddle is held against tipping forward as well as against rocking, and the head can sit closer in. The maker adds a related point: the distance between the spindle center and the Z-axis roller way is kept to a minimum, which shortens the cutting lever arm.
Straightness is the other half of the claim. On this pair the beam spans 3,500 mm (137.8 in) of Y travel, or 4,200 mm (165.4 in) on the MHN-6042. Any sag in it is copied into every surface milled across the part, so a deep beam is as much about flatness as about chatter.
The table is 6,000×3,000 mm (236.2×118.1 in) and carries 28,000 kg (61,728 lb). X travel is 6,100 mm (240.2 in). X/Y rapid drops to 8 m/min at this length, from 10 m/min on the MHN-5035. Power is 22/26 kW (29.5/34.9 hp).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 6,100 mm (240.2 in) |
| Y Axis Travel | 3,500/ 4,200 mm (137.8/ 165.4 in) |
| Z Axis Travel Box Way Single Ballscrew | 920 / 1,020 mm (36.2 / 40.2 in)(Opt.) |
| Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews | 1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.) |
| Table Size | 6,000×3,000 mm (236.2×118.1 in) |
| Max Table Load | 28,000 kg (61,728 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 4,000 / 6,000 rpm(Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear | 4,000 / 6,000 rpm(Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram Direct Driven | 10,000 rpm (Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xy | 8 m/min |
| Rapid Traverse Z Box Way or Linear Way | 15 m/min |
| Rapid Traverse Z Enclosed Box Ram | 12 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Stepped beam structure for guideway span and Y-axis straightness
- Short distance between spindle center and Z-axis roller way
- 6,000×3,000 mm (236.2×118.1 in) table for 28,000 kg (61,728 lb)
- 22/26 kW (29.5/34.9 hp) with a 30/37 kW (40.2/49.6 hp) option
Limitations
- X/Y rapid of 8 m/min, down from 10 m/min on the MHN-5035
- No straightness or flatness figure is published
- The beam height is printed unclearly on the page
Best For
Frequently Asked Questions
01
That a rigid stepped beam structure enhances the guideway span and provides the Y-axis straightness and rigidity needed for heavy cutting. The height it prints for the beam is not clearly written, so ask for the dimension.
02
6,000×3,000 mm (236.2×118.1 in) and 28,000 kg (61,728 lb). X travel is 6,100 mm (240.2 in), slightly longer than the table.
03
8 m/min. The MHN-5035, one size shorter, lists 10 m/min. Cutting feed is 1-7,000 mm/min on both, and Z rapid is 15 m/min on the standard head.
04
The MHN-6035 has 3,500 mm (137.8 in) and the MHN-6042 has 4,200 mm (165.4 in). All other rows of the column are shared by the two.
