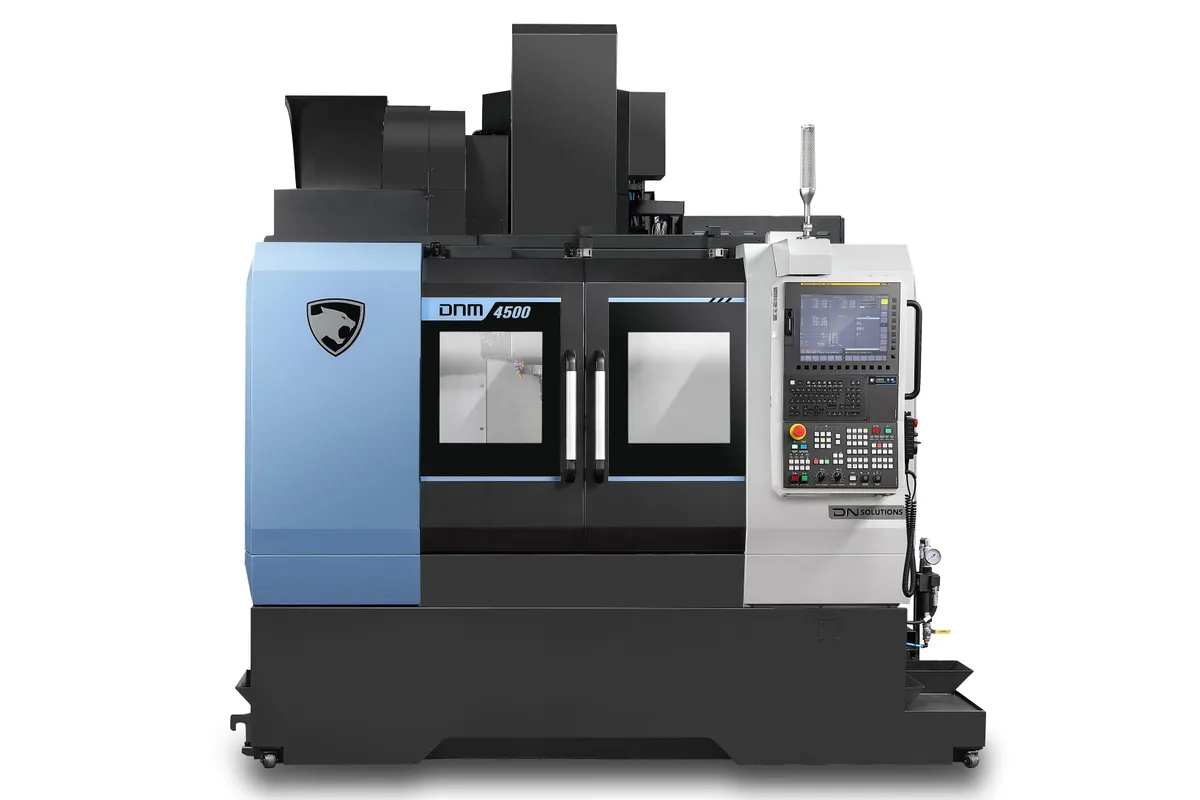

DN Solutions DNM 4500 4TH

$90,000 - $140,000 Updated 2026-03-19

Key Specifications

X Travel

800 mm (32 in)

Y Travel

450 mm (18 in)

Z Travel

510 mm (20 in)

Max Spindle

8,000 RPM

Spindle Taper

ISO 40 (BT40)

Table Size

800 x 450 mm (31 x 18 in)

Overview

The DN Solutions DNM 4500 4TH is the integrated fourth-axis version of DN Solutions' best-selling mid-range VMC. Rather than bolting an aftermarket rotary table onto a standard DNM 4500, this model comes from the factory with the fourth axis built in — properly integrated into the control, verified for accuracy, and covered under the machine warranty. That factory integration matters because the control knows the rotary axis exists, enabling simultaneous 4-axis interpolation and proper coordinate transformations from day one.

The base machine delivers 800 x 450 x 510 mm (32 x 18 x 20 in) of travel with an 8,000 RPM spindle producing 18.5 kW (25 hp) and 117.8 Nm of torque through an ISO 40 taper. Box-way construction provides the rigidity foundation that makes indexing and 4-axis work accurate — when you're rotating a part to machine a new face, you need the machine to cut just as cleanly as it does on the primary orientation. Rapid traverse hits 42 m/min on X and Y, 36 m/min on Z.

The 800 x 450 mm table with 600 kg load capacity accommodates the rotary table and workpiece without compromising the machine's ability to handle standard 3-axis work when the fourth axis isn't needed. At 5,000 kg, the DNM 4500 4TH delivers the stability that indexed and simultaneous 4-axis work demands. The FANUC 0i-Plus control handles 4-axis programming natively, and most CAM systems output 4-axis code for FANUC without any special post-processing headaches.

Full Specifications

Parameter	Value
X-Axis Travel	800 mm (32 in)
Y-Axis Travel	450 mm (18 in)
Z-Axis Travel	510 mm (20 in)
Max Spindle Speed	8,000 RPM
Spindle Motor Power	18.5 kW (25 hp)
Spindle Torque	117.8 Nm (87 ft-lb)
Spindle Taper	ISO 40 (BT40)
Table Size	800 x 450 mm (31 x 18 in)
Table Load Capacity	600 kg (1,323 lb)
Rapid Traverse X	42 m/min (1,654 ipm)
Rapid Traverse Y	42 m/min (1,654 ipm)
Rapid Traverse Z	36 m/min (1,417 ipm)
Fourth Axis	Integrated
Machine Weight	5,000 kg (11,023 lb)
CNC Control	FANUC 0i-Plus with iHMI
Max Spindle Speed	8000 r/min
X Axis Travel Distance	800 mm
Y Axis Travel Distance	450 mm
Metric	IMPERIAL
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Main Spindle	Max. Spindle SpeedMax. Spindle PowerMax. Spindle TorqueTool Taper
Table	Table LengthTable WidthMaximum Workpiece weight
Dimensions	LengthHeightWidthWeight
Favorites	DNM 6700L 4th

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

Factory-integrated fourth axis is properly calibrated, warranted, and recognized by the control — no aftermarket integration headaches
Box-way construction provides the rigidity needed for accurate indexed and simultaneous 4-axis machining
42 m/min rapids keep non-cutting time low during 4-axis work with frequent repositioning
Full 3-axis capability when the fourth axis isn't needed — you're not giving up standard VMC versatility
FANUC 0i-Plus handles 4-axis programming natively with broad CAM system support
600 kg table load capacity accommodates the rotary axis plus workpiece and fixturing

Limitations

8,000 RPM spindle speed limits high-speed aluminum work — consider the 12K or 15K RPM options for aluminum-heavy shops
450 mm Y-travel is moderate, and the integrated rotary table consumes some of the available work envelope
510 mm Z-travel gets tight with the rotary table height factored in
Premium over the standard DNM 4500 may not be justified if you only occasionally need 4-axis capability

Best For

Job shops regularly machining multi-sided parts that benefit from 4-axis indexing to reduce setups Mold and die shops using the fourth axis for angular features, undercuts, and electrode machining Aerospace manufacturers machining structural brackets and fittings with features on multiple faces Production shops that want factory-integrated 4-axis capability without the risk and hassle of aftermarket rotary tables Shops transitioning from 3-axis to 4-axis machining who want a proven, integrated platform

Frequently Asked Questions

01 What does a DN Solutions DNM 4500 4TH cost?

New DNM 4500 4TH machines run $90,000-$140,000 depending on spindle option and accessories. The base machine with 8K RPM spindle and integrated fourth axis starts around $90,000-$110,000. Adding the 12K or 15K RPM spindle, through-spindle coolant, probing, and chip conveyor pushes pricing to $120,000-$140,000.

02 Is the integrated fourth axis better than an aftermarket rotary table?

For most shops, yes. The factory integration means the control natively understands the rotary axis for simultaneous interpolation and coordinate transformations. Accuracy is verified at the factory. It's covered under the machine warranty. An aftermarket rotary table can work well but requires integration effort, separate warranty management, and may not support true simultaneous 4-axis motion depending on the control configuration.

03 Can I still do regular 3-axis work on the DNM 4500 4TH?

Absolutely. The fourth axis parks out of the way when not needed, and the machine operates as a standard DNM 4500 for 3-axis work. You're not sacrificing any 3-axis capability by having the integrated fourth axis. Many shops run 3-axis jobs 80% of the time and use the fourth axis when multi-sided parts come through.

04 How does the DNM 4500 4TH compare to the DNM 5700 4TH?

The DNM 5700 4TH has larger travels (1,050x570x510 vs 800x450x510mm), a bigger table (1,050x570 vs 800x450mm), and higher load capacity (1,000 kg vs 600 kg). Choose the 5700 4TH for larger parts. The 4500 4TH covers most small-to-mid-size work at a lower price point.
