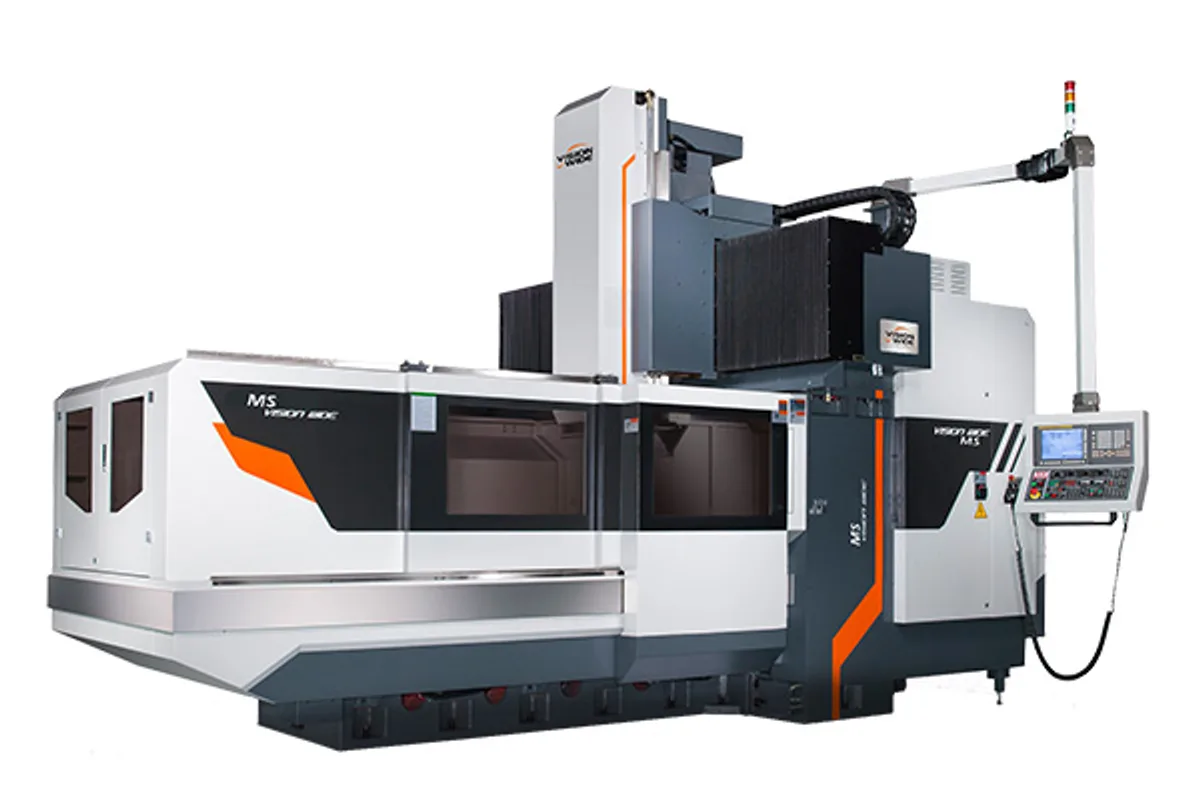

Vision Wide MS-4116
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way
z axis travel linear way
max table load
How much does the Vision Wide MS-4116 cost?
Price estimate
We do not have a price for the Vision Wide MS-4116 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide MS-4116 is the four-metre portal mill of the narrow MS frame, with 4,100 mm (161.4 in) of X travel, 1,600 mm (63.0 in) of Y and a 4,000x1,500 mm (157.5x59.1 in) table for 12,000 kg (26,455 lb).
Even with the drive features of the series, the long table moves more slowly than the short ones. The rapid traverse row reads X/Y/Z：18/24/15 m/min, where the MS-3116 lists 24 m/min in X. Vision Wide's answer to table mass is a high stiffness light-weight table and a torque enlarger unit on the X axis; on this length they hold the X rapid at 18 m/min with twelve tonnes of rated load.
Milling machines of this shape earn their keep on long structural parts: machine beds, guide rails, crane and press members, long weldments that need a flat, straight datum face. The work is mostly face milling and slotting with few tool changes, which is why the series is offered without a magazine as standard.
The spindle is a 6,000rpm 2-step gear type with 18.5/22 kW (24.8/29.5 hp), and 22/26 kW (29.5/34.9 hp) is an option. Cutting feed is 1-10,000 mm/min. Chips are cleared by a screw type conveyor on the table side and a caterpillar type conveyor.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,100 mm (161.4 in) |
| Y Axis Travel | 1,600 mm (63.0 in) |
| Z Axis Travel Box Way | 800 / 1,020 mm (31.5 / 40.2 in) (Opt.) |
| Z Axis Travel Linear Way | 800 / 1,000 mm (31.5 / 39.4 in) (Opt.) |
| Table Size | 4,000x1,500 mm (157.5x59.1 in) |
| Max Table Load | 12,000 kg (26,455 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 6,000/4,000 rpm(Opt.) |
| Spindle Speed Linear Way Direct Driven | 10,000 rpm(Opt.)/ 12,000 rpm(Opt.) |
| Spindle Speed Linear Way Built in | 10,000 rpm(Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | X/Y/Z：18/24/15 m/min |
| Tool Capacity Vertical Tool Change | 32/40 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,000x1,500 mm (157.5x59.1 in) table for 12,000 kg (26,455 lb)
- Y rapid of 24 m/min and Z rapid of 15 m/min
- Screw type and caterpillar type chip conveyors are standard
- Optional 22/26 kW (29.5/34.9 hp) motor
Limitations
- X rapid of 18 m/min, below the 24 m/min of the MS-3116
- A 4,000x1,500 mm (157.5x59.1 in) table is narrow for its length
- Tool magazine is not standard
Best For
Frequently Asked Questions
01
X/Y/Z：18/24/15 m/min. The shorter MS-3116 lists 24 m/min in X and Y and 15 m/min in Z, so only the X axis is slower on the longer table.
02
4,000x1,500 mm (157.5x59.1 in), rated for 12,000 kg (26,455 lb). X travel is 4,100 mm (161.4 in) and Y travel 1,600 mm (63.0 in).
03
It is listed as a double column milling machine. The standard accessory list has no magazine, and a 32/40/60 tools magazine with arm type ATC is offered as an option.
04
18.5/22 kW (24.8/29.5 hp), continuous and short-time, with 22/26 kW (29.5/34.9 hp) as an option. The standard spindle is a 6,000rpm 2-step gear type.
