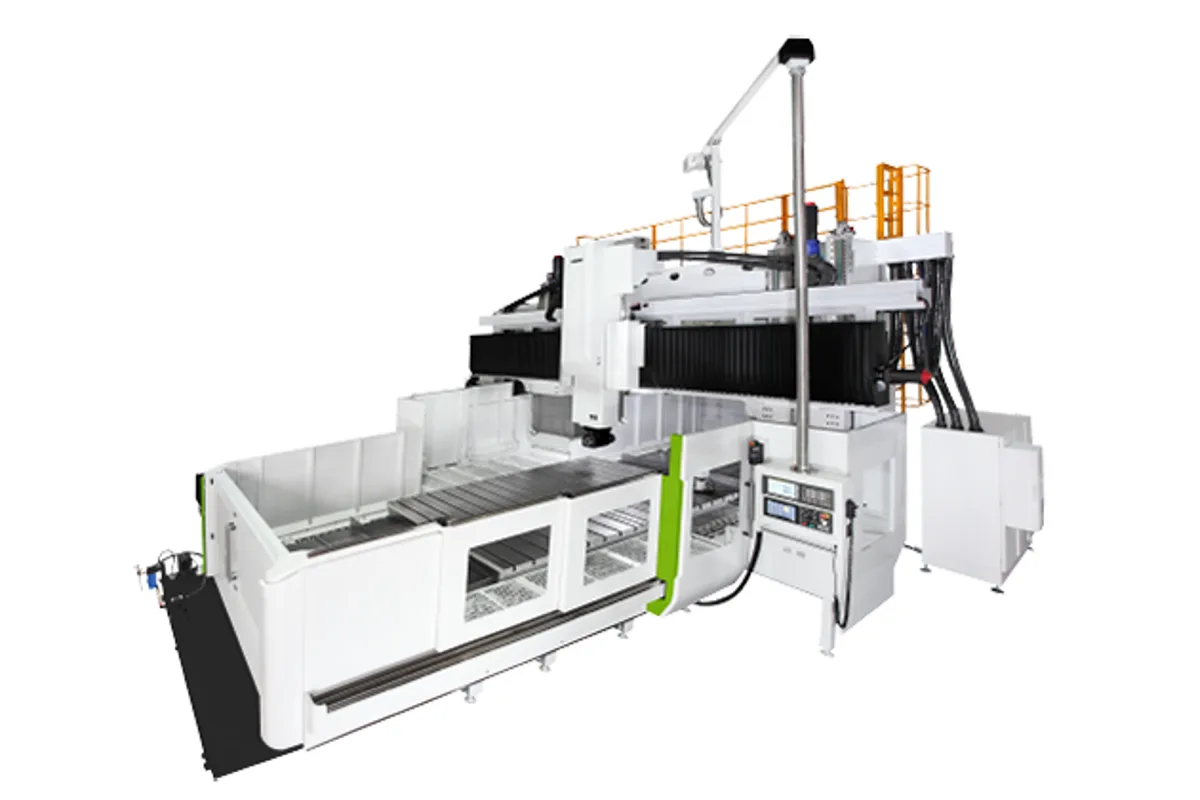

Hartford MW-843
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford MW-843 cost?
Price estimate
We do not have a price for the Hartford MW-843 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Thirty tonnes on an eight-metre table: the Hartford MW-843 is the largest MW moving-crossbeam double-column machining center. The table is 8,000 x 3,000 mm (315.0 x 118.1 in) and rated for 30,000 kg (66,138 lb). X travel is 8,000 mm (315.0 in) and Y travel 4,300 mm (169.3 in).
Beyond this size Hartford changes the concept. Its MCW machines move the columns along a fixed floor table and start at 8,000 mm of X; the MCW-8550 lists a load per square metre instead of a total table load. The MW-843 is therefore the largest machine in the range on which the workpiece itself travels, and 30,000 kg is the ceiling for that layout.
Everything above the table is shared with the smaller MW models: crossbeam travel in W of 1,200 mm (1,500 mm or 1,800 mm optional), ram travel in Z of 1,000 mm (1,200 mm optional), a #50 spindle with gear drive at 6,000 / 8,000 rpm or hybrid drive at 10,000 rpm, and motors of 18.5 / 22 kW or 30 / 35 kW.
The automatic head system covers a universal head, a 90 degree head and an extension head. Each head magazine has its own moving door, and Hartford notes that additional head magazines are available.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 8,000 x 3,000 mm (315.0 x 118.1 in) |
| Max Table Load | 30,000 kg (66,138 lb) |
| X Axis Travel | 8,000 mm (315.0 in) |
| Y Axis Travel | 4,300 mm (169.3 in) |
| Z Axis Travel | 1,000 opt. 1,200 mm |
| W Axis Travel | 1,200 opt. 1,500 / 1,800 mm |
| Spindle Taper | #50 |
| Spindle Speed Hybrid | 10,000 rpm |
| Spindle Speed Gear | 6,000 / 8,000 rpm |
| Tool Capacity | A: 32 (40 / 62) pcs |
| Tool Shank | BT-50 (CAT50 / DIN / BBT50) |
| Spindle Motor Power | 18.5 / 22 opt. 30 / 35 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 30,000 kg (66,138 lb) table load, the highest of the MW series
- 8,000 x 3,000 mm (315.0 x 118.1 in) table with 4,300 mm (169.3 in) of Y travel
- Moving crossbeam with twin ballscrews and twin servo motors
- Universal, 90 degree and extension heads with automatic change
- #50 gear spindle at 6,000 / 8,000 rpm or hybrid spindle at 10,000 rpm
Limitations
- Moving 30 tonnes of workpiece plus table limits acceleration; no rates are published
- Motor options stop at 30 / 35 kW (Cont. / 30 min)
- Z travel of 1,000 mm, or 1,200 mm
- For longer parts Hartford's MCW moving-column machines are the alternative
Best For
Frequently Asked Questions
01
30,000 kg (66,138 lb) average table load, on a table of 8,000 x 3,000 mm (315.0 x 118.1 in). It is the highest rating among Hartford's MW models.
02
X 8,000 mm (315.0 in), Y 4,300 mm (169.3 in), Z 1,000 mm with 1,200 mm optional, and W 1,200 mm with 1,500 mm or 1,800 mm optional.
03
The MW-843 moves the table under a fixed pair of columns. The MCW machines move the columns along a fixed table; the MCW-8550, for example, has the same 8,000 mm (315.0 in) X travel with 5,500 mm (216.5 in) of Y.
04
In an independent head magazine with a protective cover. Each magazine has a moving door that opens only during head changeover to keep debris off the heads, and a hydraulic cylinder makes the change.
More from Hartford
Other Vertical Machining Centers (VMC)
DN Solutions DNM 4500 4TH
Vision Wide MHN-6035 / MHN-6042
Jingdiao JDHGT800T(H)

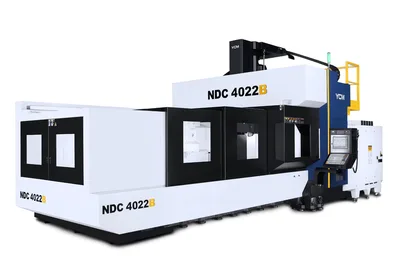

YCM NDC4022B
