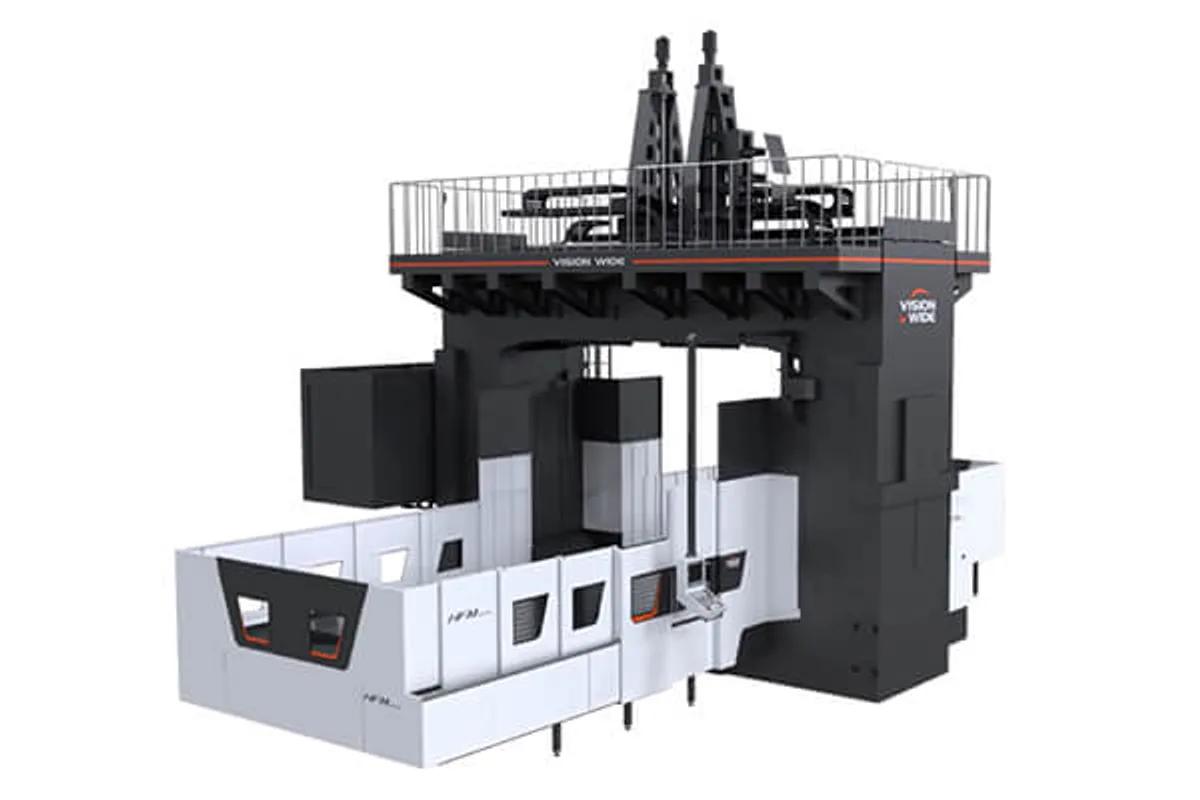

Vision Wide HF-8042M
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel
max table load
spindle power cont 30 min
How much does the Vision Wide HF-8042M cost?
Price estimate
We do not have a price for the Vision Wide HF-8042M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A box-in-box crossbeam is the structural idea behind the Vision Wide HF-8042M. On a conventional bridge machine the head hangs on the front face of the beam, so its weight and the cutting force twist the beam. Vision Wide says its crossbeam design with a box-in-box structure can reduce deformation caused by the Z axis loading the cross beam on one side.
The second claim concerns temperature. With the gravity centre of the head on the centreline of a symmetric structure, the maker says, the design can reduce the influence of ambient temperature. A symmetric structure expands evenly, so the tool point moves less as the shop warms and cools.
Both points matter in proportion to size, and this is a big machine: 8,100 mm (318.9 in) of X travel, 4,200 mm (165.4 in) of Y, 1,500 mm (59.1 in) of Z, and an 8,000×3,000 mm (315.0×118.1 in) table for 32,000 kg (70,547 lb).
The spindle is a 2-step gear type at 4,000rpm, with a 6,000rpm version optional, on 22/26 kW (29.5/34.9 hp). The table also lists a direct-driven spindle at 10,000 rpm as an option. Rapids are 15/15/12 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 8,100 mm (318.9 in) |
| Y Axis Travel | 4,200 mm (165.4 in) |
| Z Axis Travel | 1,500 mm (59.1 in) |
| Table Size | 8,000×3,000 mm (315.0×118.1 in) |
| Max Table Load | 32,000 kg (70,547 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear | 4,000/6,000 rpm (Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram Direct Driven | 10,000 rpm (Opt.) |
| Cutting Feed Rate | 1~7,000 mm/min |
| Rapid Traverse Xyz Box Way | 15/15/12 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Box-in-box crossbeam intended to reduce beam deformation
- Symmetric head position said to reduce the influence of ambient temperature
- 8,000×3,000 mm (315.0×118.1 in) table for 32,000 kg (70,547 lb)
- 1,500 mm (59.1 in) of Z travel
Limitations
- No accuracy or deformation figures support the structural claims on the page
- Cutting feed of 1~7,000 mm/min
- The 6,000rpm gear spindle and the 10,000 rpm direct-driven spindle are options
Best For
Frequently Asked Questions
01
It is the crossbeam design of the HFM series. Vision Wide says it can reduce deformation caused by the Z axis loaded on the unilateral cross beam, and that the head's gravity centre lies on the centreline of the symmetric structure.
02
X travel 8,100 mm (318.9 in), Y travel 4,200 mm (165.4 in), Z travel 1,500 mm (59.1 in). The table measures 8,000×3,000 mm (315.0×118.1 in) and carries 32,000 kg (70,547 lb).
03
Standard is a 2-step gear type spindle 4,000rpm. A 2-step gear type spindle 6,000rpm is optional, and the specification table lists a direct-driven spindle at 10,000 rpm as an option.
04
The rapid traverse row gives 15/15/12 m/min for X/Y/Z, and the cutting feed range is 1~7,000 mm/min. The HF-8035 / HF-8042, the pair without the M, lists 8 m/min for its X/Y rapid.
