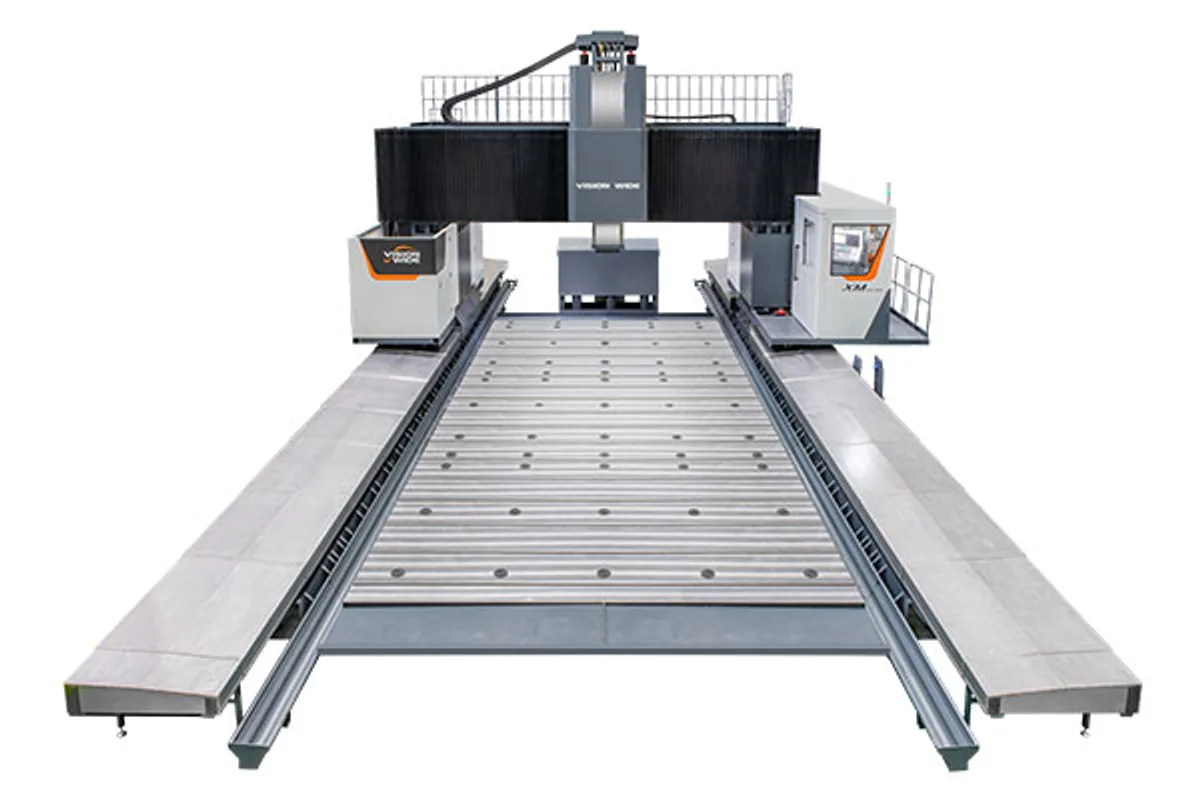

Vision Wide XM-32
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
ram size
How much does the Vision Wide XM-32 cost?
Price estimate
We do not have a price for the Vision Wide XM-32 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide XM-32 is a moving column machining center: the workpiece sits on a fixed table at floor level and the whole bridge travels along it. That is why its X travel is given as a range, 8,200(+1m)~60,200 mm. The bed is built to the length the buyer needs, from just over eight metres to sixty.
This is the narrowest XM. Y travel is 3,200 mm (126.0 in), the maximum workpiece width between the columns is 2,700 mm (106.3 in), and the table is listed as 2.5×(8~60) m. The table takes 5,000 kg/m2, a load per square metre, since a fixed table has no total rating in the usual sense.
Vision Wide names large precision machinery, electric power, wind power, energy, petrochemical and transportation equipment as the work the XM was developed for. The common thread is length: rail vehicle frames, crane girders, long machine beds, tower and blade tooling.
The working end is conventional. A 4,000 rpm 2-step gear type spindle with 22/26 kW (29.5/34.9 hp) is standard, in a ram of 470x460 mm (18.5x18.1 in), with 1,000 mm of Z travel and 1,200 mm or 1,400 mm as options. Rapids are 20/20/12 m/min and cutting feed is 1-10,000 mm/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 8,200(+1m)~60,200 mm |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 1,000 / 1,200 mm (39.4 / 47.2 in) (Opt.) / 1,400 mm (55.1 in) (Opt.) |
| Ram Size | 470x460 mm (18.5x18.1 in) |
| Distance Spindle Nose to Table Z 1000 Std | 750~1,750 mm (29.5~68.9 in) |
| Distance Spindle Nose to Table Z 1200 | 750~1,950 mm (29.5~76.8 in) |
| Distance Spindle Nose to Table Z 1400 | 750~2,150 mm (29.5~84.6 in) |
| Max Workpiece Width | 2,700 mm (106.3 in) |
| Table Size | 2.5×(8~60) m |
| Max Table Load | 5,000 kg/m2 |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) |
| Spindle Speed 2 Step Gear | 4,000/ 6,000 rpm (Opt.) |
| Spindle Speed Built in Motor | 8,000 rpm (Opt.) / 12,000 rpm (Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | 20/20/12 m/min |
| Tool Capacity | 32 / 40 pcs(Opt.) / 60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- X travel built to order within 8,200(+1m)~60,200 mm
- Fixed table rated 5,000 kg/m2
- X dual linear scale and Z axis linear scale are standard
- Rapid traverse of 20/20/12 m/min on a machine of this length
Limitations
- Maximum workpiece width of 2,700 mm (106.3 in), the narrowest in the XM family
- Standard Z travel of 1,000 mm
- Y axis linear scale is an option
Best For
Frequently Asked Questions
01
X travel is listed as 8,200(+1m)~60,200 mm, so the bed is built to a chosen length within that range. The table is given as 2.5×(8~60) m.
02
03
5,000 kg/m2. The table is fixed and the column moves, so the rating is a load per square metre and part weight does not affect axis movement.
04
A 4,000 rpm 2-step gear type spindle is standard, with 22/26 kW (29.5/34.9 hp). A 6,000 rpm gear spindle and built-in spindles of 8,000 rpm and 12,000 rpm are options.
