Hartford MW-643

Q: How much does the Hartford MW-643 cost?

The price estimate for the Hartford MW-643 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/hartford-mw-643#price; the request is passed to Hartford or an authorised dealer.

Specs verified 2026-10-04 · hartfordcnc.com Updated 2026-10-04

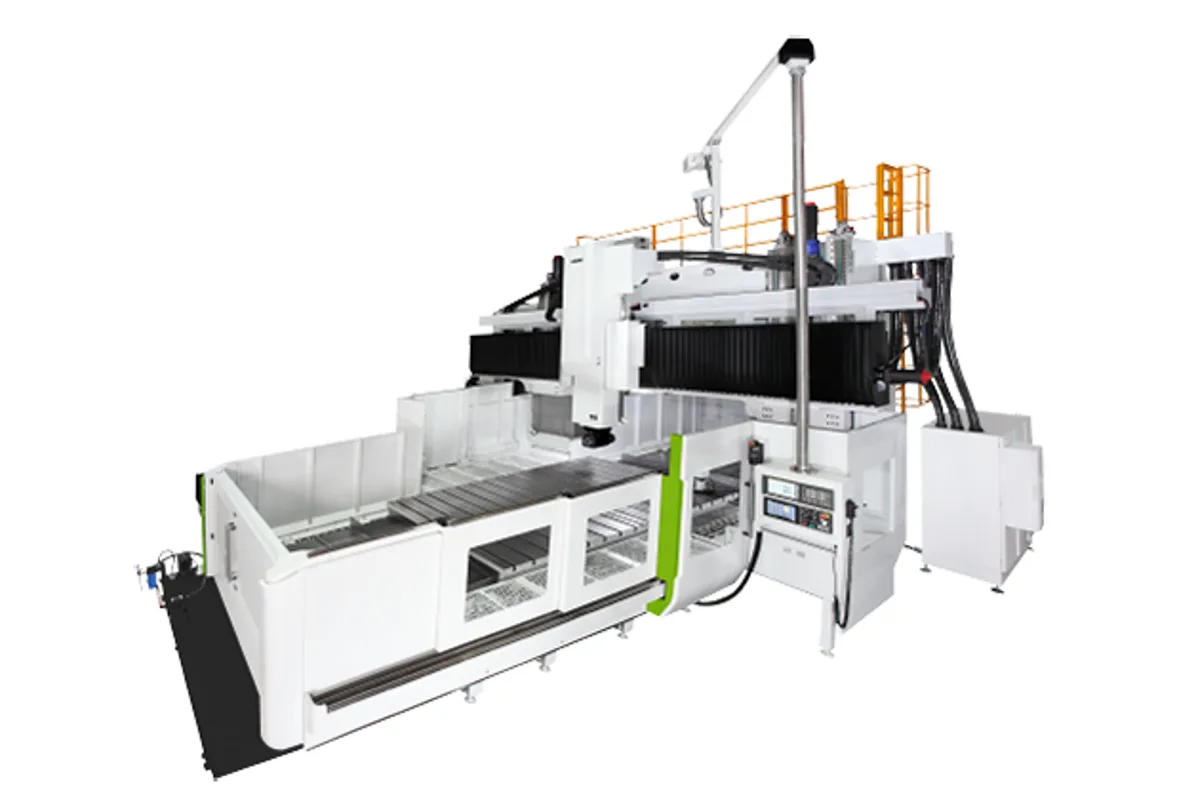

Image: hartfordcnc.com, Hartford

Key Specifications

Spindle Taper

#50

Tool Capacity

A: 32 (40 / 62) pcs

Table Size

6,000 x 3,000 mm (236.2 x 118.1 in)

Spindle Power

18.5 / 22 opt. 30 / 35 kW (Cont. / 30 min)

max table load

24,000 kg (52,910 lb)

x axis travel

6,000 mm (236.2 in)

How much does the Hartford MW-643 cost?

Price estimate

Uncertain

We do not have a price for the Hartford MW-643 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A table of 6,000 x 3,000 mm (236.2 x 118.1 in) rated for 24,000 kg (52,910 lb) makes the Hartford MW-643 the mid-point of the wide MW machines. It is a moving-crossbeam double-column machining center with 6,000 mm (236.2 in) of X travel and 4,300 mm (169.3 in) of Y.

The counterbalance of the Z ram is a small detail that matters on a machine this size. Hartford uses a nitrogen accumulator weight system instead of a continuously pumped hydraulic counterbalance. According to the maker it lowers hydraulic tank oil temperature by 50% and saves more than 20% of the energy. Cooler oil means less heat fed into the ram and crossbeam over a long shift.

The crossbeam travels 1,200 mm in W, with 1,500 mm and 1,800 mm as options, and the ram 1,000 mm in Z, with 1,200 mm as the option. Between them the spindle nose can be brought close to a low plate or lifted clear of a tall housing.

Spindles are #50: gear at 6,000 / 8,000 rpm or hybrid at 10,000 rpm. Motors are 18.5 / 22 kW or, optionally, 30 / 35 kW (Cont. / 30 min). The magazine carries 32 tools, or 40 or 62, and automatic angular heads are offered with A/C indexing in 1 degree steps.

Full Specifications

Parameter	Value
Table Size	6,000 x 3,000 mm (236.2 x 118.1 in)
Max Table Load	24,000 kg (52,910 lb)
X Axis Travel	6,000 mm (236.2 in)
Y Axis Travel	4,300 mm (169.3 in)
Z Axis Travel	1,000 opt. 1,200 mm
W Axis Travel	1,200 opt. 1,500 / 1,800 mm
Spindle Taper	#50
Spindle Speed Hybrid	10,000 rpm
Spindle Speed Gear	6,000 / 8,000 rpm
Tool Capacity	A: 32 (40 / 62) pcs
Tool Shank	BT-50 (CAT50 / DIN / BBT50)
Spindle Motor Power	18.5 / 22 opt. 30 / 35 kW (Cont. / 30 min)

Specifications sourced from hartfordcnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

24,000 kg (52,910 lb) table load on a 6,000 x 3,000 mm (236.2 x 118.1 in) table
Nitrogen accumulator Z counterbalance, with 50% lower oil temperature per Hartford
4,300 mm (169.3 in) of Y travel for head work beside wide parts
W and Z travel options up to 1,800 mm and 1,200 mm
Automatic angular heads with 1 degree A/C indexing

Limitations

Angular heads index; they do not interpolate, by Hartford's description
Motor power of 18.5 / 22 kW as standard is modest for a 24-tonne table
Spindle speed peaks at 10,000 rpm
No accuracy figures for X, Y or Z are published

Best For

Large housings for wind, marine and mining gear units Wide machine bases and bolsters Long shifts where thermal stability of the ram matters Five-face machining up to 24,000 kg (52,910 lb)

Frequently Asked Questions

01 What is the table capacity of the Hartford MW-643?

24,000 kg (52,910 lb) average load on a table of 6,000 x 3,000 mm (236.2 x 118.1 in). Fixtures, risers and angle plates are part of that figure.

02 How is the Z axis of the MW-643 balanced?

With a Z axis nitrogen accumulator weight system. Hartford states that it reduces hydraulic tank oil temperature by 50% and saves more than 20% energy.

03 What travels does the MW-643 offer?

6,000 mm (236.2 in) in X and 4,300 mm (169.3 in) in Y. Z is 1,000 mm with a 1,200 mm option; W is 1,200 mm with 1,500 mm and 1,800 mm options.

04 What are the neighbouring models of the MW-643?
