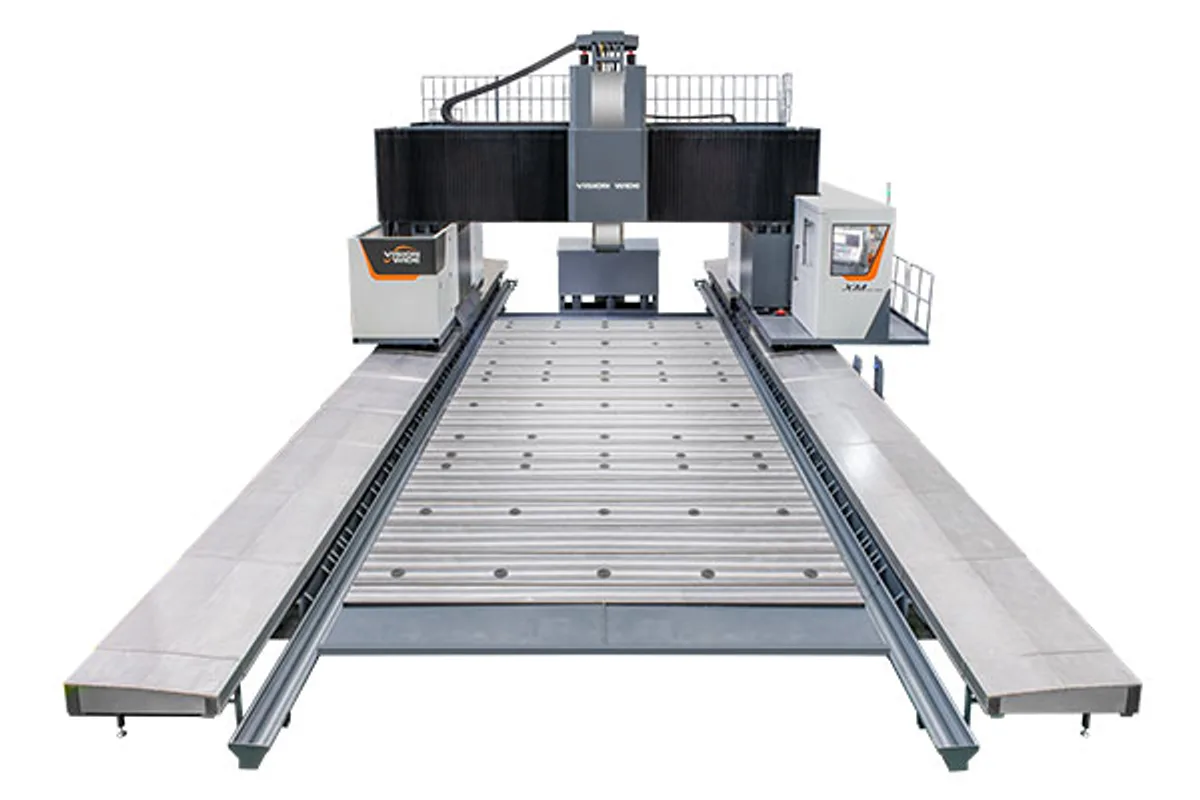

Vision Wide XM-37
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
ram size
How much does the Vision Wide XM-37 cost?
Price estimate
We do not have a price for the Vision Wide XM-37 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Headroom on the Vision Wide XM-37 is set by a choice of three Z strokes, and the specification table spells out what each gives. With the standard 1,000 mm, the distance from spindle nose to table runs 750~1,750 mm (29.5~68.9 in). With 1,200 mm it is 750~1,950 mm (29.5~76.8 in), and with 1,400 mm, 750~2,150 mm (29.5~84.6 in).
In all three the low point is the same, 750 mm above the table. That is a floor-type machine's trait: the ram does not come down to the table surface, so low parts are raised on blocks or fixtures to meet it, and tool length makes up the rest. The longer strokes add reach upward, for taller parts, not downward.
The ram is 470x460 mm (18.5x18.1 in), the smallest section in the XM family, which suits the modest Z travel.
Between the columns the XM-37 accepts a workpiece 3,200 mm (126.0 in) wide, with 3,700 mm (145.7 in) of Y travel. The table is listed as 3×(8~60) m at 5,000 kg/m2, and X travel is built to length within 8,200(+1m)~60,200 mm. Spindle power is 22/26 kW (29.5/34.9 hp). Rapids are 20/20/12 m/min.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 8,200(+1m)~60,200 mm |
| Y Axis Travel | 3,700 mm (145.7 in) |
| Z Axis Travel | 1,000 / 1,200 mm (39.4 / 47.2 in) (Opt.) / 1,400 mm (55.1 in) (Opt.) |
| Ram Size | 470x460 mm (18.5x18.1 in) |
| Distance Spindle Nose to Table Z 1000 Std | 750~1,750 mm (29.5~68.9 in) |
| Distance Spindle Nose to Table Z 1200 | 750~1,950 mm (29.5~76.8 in) |
| Distance Spindle Nose to Table Z 1400 | 750~2,150 mm (29.5~84.6 in) |
| Max Workpiece Width | 3,200 mm (126.0 in) |
| Table Size | 3×(8~60) m |
| Max Table Load | 5,000 kg/m2 |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp) |
| Spindle Speed 2 Step Gear | 4,000/ 6,000 rpm (Opt.) |
| Spindle Speed Built in Motor | 8,000 rpm (Opt.) / 12,000 rpm (Opt.) |
| Cutting Feed Rate | 1-10,000 mm/min |
| Rapid Traverse Xyz | 20/20/12 m/min |
| Tool Capacity | 32 / 40 pcs(Opt.) / 60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Three Z strokes: 1,000 mm standard, 1,200 mm and 1,400 mm optional
- Maximum workpiece width of 3,200 mm (126.0 in)
- Spindle nose to table distances are published for each Z stroke
- Table load of 5,000 kg/m2
Limitations
- The spindle nose comes no closer than 750 mm to the table
- Ram section of 470x460 mm (18.5x18.1 in) is the smallest in the XM family
- Longer Z strokes are options
Best For
Frequently Asked Questions
01
With the standard 1,000 mm Z travel the spindle nose to table distance is 750~1,750 mm (29.5~68.9 in). The optional 1,200 mm and 1,400 mm strokes give 750~1,950 mm and 750~2,150 mm.
02
Y travel is 3,700 mm (145.7 in) and the maximum workpiece width is 3,200 mm (126.0 in). The table is listed as 3×(8~60) m.
03
A ram of 470x460 mm (18.5x18.1 in). The larger XML and XMS machines list 580x580 mm (22.8x22.8 in); the XML-37 is the model with the same Y travel.
04
Rapid traverse is 20/20/12 m/min for X, Y and Z, and the cutting feed range is 1-10,000 mm/min. Spindle power is 22/26 kW (29.5/34.9 hp).
