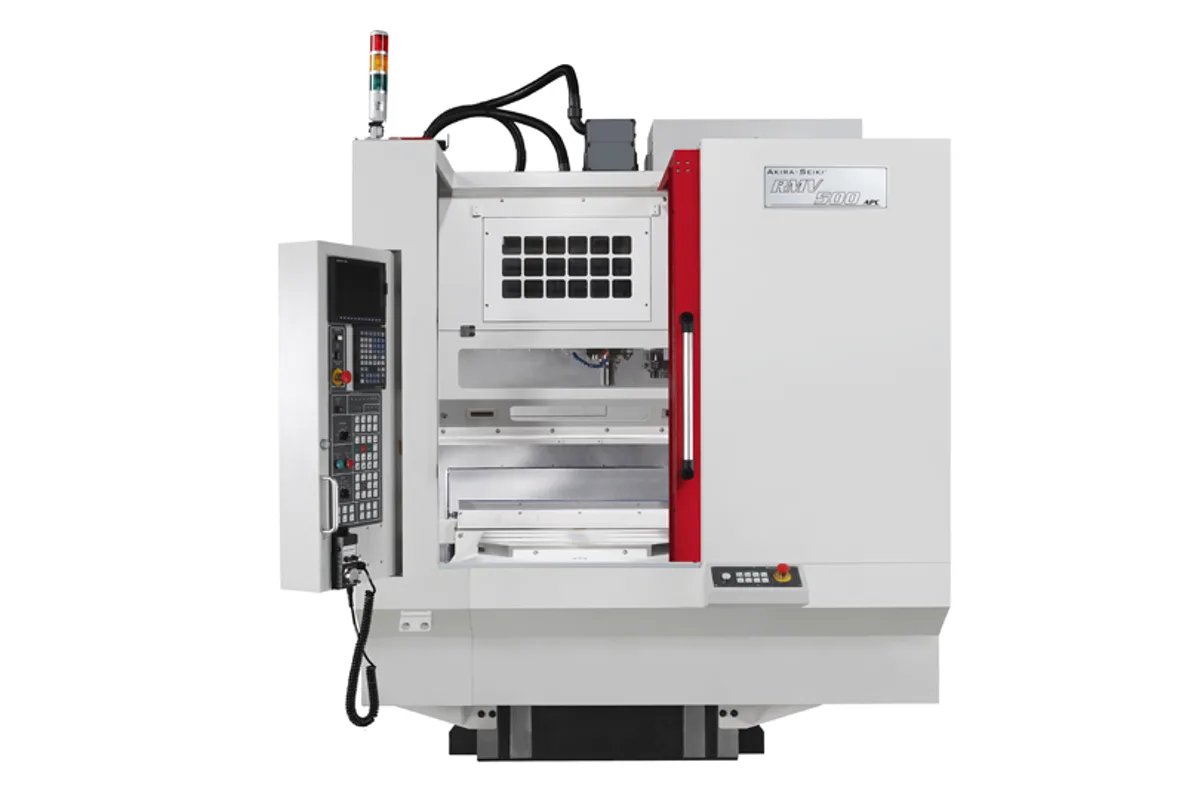

Akira Seiki RMV500APC
Image: akiraseiki.com, Akira Seiki
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Akira Seiki RMV500APC cost?
Price estimate
We do not have a price for the Akira Seiki RMV500APC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Akira Seiki RMV500APC is a small production machining center from the maker's fast twin pallet group. Akira Seiki describes the RMV-APC series as being for light chips, non-ferrous metal and composite material, and the specification is consistent with that: a BT30 spindle, very fast axes and a servo tool changer.
Travels are 500 mm (19.69 in) in X, 300 mm (11.81 in) in Y and 280 mm (11.02 in) in Z, over a 500 x 300 mm (19.69 x 11.81 in) table that takes 100 kg (220.46 lb). Rapid feed is 60 / 60 / 72 m/min (2,362 / 2,362 / 2,834 ipm), with Z the fastest axis. In drilling and tapping cycles Z makes the most moves, so that is where speed pays.
The tool change is the other headline: T-T 0.7 s and C-C 1.9 s from a servo 24T+1 magazine. Tools are small, at most 50 mm (1.97 in) in diameter, 175 mm (6.89 in) long and 2.5 kg (5.51 lb).
Spindle power is printed as 6 HP (4.5 kW) with an acceleration figure of 20 HP (14.9 kW), and the only speed in the table is 24,000 rpm, marked as an option. The taper is BT30, with HSK40A optional, and cooling is by air. Ask the maker for the standard spindle speed. Weight is 4,200 kg (9259.41 lb); power requirement is 10 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | AKIRA Mi:845 / (FANUC G code compatible) |
| X Axis Travel | 500 mm (19.69 in) |
| Y Axis Travel | 300 mm (11.81 in) |
| Z Axis Travel | 280 mm (11.02 in) |
| Distance Spindle Nose to Table | 150~430 mm (5.91~16.93 in) |
| Table Size | 500 x 300 mm (19.69 x 11.81 in) |
| Max Table Load | 100 kg (220.46 lb) |
| Spindle Motor Power | 6 HP (4.5 kW); acceleration: 20 HP (14.9 kW) |
| Max Spindle Speed | 24,000 rpm (OPT) |
| Spindle Taper | BT30 / HSK40A (OPT) |
| Spindle Cooling | Air Cooling |
| Rapid Traverse Xyz | 60 / 60 / 72 m/min (2,362 / 2,362 / 2,834 ipm) |
| Cutting Feed Rate | 10 / 10 / 10 m/min (394 / 394 / 394 ipm) |
| Positioning Accuracy | 0.012 mm (0.00047 in) |
| Repeatability | ±0.005 mm (±0.0002 in) |
| Tool Capacity | Servo 24T+1 |
| Max Tool Diameter (full magazine) | 50 mm (1.97 in) |
| Max Tool Length | 175 mm (6.89 in) |
| Max Tool Weight | 2.5 kg (5.51 lb) |
| Tool Change Time | T-T: 0.7 s; C-C: 1.9 s |
| Coolant Tank Capacity | 150 L (39.63 gal) |
| Power Requirement | 10 kVA |
| Air Pressure Requirement | 0.5 MPa (72.5 psi) |
| Machine Dimensions | 1,500 x 2,777 mm (59.06 x 109.33 in) |
| Machine Weight | 4,200 kg (9259.41 lb) |
Specifications sourced from akiraseiki.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Tool change of 0.7 s tool to tool and 1.9 s chip to chip
- Rapid feed of 60 / 60 / 72 m/min (2,362 / 2,362 / 2,834 ipm)
- Servo 24T+1 magazine for small tools
- HSK40A taper available as an option to BT30
- Only a 10 kVA supply is required
Limitations
- Table load of 100 kg (220.46 lb)
- Spindle power of 6 HP (4.5 kW) outside acceleration
- The table lists 24,000 rpm only as an option and gives no standard speed
- Tools limited to 2.5 kg (5.51 lb) and 50 mm (1.97 in) in diameter
Best For
Frequently Asked Questions
01
The servo-type changer is listed at T-T: 0.7 s and C-C: 1.9 s. The magazine is a servo 24T+1, and tools can be up to 50 mm (1.97 in) in diameter and 175 mm (6.89 in) long.
02
500 mm (19.69 in) in X, 300 mm (11.81 in) in Y and 280 mm (11.02 in) in Z. The table is 500 x 300 mm (19.69 x 11.81 in) with a maximum loading of 100 kg (220.46 lb).
03
A BT30 spindle with air cooling, HSK40A optional. Power is listed as 6 HP (4.5 kW) with 20 HP (14.9 kW) for acceleration. The speed row shows 24,000 rpm as an option.
04
The RMV700APC is the larger machine with a BT40 spindle: 700 mm (27.56 in) of X, 400 mm (15.75 in) of Y and Z, a 160 kg (352.74 lb) table load and a 25 kVA supply. Its tool change is slower, at 1.9 s tool to tool.
