Vision Wide GSA-1627

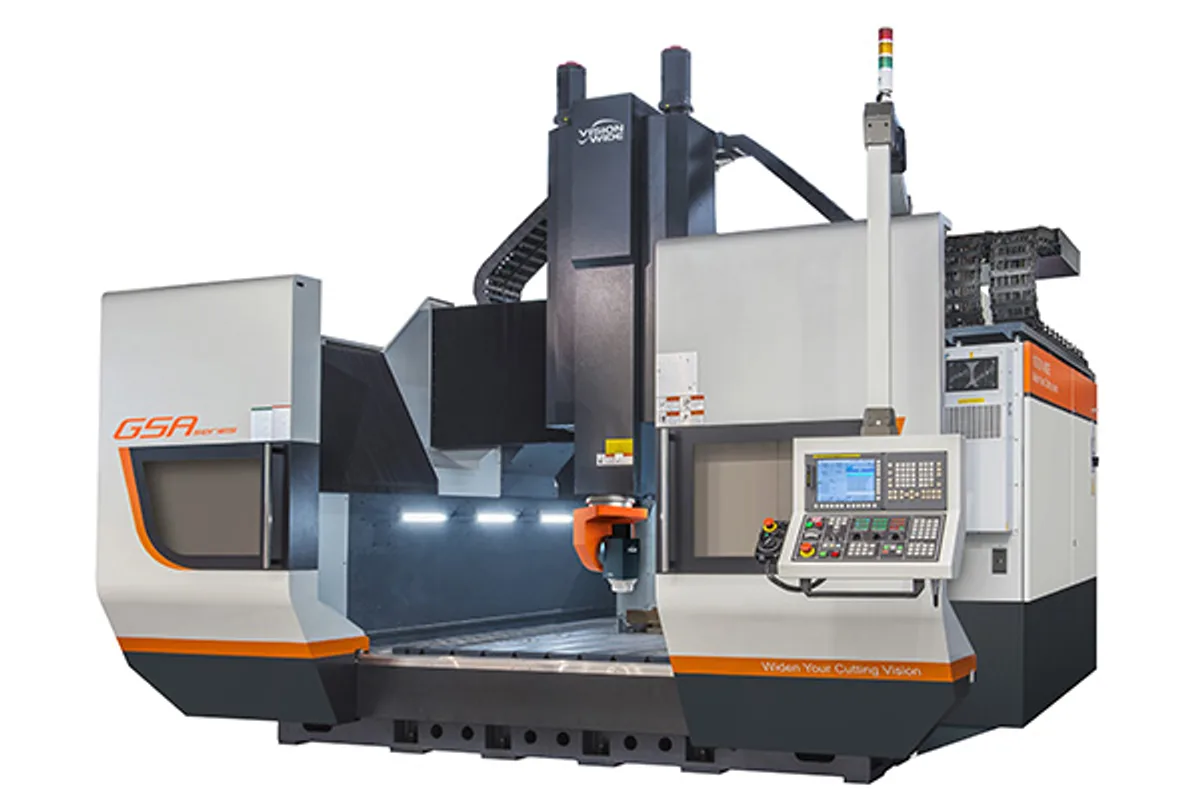

Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
spindle power cont 30 min
How much does the Vision Wide GSA-1627 cost?
Price estimate
We do not have a price for the Vision Wide GSA-1627 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide GSA-1627 is the shortest machine in the GSA series of 3+2 axis gantry type machining centers. Its fixed table measures 1,600×2,700 mm (63.0×106.3 in), with 1,600 mm (63.0 in) of X travel and 2,700 mm (106.3 in) of Y.
What makes it 3+2 is the head. Vision Wide fits its own IAC indexing attached head, a two-axis head that sets the spindle to an angle and locks there while the three linear axes do the cutting. Indexing is automatic in steps of 1 degree on both the B axis and the C axis. The maker says the head shortens tool travel and the cutting process and is meant for composite angle machining.
In practice that means a short, stiff tool can be pointed at a steep mold wall or an angled hole where a three-axis machine would need a long tool reaching down from above.
The spindle is strong for a high-speed head: 50/65 kW (67.1/87.2 hp) at 15,000 rpm, with an HSK-A100 interface on the standard IAC-15,000rpm unit. Rapid traverse is 32/32/20 m/min and cutting feed 1~20,000 mm/min. The control is a HEIDENHAIN TNC640. Z travel is 1,000 mm, with 1,200 mm as an option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in)(Opt.) |
| Table Size | 1,600×2,700 mm (63.0×106.3 in) |
| Spindle Power Cont 30 Min | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1~20,000 mm/min |
| Rapid Traverse Xyz | 32/32/20 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- IAC indexing attached head with automatic 1-degree indexing on B and C
- 50/65 kW (67.1/87.2 hp) spindle at 15,000 rpm
- Rapid traverse of 32/32/20 m/min
- HEIDENHAIN TNC640 controller as standard
- X axis dual linear scale and Y/Z-axis linear scale are standard
Limitations
- Indexed positioning only; the page describes a 3+2 axis machine, not continuous five-axis cutting
- X travel of 1,600 mm (63.0 in) is the shortest in the series
- Standard magazine is a vertical type 20T; 32T is optional
Best For
Frequently Asked Questions
01
IAC stands for indexing attached head in Vision Wide's text. It is a two-axis head that indexes automatically, 1 degree per step on the B axis and on the C axis, so the spindle can be set at an angle for 3+2 axis machining.
02
Vision Wide calls the GSA a 3+2 axis gantry type machining center with an indexing head. For continuous five-axis work the maker has the GSF series; the GSF-1627 has the same travels with direct-driven B and C axes.
03
X is 1,600 mm (63.0 in), Y is 2,700 mm (106.3 in) and Z is 1,000/1,200 mm (39.4/47.2 in)(Opt.), the longer Z being optional.
04
The standard head is listed as IAC-15,000rpm/HSK-A100. Spindle power is 50/65 kW (67.1/87.2 hp) and the feature list notes a high tool clamping force of 20kN.
