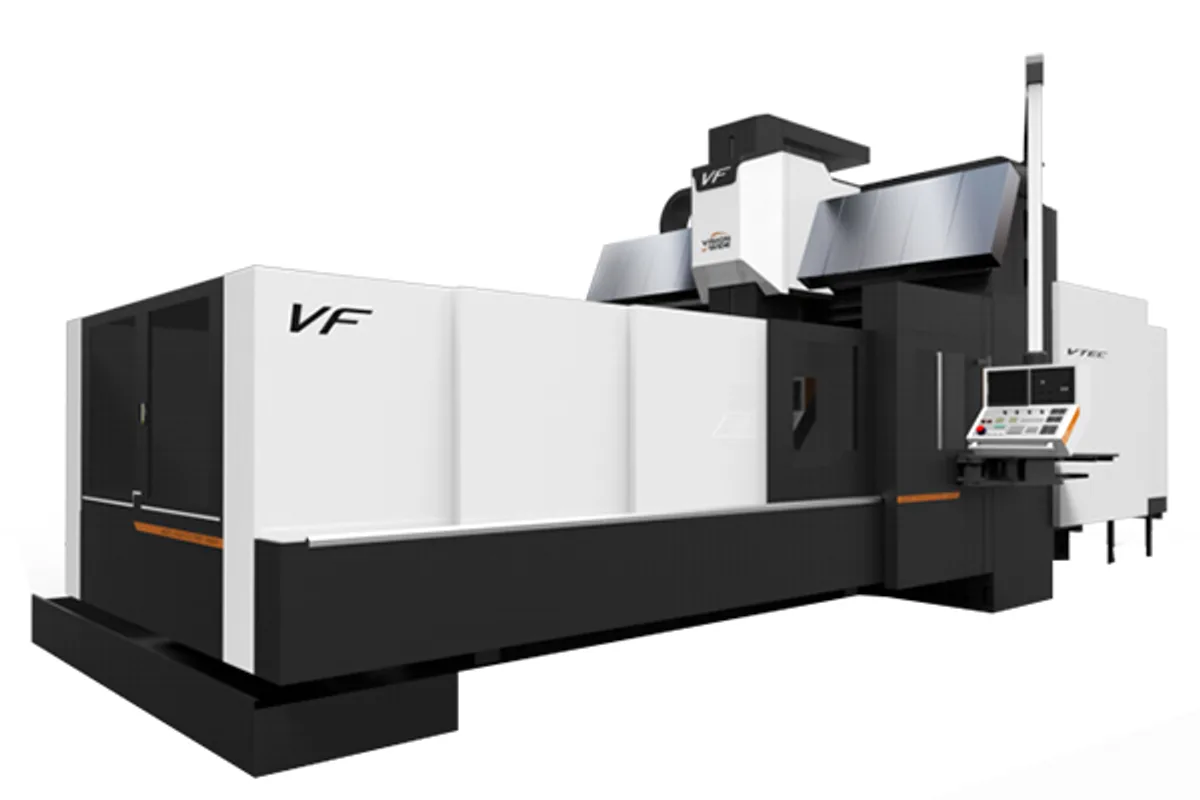

Vision Wide VF-5026
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide VF-5026 cost?
Price estimate
We do not have a price for the Vision Wide VF-5026 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide VF-5026 is the largest VF: 5,200 mm (204.7 in) of X travel, 2,600 mm (102.4 in) of Y, and a 5,200x2,050 mm (204.7x80.7 in) table for 15,000 kg (33,069 lb), all on hardened box ways.
Being a plain, strong three-axis machine, it gains most from a few well-chosen options. XYZ-axis linear scale feedback is one. Box way axes have more friction than rolling guides, and over five metres the difference between where the motor thinks the table is and where it is can grow; a scale closes that gap. A rotary table is another, turning the machine into a four-axis one for parts machined on several faces. A 60 tools magazine with arm type ATC replaces the standard 40. And the professional version of the remote monitoring software is offered, though not with a Siemens controller.
As standard the machine comes with a Fanuc 0iMF PLUS control, a 4,000 rpm two-step gear spindle, ball screw cooling, an X-axis ball screw supporter and chip conveyors on the table side and at the end.
Rapids are 10 m/min in X and 12 m/min in Y and Z. Power is 18.5/22 kW (24.8/29.5 hp), or optionally 22/26 kW (29.5/34.9 hp) or 30/37 kW (40.2/49.6 hp).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,200 mm (204.7 in) |
| Y Axis Travel | 2,600 mm (102.4 in) |
| Z Axis Travel | 920/1,020 mm (36.2/40.2 in)(Opt.) |
| Table Size | 5,200x2,050 mm (204.7x80.7 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X:10 m/min Y/Z:12 m/min |
| Tool Capacity | 40/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Largest VF envelope: 5,200 mm (204.7 in) by 2,600 mm (102.4 in)
- 15,000 kg (33,069 lb) table load on box ways
- Optional XYZ-axis linear scale feedback and rotary table
- 60 tools magazine available over the standard 40
Limitations
- Linear scales are optional on a 5,200 mm (204.7 in) box way axis
- X rapid of 10 m/min, slower than Y and Z
- Z travel of 920 mm, or 1,020 mm as an option
Best For
Frequently Asked Questions
01
The VF-5026, with 5,200 mm (204.7 in) of X travel, 2,600 mm (102.4 in) of Y and a 5,200x2,050 mm (204.7x80.7 in) table rated for 15,000 kg (33,069 lb).
02
The list includes XYZ-axis linear scale feedback, a rotary table, a 60 tools magazine with arm type ATC, a 6,000 rpm 2-step gear spindle and through-spindle coolant at 20/70 bar. None is part of the standard machine.
03
The VF-5000 has 2,300 mm (90.6 in) of Y travel and the VF-5026 has 2,600 mm (102.4 in). Table size, load, spindle and rapids are the same in the maker's table.
04
A Fanuc 0iMF PLUS Controller, a 4,000 rpm two-step gear spindle, an X-axis ball screw supporter, a ball screw cooling system, a cutting fluid cooling system, a 40 tools magazine and screw and caterpillar chip conveyors.
