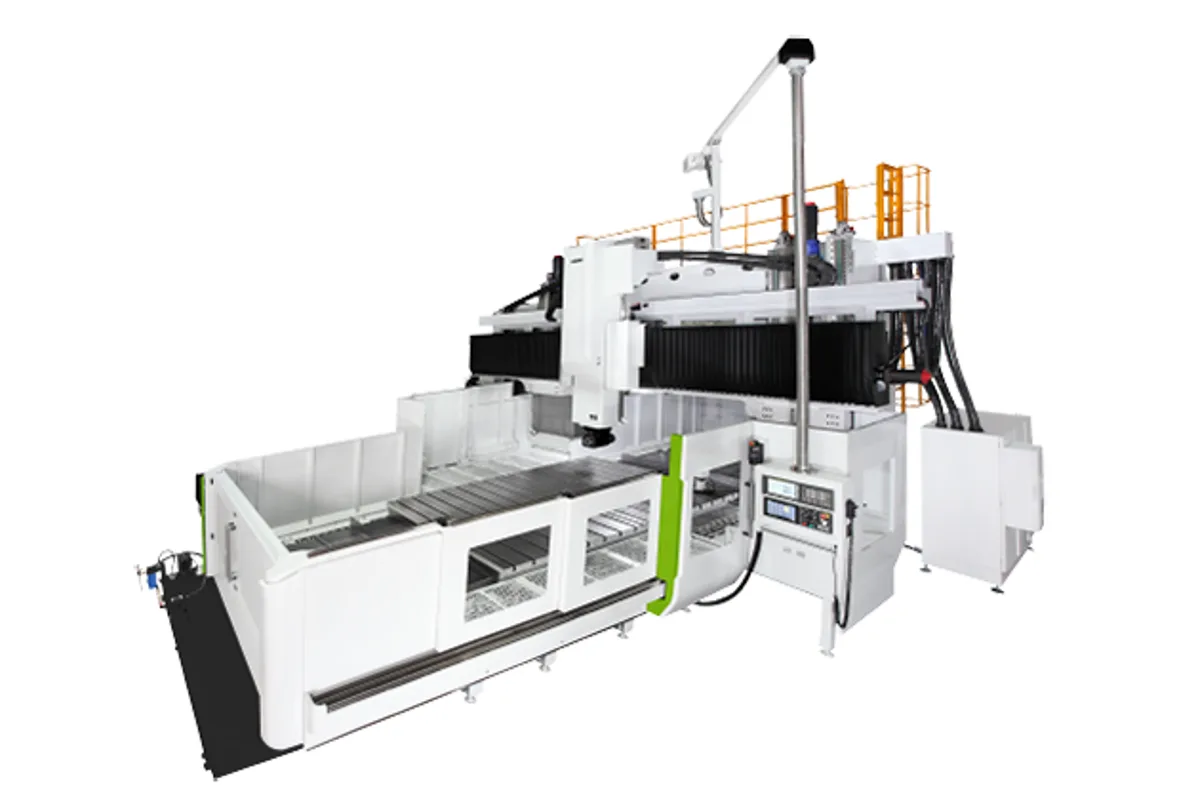

Hartford MW-633
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford MW-633 cost?
Price estimate
We do not have a price for the Hartford MW-633 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford MW-633 is a six-metre moving-crossbeam double-column machining center on the narrower MW bridge. X travel is 6,000 mm (236.2 in), Y is 3,300 mm (129.9 in), and the table is 6,000 x 2,200 mm (236.2 x 86.6 in) with an 18,000 kg (39,683 lb) load.
Long, narrow and tall is a common shape in heavy engineering: the bed of a lathe, the column of a boring mill, the frame of a press. Such parts need their top machined flat over the full length and their sides and ends drilled, bored and tapped. On the MW-633 the top is cut with the main spindle and the sides with a 90 degree head, in one clamping, and the crossbeam is lowered to keep the ram short whatever the part height.
Hartford describes its own gear head, listed here at 6,000 / 8,000 rpm, and a hybrid spindle at 10,000 rpm. The spindle nose is #50 and the motor 18.5 / 22 kW, with 30 / 35 kW as the option. Spindle run-out is stated as within 5μm.
The W axis travels 1,200 mm, optionally 1,500 mm or 1,800 mm; Z travels 1,000 mm, optionally 1,200 mm. BT-50 tools, or CAT50, DIN or BBT50, are held in a magazine of 32, 40 or 62.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 6,000 x 2,200 mm (236.2 x 86.6 in) |
| Max Table Load | 18,000 kg (39,683 lb) |
| X Axis Travel | 6,000 mm (236.2 in) |
| Y Axis Travel | 3,300 mm (129.9 in) |
| Z Axis Travel | 1,000 opt. 1,200 mm |
| W Axis Travel | 1,200 opt. 1,500 / 1,800 mm |
| Spindle Taper | #50 |
| Spindle Speed Hybrid | 10,000 rpm |
| Spindle Speed Gear | 6,000 / 8,000 rpm |
| Tool Capacity | A: 32 (40 / 62) pcs |
| Tool Shank | BT-50 (CAT50 / DIN / BBT50) |
| Spindle Motor Power | 18.5 / 22 opt. 30 / 35 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 6,000 mm (236.2 in) of X travel with a moving crossbeam
- 18,000 kg (39,683 lb) table load
- Top and side machining in one clamping with automatic heads
- Stated spindle run-out within 5μm
- W axis options up to 1,800 mm
Limitations
- Table width of 2,200 mm; wide parts need the MW-643
- Gear spindle limited to 8,000 rpm and hybrid to 10,000 rpm
- The tool magazine does not go beyond 62 tools
- Machine weight and foundation needs are not on the page
Best For
Frequently Asked Questions
01
X travel 6,000 mm (236.2 in), Y travel 3,300 mm (129.9 in), Z travel 1,000 mm (1,200 mm optional), W travel 1,200 mm (1,500 or 1,800 mm optional). Table 6,000 x 2,200 mm (236.2 x 86.6 in).
02
18,000 kg (39,683 lb) as an average table load. For comparison, the wider MW-643 is rated for 24,000 kg (52,910 lb).
03
To match the beam height to the part. Hartford's W-axis uses twin ballscrews and twin servo motors and can be positioned anywhere in its stroke with a stated accuracy of 0.03 mm, so the Z ram can stay short for stiffer cutting.
04
BT-50, with CAT50, DIN and BBT50 as alternatives, on a #50 spindle. The tool magazine entry is A: 32 (40 / 62) pcs.
