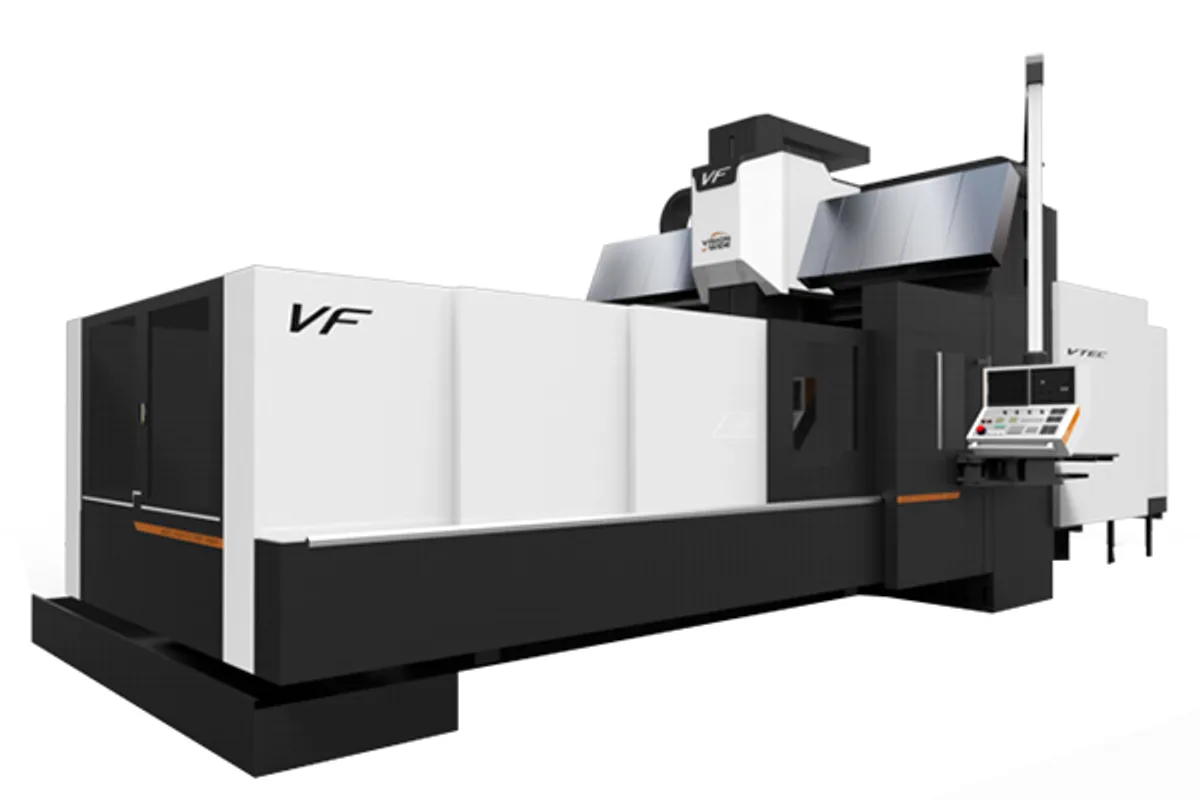

Vision Wide VF-5000
Image: visionwide-tech.com, Vision Wide
Key Specifications
Tool Capacity
Table Size
x axis travel
y axis travel
z axis travel
max table load
How much does the Vision Wide VF-5000 cost?
Price estimate
We do not have a price for the Vision Wide VF-5000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Fifteen tonnes on a five-metre box way table is the measure of the Vision Wide VF-5000. The table is 5,200x2,050 mm (204.7x80.7 in), rated for 15,000 kg (33,069 lb), with 5,200 mm (204.7 in) of X travel and 2,300 mm (90.6 in) of Y.
It is the longest machine the maker builds with box ways on every axis. The VB series stops at the VB-4020, which has 4,100 mm (161.4 in) of X and carries 12,000 kg (26,455 lb). Past that length, a buyer who wants sliding ways and not linear guides is looking at the VF.
What kind of work asks for that? Deep, interrupted cuts in tough material over a long part: forging dies, rolling-mill and press components, heavy fabricated frames with hard weld seams. In such cuts the damping of a scraped box way does more for tool life than extra axis speed would for cycle time.
The axis speeds are accordingly modest: 10 m/min in X, 12 m/min in Y and Z, and 1-7,000 mm/min in the cut. The spindle is a 4,000 rpm two-step gear type on 18.5/22 kW (24.8/29.5 hp), with larger motors optional. Z travel is 920 mm, or 1,020 mm.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,200 mm (204.7 in) |
| Y Axis Travel | 2,300 mm (90.6 in) |
| Z Axis Travel | 920/1,020 mm (36.2/40.2 in)(Opt.) |
| Table Size | 5,200x2,050 mm (204.7x80.7 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Spindle Power Cont 30 Min | 18.5/22 kW (24.8/29.5 hp)(22/26 kW (29.5/34.9 hp) Opt.) (30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed 2 Step Gear | 4,000/6,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xyz | X:10 m/min Y/Z:12 m/min |
| Tool Capacity | 40/60 pcs(Opt.) |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 5,200 mm (204.7 in) of X travel on box ways, the longest in the maker's box way lines
- 15,000 kg (33,069 lb) table load
- 5,200x2,050 mm (204.7x80.7 in) table
- Optional motors of 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp)
Limitations
- X rapid of 10 m/min over a 5,200 mm (204.7 in) stroke
- Cutting feed of 1-7,000 mm/min
- Y travel of 2,300 mm (90.6 in); the VF-5026 is the wider version
Best For
Frequently Asked Questions
01
The VF-5000 and VF-5026, each with 5,200 mm (204.7 in) of X travel and a 5,200x2,050 mm (204.7x80.7 in) table for 15,000 kg (33,069 lb). The VB series ends at the VB-4020 with 4,100 mm (161.4 in) of X.
02
5,200 mm (204.7 in) in X, 2,300 mm (90.6 in) in Y and 920/1,020 mm (36.2/40.2 in)(Opt.) in Z, where the longer Z is an option.
03
X rapid is 10 m/min and Y and Z are 12 m/min. Cutting feed is 1-7,000 mm/min. The series uses box ways, which favour damping over speed.
04
18.5/22 kW (24.8/29.5 hp) as standard. The table also lists 22/26 kW (29.5/34.9 hp) and 30/37 kW (40.2/49.6 hp) as options, with a gear spindle of 4,000 rpm or optionally 6,000 rpm.
