Jingdiao JDHGT1200T(H)

Q: How much does the Jingdiao JDHGT1200T(H) cost?

The price estimate for the Jingdiao JDHGT1200T(H) is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/jingdiao-jdhgt1200t-h#price; the request is passed to Jingdiao or an authorised dealer.

Specs verified 2026-10-04 · en.jingdiao.com Updated 2026-10-04

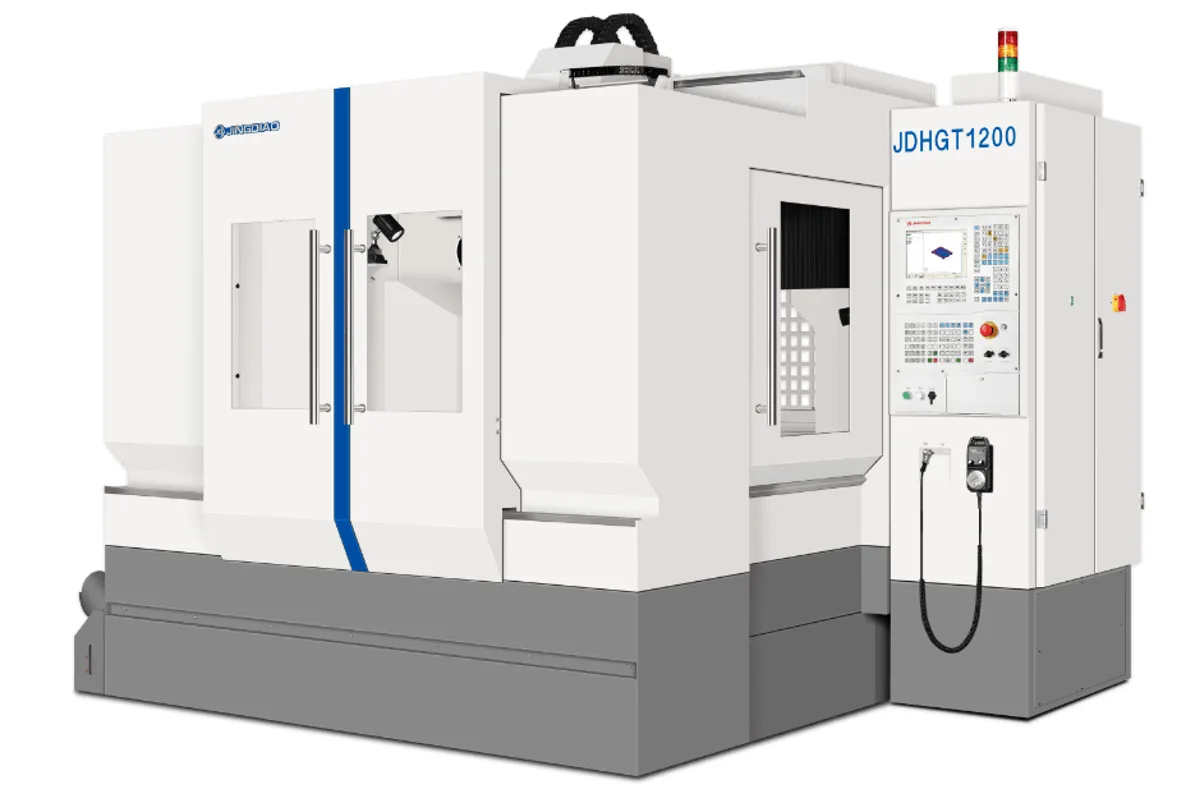

Jingdiao JDHGT1200 3-axis high-speed machining center

Image: en.jingdiao.com, Jingdiao

Key Specifications

Max Spindle

20,000 rpm (JDHGT1200T); 15,000 rpm (JDHGT1200TH)

Spindle Taper

HSK-A50 (JDHGT1200T); HSK-A63 (JDHGT1200TH)

Table Size

1,250 × 850 mm (49.2 × 33.5 in)

Accuracy

0.002 / 0.003 / 0.002 mm (X/Y/Z)

Repeatability

0.0018 / 0.0025 / 0.0018 mm (X/Y/Z)

x axis travel

1,200 mm (47.2 in)

How much does the Jingdiao JDHGT1200T(H) cost?

Price estimate

Uncertain

We do not have a price for the Jingdiao JDHGT1200T(H) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Jingdiao JDHGT1200T(H) stretches the JDHGT 3-axis design to 1,200 mm (47.2 in) of X travel while keeping 800 mm (31.5 in) of Y. It is the machine in the line for long mold parts: the worktable is 1,250 × 850 mm (49.2 × 33.5 in) and takes 1,000 kg (2,205 lb). As with its smaller siblings there are two heights, 350 mm (13.8 in) of Z on the JDHGT1200T and 450 mm (17.7 in) on the JDHGT1200TH.

What stands out in the data sheet is that the accuracy rows do not relax with the longer axis. Positioning accuracy is 0.002 / 0.003 / 0.002 mm (X/Y/Z) and repeatability 0.0018 / 0.0025 / 0.0018 mm, the same figures the JDHGT800T(H) carries on 800 mm (31.5 in) of X. For finished parts the maker states 5-20μm machining accuracy.

The operator works from the side of the machine, close to the cutting area, while the front door is left clear for hoisting large workpieces onto the table. Screw chip conveyors sit on the left, right and front sides. These are details Jingdiao lists under its design for medium and large mold processing, and they matter more here than on the smaller frames because a part this long is rarely loaded by hand.

The JDHGT1200T takes a 20,000 rpm HSK-A50 spindle, optionally with coolant through the spindle, and the JDHGT1200TH a 15,000 rpm HSK-A63 spindle. A chain magazine with 37 tools serves both. Rapids are 15 m/min (591 ipm), the top feed is 10 m/min (394 ipm) and the machine weighs 11,000 kg (24,250 lb). A graphite cutting configuration and the maker's direct drive rotary tables are listed as ways to extend it.

Full Specifications

Parameter	Value
X Axis Travel	1,200 mm (47.2 in)
Y Axis Travel	800 mm (31.5 in)
Z Axis Travel	350 mm (13.8 in) on the JDHGT1200T; 450 mm (17.7 in) on the JDHGT1200TH
Table Size	1,250 × 850 mm (49.2 × 33.5 in)
Max Table Load	1,000 kg (2,205 lb)
Spindle Type	JDHGT1200T: JD150S-20-HA50/C or JD150SC-20-HA50/A (coolant through spindle). JDHGT1200TH: JD180S-15-HA63/B
Max Spindle Speed	20,000 rpm (JDHGT1200T); 15,000 rpm (JDHGT1200TH)
Spindle Taper	HSK-A50 (JDHGT1200T); HSK-A63 (JDHGT1200TH)
Tool Magazine	Chain Type (37 Tools)
Positioning Accuracy	0.002 / 0.003 / 0.002 mm (X/Y/Z)
Repeatability	0.0018 / 0.0025 / 0.0018 mm (X/Y/Z)
Rapid Traverse Xyz	15 m/min (591 ipm)
Cutting Feed Rate	10 m/min (394 ipm)
Drive System	AC Servo
CNC Control	JD50 Control System
Power Requirement	3-Phase, 380V/50Hz, or Customized
Air Pressure	≥0.52 MPa
Machine Weight	11,000 kg (24,250 lb)

Specifications sourced from en.jingdiao.com — verified 2026-10-04

Strengths & Limitations

Strengths

X travel of 1,200 mm (47.2 in) over a 1,250 × 850 mm (49.2 × 33.5 in) table
Positioning accuracy of 0.002 / 0.003 / 0.002 mm (X/Y/Z), unchanged from the shorter JDHGT800T(H)
Side operating position keeps the front door free for hoist loading of large workpieces
Choice of 350 mm (13.8 in) or 450 mm (17.7 in) of Z, with an HSK-A63 spindle on the taller version
Graphite cutting configuration and direct drive rotary tables are available to widen the range of work

Limitations

Table load stays at 1,000 kg (2,205 lb), the same as the JDHGT800T(H), despite the longer table
Rapids of 15 m/min (591 ipm) mean long non-cutting moves across 1,200 mm (47.2 in) of X
Spindle speed tops out at 20,000 rpm, or 15,000 rpm on the JDHGT1200TH
At 11,000 kg (24,250 lb) the machine needs foundation and rigging planning

Best For

Long precision mold inserts and plates up to 1,000 kg (2,205 lb) Medium and large mold parts that are loaded by hoist through the front door Micro-hole drilling and precision hole grinding on large workpieces Graphite parts, with the graphite cutting configuration

Frequently Asked Questions

01 What are the travels of the JDHGT1200T(H)?

X travel is 1,200 mm (47.2 in) and Y travel is 800 mm (31.5 in) on both versions. Z travel is 350 mm (13.8 in) on the JDHGT1200T and 450 mm (17.7 in) on the JDHGT1200TH. The worktable measures 1,250 × 850 mm (49.2 × 33.5 in).

02 How much weight can the table carry?

The maximum load is 1,000 kg (2,205 lb). That is the same rating as the JDHGT800T(H), so the longer table adds length for the part or for several fixtures in a row, not extra weight capacity. Add up fixtures and any rotary table before quoting a heavy job.

03 Which spindle comes with each version?

The JDHGT1200T is listed with a 20,000 rpm HSK-A50 high-speed precision spindle, also available as a coolant through spindle. The JDHGT1200TH is listed with a 15,000 rpm HSK-A63 high-speed precision spindle. Both versions use a chain type magazine with 37 tools.

04 Is the JDHGT1200T(H) less accurate than the smaller JDHGT machines?

Not on paper. The data sheet lists 0.002 / 0.003 / 0.002 mm (X/Y/Z) positioning accuracy and 0.0018 / 0.0025 / 0.0018 mm repeatability, calibrated with reference to ISO230-2. Those are the figures of the JDHGT800T(H) as well. Stated machining accuracy for finished parts is 5-20μm.

05 Can it machine graphite or do mill-turn work?

Jingdiao says a processing configuration for graphite cutting can be selected to machine graphite parts. It also lists precision direct drive rotary tables to expand multi-axis processing, and names the DRTV215L rotary table as the way to combine milling and turning on this machine.
