Vision Wide HF-6047M

Q: How much does the Vision Wide HF-6047M cost?

The price estimate for the Vision Wide HF-6047M is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-hf-6047m#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

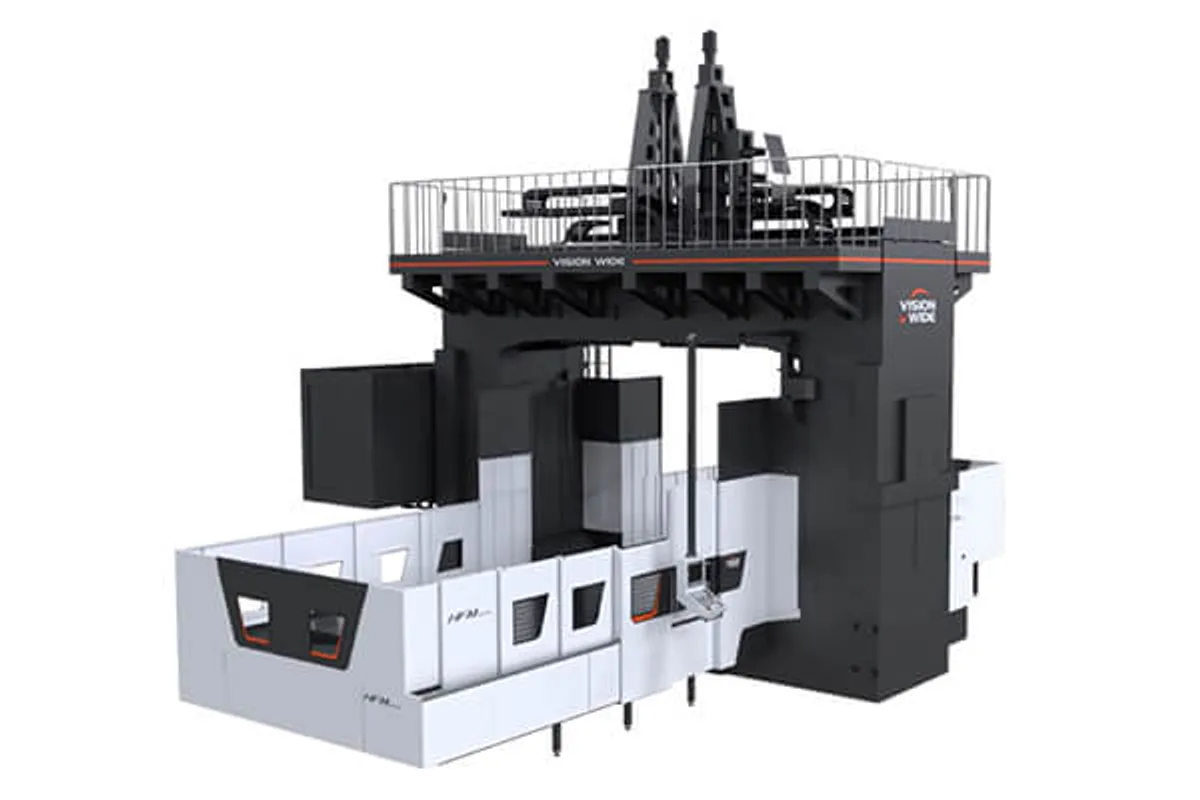

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

6,000×3,500 mm (236.2×137.8 in)

x axis travel

6,100 mm (240.2 in)

y axis travel

4,700 mm (185.0 in)

z axis travel

1,500 mm (59.1 in)

max table load

28,000 kg (61,728 lb)

spindle power cont 30 min

22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.)

How much does the Vision Wide HF-6047M cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide HF-6047M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Wider by one step than the HF-6042M, the Vision Wide HF-6047M has 4,700 mm (185.0 in) of Y travel over a 6,000×3,500 mm (236.2×137.8 in) table. X travel is 6,100 mm (240.2 in), Z travel is 1,500 mm (59.1 in) and the load rating is 28,000 kg (61,728 lb).

Those proportions describe a working volume more than a table. The spindle can cover a part six metres long, three and a half wide and, with the head's stroke, a metre and a half deep. Large mold halves, machine columns, gear housings and nacelle-type fabrications fall in that range, and they are parts that often cannot be turned over once they are on the machine.

That is the case for automatic five-face machining. Vision Wide says it developed tool center point compensation, an auto multi-angle head attachment and an auto tool change system to complete it.

Motion is brisk for the size. The rapid traverse row reads 15/15/12 m/min. Cutting feed is 1~7,000 mm/min. The spindle is a 2-step gear type, 4,000rpm standard, with 22/26 kW (29.5/34.9 hp); the maker quotes 1,500~2,000Nm of spindle torque output for the series.

Full Specifications

Parameter	Value
X Axis Travel	6,100 mm (240.2 in)
Y Axis Travel	4,700 mm (185.0 in)
Z Axis Travel	1,500 mm (59.1 in)
Table Size	6,000×3,500 mm (236.2×137.8 in)
Max Table Load	28,000 kg (61,728 lb)
Spindle Power Cont 30 Min	22/26 kW (29.5/34.9 hp) (30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear	4,000/6,000 rpm (Opt.)
Spindle Speed Linear Way Enclosed Box Ram Direct Driven	10,000 rpm (Opt.)
Cutting Feed Rate	1~7,000 mm/min
Rapid Traverse Xyz Box Way	15/15/12 m/min

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

6,100 mm (240.2 in) by 4,700 mm (185.0 in) by 1,500 mm (59.1 in) of travel
6,000×3,500 mm (236.2×137.8 in) table
Auto multi-angle head attachment and auto tool change for five-face work
Rapid traverse of 15/15/12 m/min

Limitations

Load rating of 28,000 kg (61,728 lb) is no higher than on the HF-6042M
The page publishes no attachment head dimensions or angles
Cutting feed of 1~7,000 mm/min

Best For

Large mold halves and gear housings Deep fabrications that cannot be turned over Parts up to 28,000 kg (61,728 lb) needing 4,700 mm (185.0 in) of Y

Frequently Asked Questions

01 What is the working volume of the Vision Wide HF-6047M?

X travel is 6,100 mm (240.2 in), Y travel 4,700 mm (185.0 in) and Z travel 1,500 mm (59.1 in). The table measures 6,000×3,500 mm (236.2×137.8 in).

02 How does the HF-6047M differ from the HF-6042M?

The HF-6042M has 4,200 mm (165.4 in) of Y and a 6,000×3,000 mm (236.2×118.1 in) table. The HF-6047M has 4,700 mm (185.0 in) of Y and a 6,000×3,500 mm (236.2×137.8 in) table. Both carry 28,000 kg (61,728 lb).

03 How is five-face machining done on the HF-6047M?

Vision Wide says it developed tool center point compensation, auto multi-angle head attachment and an auto tool change system to complete auto 5-face machining on the HFM series.

04 What spindle power does the HF-6047M have?

22/26 kW (29.5/34.9 hp) as listed, with 30/37 kW (40.2/49.6 hp) as an option. The standard spindle is a 2-step gear type at 4,000rpm, and the stated spindle torque output is 1,500~2,000Nm.
