Vision Wide Vertical Machining Centers (VMC)

Vision Wide MS-3120

Q: How much does the Vision Wide MS-3120 cost?

The price estimate for the Vision Wide MS-3120 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-ms-3120#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

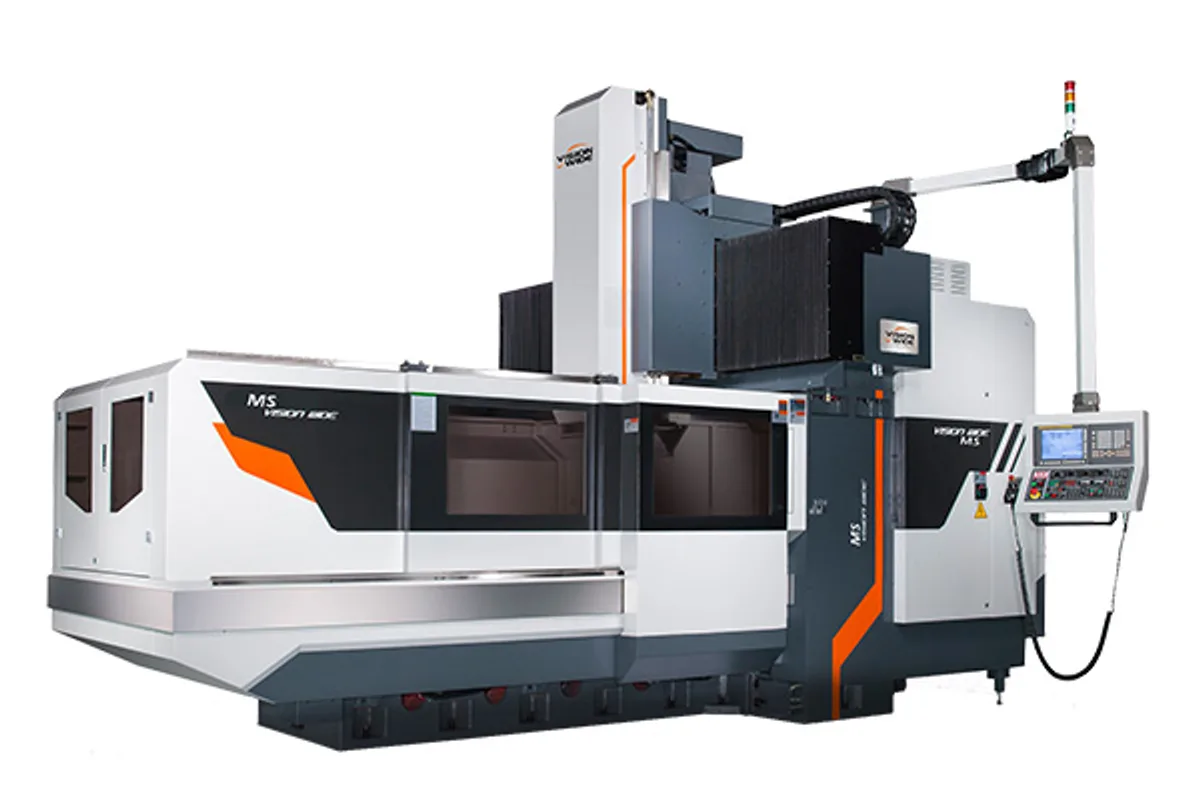

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

3,000x1,800 mm (118.1x70.9 in)

x axis travel

3,100 mm (122.0 in)

y axis travel

2,000 mm (78.7 in)

z axis travel box way

800 /1,020 mm (31.5 /40.2 in) (Opt.)

z axis travel linear way

800 /1,000 mm (31.5 /39.4 in) (Opt.)

max table load

10,000 kg (22,046 lb)

How much does the Vision Wide MS-3120 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide MS-3120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

On the Vision Wide MS-3120 the upper guide of the Y axis is placed on top of the beam. Vision Wide describes the Y-axis upper roller way as positioned on the top of the beam at maximum span, for strong support.

The span in question is the vertical distance between the two Y guideways. The saddle that carries the head is held by an upper and a lower way, and the cutting force at the tool tries to rock it about them. The further apart the ways are, the smaller the force each has to resist and the less the tool point moves. Putting the upper way on the top face of the beam, not on its front, is how the designer gets the greatest spacing the beam section allows.

That support matters more as the beam lengthens. This model has 2,000 mm (78.7 in) of Y travel and 3,100 mm (122.0 in) of X, over a 3,000x1,800 mm (118.1x70.9 in) table rated for 10,000 kg (22,046 lb).

The spindle is a 6,000rpm 2-step gear type, 18.5/22 kW (24.8/29.5 hp), on a box way Z axis. Rapid traverse is 24 m/min in X and Y. Like the other MS models it is a milling machine first: the magazine with arm type ATC is an option.

Full Specifications

Parameter	Value
X Axis Travel	3,100 mm (122.0 in)
Y Axis Travel	2,000 mm (78.7 in)
Z Axis Travel Box Way	800 /1,020 mm (31.5 /40.2 in) (Opt.)
Z Axis Travel Linear Way	800 /1,000 mm (31.5 /39.4 in) (Opt.)
Table Size	3,000x1,800 mm (118.1x70.9 in)
Max Table Load	10,000 kg (22,046 lb)
Spindle Power Cont 30 Min	18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	6,000/4,000 rpm(Opt.)
Spindle Speed Linear Way Direct Driven	10,000 rpm(Opt.)/ 12,000 rpm(Opt.)
Spindle Speed Linear Way Built in	10,000 rpm(Opt.)
Cutting Feed Rate	1-10,000 mm/min
Rapid Traverse Xyz	XY：24 m/min / Z：15 m/min
Tool Capacity Vertical Tool Change	32/40 pcs(Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Y-axis upper roller way on top of the beam at maximum span
3,000x1,800 mm (118.1x70.9 in) table for 10,000 kg (22,046 lb)
24 m/min rapids in X and Y
Geared 6,000rpm spindle on a box way Z axis

Limitations

No stiffness figure accompanies the structural description
Tool magazine is optional
Y travel of 2,000 mm (78.7 in) is the limit without a wider frame

Best For

Heavy face milling across wide parts Medium molds and die sets up to 10,000 kg (22,046 lb) Milling where saddle stiffness limits the cut

Frequently Asked Questions

01 What is special about the Y axis of the Vision Wide MS-3120?

Vision Wide says the Y-axis upper roller way is positioned on the top of the beam at a maximum span design that offers strong support. The X and Y axes both run on heavy duty roller ways.

02 What are the MS-3120 table and travels?

The table is 3,000x1,800 mm (118.1x70.9 in) for 10,000 kg (22,046 lb). X travel is 3,100 mm (122.0 in) and Y travel 2,000 mm (78.7 in).

03 What Z travel does the MS-3120 have?

800 mm as standard. The option list has Z axis travel 1,020mm on the box way spindle head, for AC head attachment, and 1,000mm on the linear way spindle head.

04 Can the MS-3120 have a wider Y travel?

The MS-3123 and MS-3127 have 2,300 mm (90.6 in) and 2,700 mm (106.3 in) of Y on the same X travel, with floor-standing tool changers in their tables.
