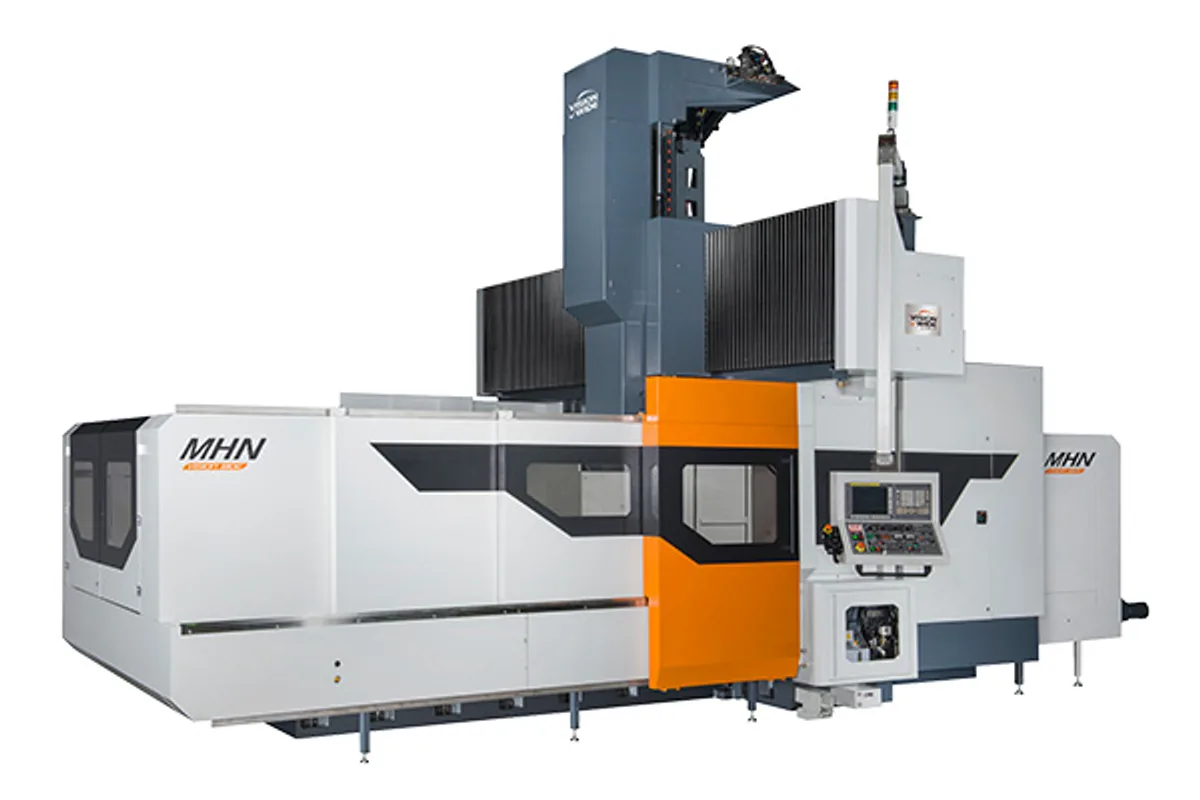

Vision Wide MHN-4040 / MHN-4047
Image: visionwide-tech.com, Vision Wide
Key Specifications
Table Size
x axis travel
y axis travel
z axis travel box way single ballscrew
z axis travel linear way enclosed box ram dual ballscrews
max table load
How much does the Vision Wide MHN-4040 / MHN-4047 cost?
Price estimate
We do not have a price for the Vision Wide MHN-4040 / MHN-4047 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Short lever arms are the theme of the Vision Wide MHN-4040 / MHN-4047. Vision Wide says the minimum distance between the spindle center and the Z-axis roller way shortens the cutting lever arm and significantly improves cutting rigidity.
The lever arm in question is the overhang of the spindle in front of the guides that hold the ram. Every newton at the cutter is multiplied by that distance into a moment the guides must resist. Halve the overhang and the same guides see half the moment, so the tool deflects less and chatter starts later. On a machine this wide the head is already far from the columns, and keeping the spindle tight to its own ways is one of the few places left to gain stiffness.
This pair is nearly square in plan. X travel is 4,100 mm (161.4 in). Y travel is 4,000 mm (157.5 in) on the MHN-4040 and 4,700 mm (185.0 in) on the MHN-4047. The table measures 4,000×3,500 mm (157.5×137.8 in) and carries 20,000 kg (44,092 lb).
The standard spindle is a box way 4,000rpm 2-step gear type with 22/26 kW (29.5/34.9 hp). X/Y rapid is 10 m/min. The HF-4040 / HF-4047 is the five-face machining center on the same figures.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,100 mm (161.4 in) |
| Y Axis Travel | 4,000/ 4,700 mm (157.5/ 185.0 in) |
| Z Axis Travel Box Way Single Ballscrew | 920 / 1,020 mm (36.2 / 40.2 in)(Opt.) |
| Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews | 1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.) |
| Table Size | 4,000×3,500 mm (157.5×137.8 in) |
| Max Table Load | 20,000 kg (44,092 lb) |
| Spindle Power Cont 30 Min | 22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.) |
| Spindle Speed Box Way 2 Step Gear | 4,000 / 6,000 rpm(Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear | 4,000 / 6,000 rpm(Opt.) |
| Spindle Speed Linear Way Enclosed Box Ram Direct Driven | 10,000 rpm(Opt.) |
| Cutting Feed Rate | 1-7,000 mm/min |
| Rapid Traverse Xy | 10 m/min |
| Rapid Traverse Z Box Way or Linear Way | 15 m/min |
| Rapid Traverse Z Enclosed Box Ram | 12 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Minimum distance between spindle center and Z-axis roller way
- Near-square 4,000×3,500 mm (157.5×137.8 in) table
- Y travel of 4,000 mm (157.5 in) or 4,700 mm (185.0 in)
- 20,000 kg (44,092 lb) table load
Limitations
- No stiffness figure accompanies the lever-arm claim
- X/Y rapid of 10 m/min on both horizontal axes
- Load rating no higher than on the narrower MHN-4035
Best For
Frequently Asked Questions
01
That the distance between the spindle center and the Z-axis roller way is kept to a minimum, which shortens the cutting lever arm and significantly improves cutting rigidity. No dimension is given.
02
X is 4,100 mm (161.4 in). Y is 4,000/ 4,700 mm (157.5/ 185.0 in) for the MHN-4040 and MHN-4047. Z is 920 mm on the standard box way head.
03
4,000×3,500 mm (157.5×137.8 in), rated for 20,000 kg (44,092 lb). The MHN-4035 has a 4,000×3,000 mm (157.5×118.1 in) table with the same load.
04
The HF-4040, which lists the same travels, the same 4,000×3,500 mm (157.5×137.8 in) table and 20,000 kg (44,092 lb), with tool changer rows in its table.
